Kumertau Kamov Rotorfly / RI 30 Eaglet helicopter

Choose unit system:

Specifications Comment this helicopter

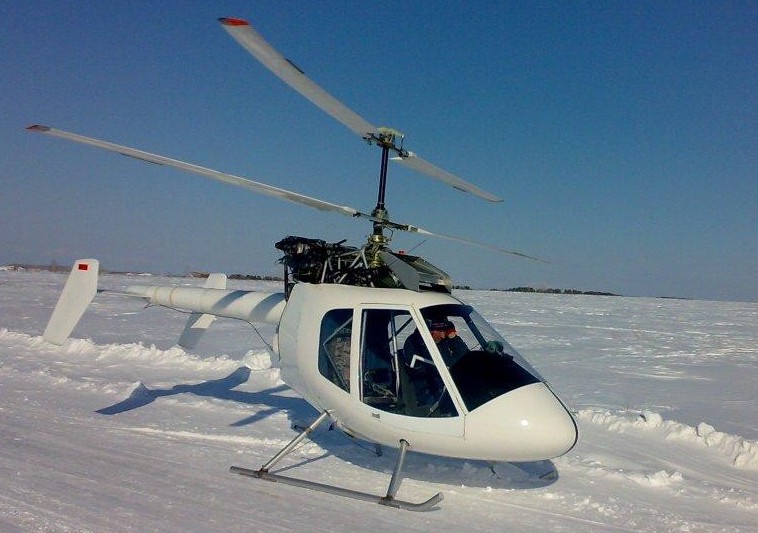

Picture Rotorfly
General
Manufacturer Kumertau Kamov
Type Rotorfly / RI 30 Eaglet
Introduced 2/1/2008
In production? Yes
Units produced 10
Price US $ 0.00
Dimensions
Overall Length 17.39 ft
Length 0 ft
Height 8.53 ft
Width 5.25 ft


Description The Russian Victor Hribkov was the original designer of the Kumertau Rotorfly, with Kumertau being the name of the aero club he joined as a delta flyer before he became more interested in helicopters. The development process took place in the first half of the 2000s, and the goal was to produce an ultra light, kit build helicopter.

The machine was presented to the public for the first time at the Moscow Air Show in 2005. Unfortunately, selling the helicopter proved to be difficult because it had to be built by the buyer. It was for this reason that a deal was made with Kamov (2008), which now builds the Rotorfly on a custom order basis only and delivers it as ready-to-fly.
Advertisement
Design features
  • Skid type landing gear
  • Pod and boom structure
  • Welded tubes airframe structure
  • Glassfibre fuselage
Description
The Russian Victor Hribkov was the original designer of the Kumertau Rotorfly, with Kumertau being the name of the aero club he joined as a delta flyer before he became more interested in helicopters. The development process took place in the first half of the 2000s, and the goal was to produce an ultra light, kit build helicopter.

The machine was presented to the public for the first time at the Moscow Air Show in 2005. Unfortunately, selling the helicopter proved to be difficult because it had to be built by the buyer. It was for this reason that a deal was made with Kamov (2008), which now builds the Rotorfly on a custom order basis only and delivers it as ready-to-fly.
- Advertisement -
Design features:
  • Skid type landing gear
  • Pod and boom structure
  • Welded tubes airframe structure
  • Glassfibre fuselage
Performance
Persons 2
Max. Range 311 mi
Cruise Speed 87 mph
Max. Speed 106 mph
Max. rate of Climb 0 ft/min
HOGE ceiling 0 ft
Service Ceiling 13123 ft
Gross Weight 1102 lb
Empty Weigt 551 lb
Useful Load 551 lb
Dynamic system
Fuel Capacity 0 gallons
Number of Engines 1
Engine Type Piston
Engine Code Rotax 912ULS
Horse Power 100
Rotorhead Co-axial, hingless blade mount, teetering
Number of rotorblades 2
Rotor Diameter 19.69 ft
Number of tail rotorblades 0
Tailrotor Diameter 0 ft
Blueprints & model
Manufacturer Website manufacturer..
