Enstrom F-28F Falcon helicopter

- Advertisement -
Choose unit system:

Specifications Comment this helicopter

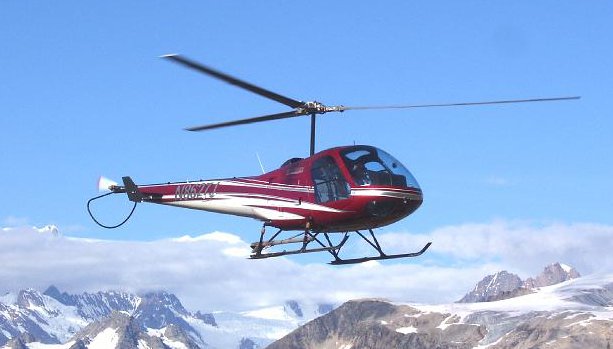

Picture F-28F_Falcon
General
Manufacturer Enstrom
Type F-28F Falcon
Introduced 4/1/1965
In production? Yes
Units produced 1200
Price US $ 450,000.00
Dimensions
Overall Length 29.3 ft
Length 28.1 ft
Height 9 ft
Width 5.1 ft


Description The F-28F is a light, three-seater helicopter with a piston engine and uses a three-bladed, high inertia rotor system. Unusual is the turbocharged engine, which gives the F-28F good high altitude performance. The Enstrom models do not use hydraulic controls. The F-28F was certified in 1980 (the F-28F is ultimately derived from the F28 that was first certified in 1965).

The F-28 line of helicopter products proved to be a huge commercial success, with more than 1200 units sold. Since 2013, Enstrom has been owned by a Chinese investment company.
Advertisement
Design features
  • Throttle correlator
  • Tubular metal tail rotor protector
  • High inertia rotor system
  • Control rods pass inside tubular rotor shaft to swashplate inside fuselage
  • Mechanical controls
  • Glass fibre fuselage and light alloy cabin section
Description
The F-28F is a light, three-seater helicopter with a piston engine and uses a three-bladed, high inertia rotor system. Unusual is the turbocharged engine, which gives the F-28F good high altitude performance. The Enstrom models do not use hydraulic controls. The F-28F was certified in 1980 (the F-28F is ultimately derived from the F28 that was first certified in 1965).

The F-28 line of helicopter products proved to be a huge commercial success, with more than 1200 units sold. Since 2013, Enstrom has been owned by a Chinese investment company.
- Advertisement -
Design features:
  • Throttle correlator
  • Tubular metal tail rotor protector
  • High inertia rotor system
  • Control rods pass inside tubular rotor shaft to swashplate inside fuselage
  • Mechanical controls
  • Glass fibre fuselage and light alloy cabin section
Performance
Persons 3
Max. Range 263 mi
Cruise Speed 87 mph
Max. Speed 85 mph
Max. rate of Climb 1150 ft/min
HOGE ceiling 8700 ft
Service Ceiling 12000 ft
Gross Weight 2600 lb
Empty Weigt 1640 lb
Useful Load 960 lb
Dynamic system
Fuel Capacity 40 gallons
Number of Engines 1
Engine Type Piston, turbo charged
Engine Code Lycoming HIO-360-F1AD
Horse Power 225
Rotorhead Fully articulated
Number of rotorblades 3
Rotor Diameter 32 ft
Number of tail rotorblades 2
Tailrotor Diameter 4.7 ft

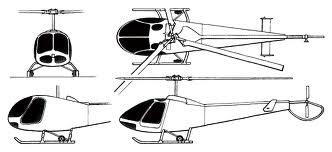

Blueprints & model
Manufacturer Website manufacturer..
