Aeris Naviter AN-2 helicopter

- Advertisement -
Choose unit system:

Specifications Comment this helicopter

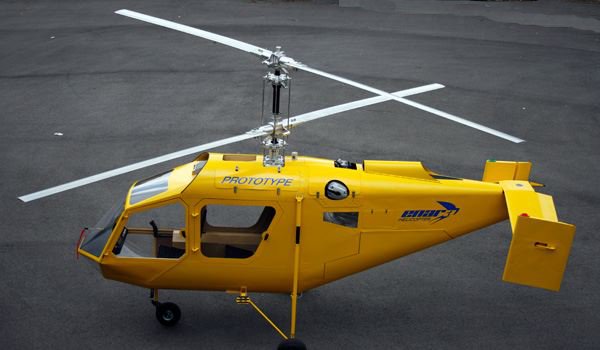

Picture AN-2
General
Manufacturer Aeris Naviter
Type AN-2
Introduced 1/1/2011
In production? Yes
Units produced 0
Price US $ 130,000.00
Dimensions
Overall Length 0 ft
Length 17.3 ft
Height 11.3 ft
Width 2.6 ft


Description Aeris Naviter develops rotor dynamic technologies and is a provider of aeronautical services in a mostly B2B market. One of the company’s developments is the AN-2 two-seater tandem helicopter. A prototype was on show at the Paris Air Show in June 2009. This coaxial helicopter is targeted at both the experimental kit-build helicopter market and as a ready-to-fly machine under the European VLR class of certified helicopters.

At the time of writing (2013), the machine is not certified, while the kit-build version is likewise unavailable. There is also no indication that the prototype has ever been flown
Advertisement
Design features
  • Tricycle landing gear
  • Aluminum sheet fuselage
  • Two seater tandem configuration
  • Tailboom with H-tail
Description
Aeris Naviter develops rotor dynamic technologies and is a provider of aeronautical services in a mostly B2B market. One of the company’s developments is the AN-2 two-seater tandem helicopter. A prototype was on show at the Paris Air Show in June 2009. This coaxial helicopter is targeted at both the experimental kit-build helicopter market and as a ready-to-fly machine under the European VLR class of certified helicopters.

At the time of writing (2013), the machine is not certified, while the kit-build version is likewise unavailable. There is also no indication that the prototype has ever been flown
- Advertisement -
Design features:
  • Tricycle landing gear
  • Aluminum sheet fuselage
  • Two seater tandem configuration
  • Tailboom with H-tail
Performance
Persons 2
Max. Range 466 mi
Cruise Speed 93 mph
Max. Speed 105 mph
Max. rate of Climb 0 ft/min
HOGE ceiling 0 ft
Service Ceiling 15000 ft
Gross Weight 1320 lb
Empty Weigt 860 lb
Useful Load 460 lb
Dynamic system
Fuel Capacity 0 gallons
Number of Engines 1
Engine Type Piston
Engine Code Lycoming IO 233 LSA
Horse Power 115
Rotorhead Fully articulated coaxial
Number of rotorblades 4
Rotor Diameter 22.9 ft
Number of tail rotorblades 0
Tailrotor Diameter 0 ft
Blueprints & model
Manufacturer Website manufacturer..
- Advertisements -



2 Comments

ItemInfoText
1  Name Gabriel Sicam

Tuesday, April 29, 2014 8:24 PM

what is the latest development AN-2?
2  helistartgz

Sunday, May 4, 2014 10:16 AM

As stated in the text, there seems to be no activity anymore around the AN-2 development. But you can always try contacting the manufacturer.
