Adams-Wilson A/W 95 helicopter

- Advertisement -
Choose unit system:

Specifications Comment this helicopter

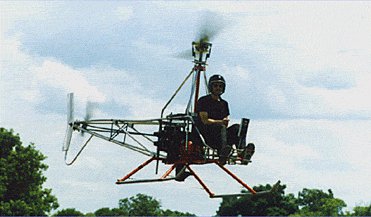

Picture AW95
General
Manufacturer Adams-Wilson
Type A/W 95
Introduced 1/1/1965
In production?
Units produced 0
Price US $ 10,000.00
Dimensions
Overall Length 0 ft
Length 15 ft
Height 6.43 ft
Width 5.74 ft


Description The AW95 is an improved design of the Adams-Wilson Hobbycopter, which goes back to the late 1950s when T.G. Adams and P. Wilson designed and built a prototype of the XH-1 Hobbycopter. The idea was not to sell helicopters, but only their designs, with all of the manufacturing and assembly being the responsibility of the buyer. The same is still true for the AW95 today. This is probably the cheapest way to build a helicopter.

In the new design, the swash plate and skid landing gear were improved to simplify the building process, and obsolete components and materials were replaced by newer ones. The rotor blades are a design of A/B Helicopters’.

The A/W95, and therefore the Adams-Wilson Hobbycopter, is based on an all open-welded tube framework, making it a very basic helicopter indeed.
Advertisement
Design features
  • Welded steel tube air frame
  • Aluminum rotor blades and tailboom
Description
The AW95 is an improved design of the Adams-Wilson Hobbycopter, which goes back to the late 1950s when T.G. Adams and P. Wilson designed and built a prototype of the XH-1 Hobbycopter. The idea was not to sell helicopters, but only their designs, with all of the manufacturing and assembly being the responsibility of the buyer. The same is still true for the AW95 today. This is probably the cheapest way to build a helicopter.

In the new design, the swash plate and skid landing gear were improved to simplify the building process, and obsolete components and materials were replaced by newer ones. The rotor blades are a design of A/B Helicopters’.

The A/W95, and therefore the Adams-Wilson Hobbycopter, is based on an all open-welded tube framework, making it a very basic helicopter indeed.
- Advertisement -
Design features:
  • Welded steel tube air frame
  • Aluminum rotor blades and tailboom
Performance
Persons 1
Max. Range 60 mi
Cruise Speed 60 mph
Max. Speed 0 mph
Max. rate of Climb 0 ft/min
HOGE ceiling 0 ft
Service Ceiling 10500 ft
Gross Weight 490 lb
Empty Weigt 272 lb
Useful Load 225 lb
Dynamic system
Fuel Capacity 4 gallons
Number of Engines 1
Engine Type Piston, caburetor
Engine Code Rotax 503
Horse Power 52
Rotorhead Teetering
Number of rotorblades 2
Rotor Diameter 19.45 ft
Number of tail rotorblades 2
Tailrotor Diameter 3.35 ft
Blueprints & model
Manufacturer Website manufacturer..
