Underslung Rotor Design

- Advertisement -

When a blade flaps up and down, it also must increase and decrease its speed in order to preserve angular momentum. This momentum depends upon both angular speed and the blade's CM (Centre of Mass). As we know, in order to facilitate the increase and decrease in blade speed, a lead/lag hinge is used.

A way of avoiding this lead/lag hinge is to design a rotorhead that doesn't change the CM when a blade flaps up or down. In this way, the angular momentum doesn't change, so the blades will not increase or decrease their angular velocity. In these circumstances, we don't have to use lead/lag hinges.

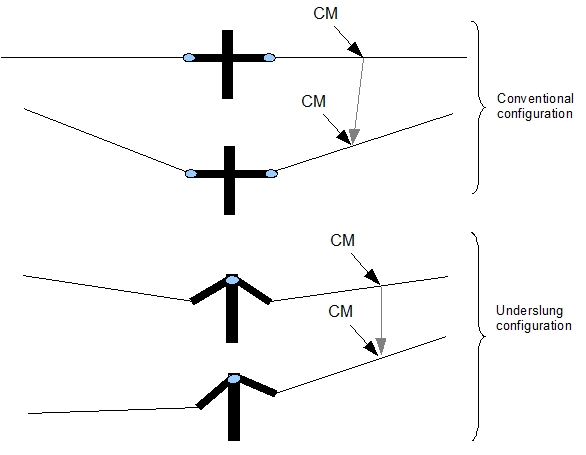

The next figure sets out the basic idea.

Underslung rotorheads are built as teetering heads using a gimbal. In this way, the rotordisc can tilt in any direction. Accordingly, this type of rotorhead doesn't suffer from the Hookes' joint effect, and again, there is no need for lead/lag hinges.

   Next topic > Dragging Dynamics
