Winner B150 helicopter

- Advertisement -
Choose unit system:

Specifications Comment this helicopter

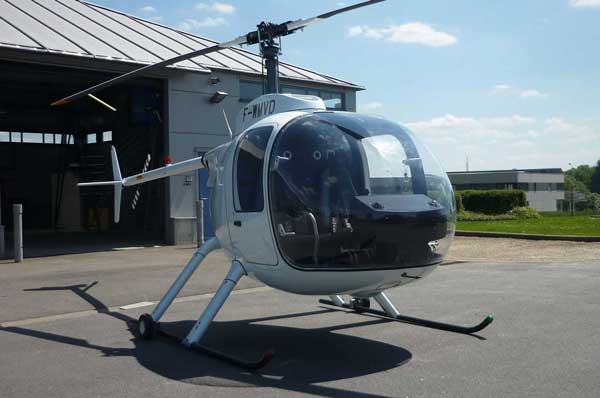

Picture B150
General
Manufacturer Winner
Type B150
Introduced 5/1/2014
In production? No
Units produced 0
Price US $ 132,000.00
Dimensions
Overall Length 30 ft
Length 0 ft
Height 0 ft
Width 0 ft


Description Since 2006, the company Winner SCS has focused on the design and development of an "approved amateur-build" helicopter with two seats, a two-blade main rotor and a turbine engine. It is now supplied in a ready-to-fly version.

Strategic partnerships have been set up with the "Aero-Thermo-Meca" department of the University of Brussels (ULB), and a European consortium of 39 companies has been established (www.esposa-project.eu) to develop a new generation turbine designed to equip helicopters like that referred to above. The coordinator of this project is the company PBS, and Winner has been chosen to test the new turbine.

The niche markets targeted are the CNSK certification in France, the BCAR in England and the experimental market for the rest of the world. Two versions of the helicopter are being used for this purpose: the current one, the B150 with a 160shp turbine engine, and the future one, the B200 with a 250shp turbine that is limited to 200shp according to some local authorities.
Advertisement
Design features
  • Steel tube frame
  • Composites fuselage
  • Aluminium skids, tailboom and rotor hub
Description
Since 2006, the company Winner SCS has focused on the design and development of an "approved amateur-build" helicopter with two seats, a two-blade main rotor and a turbine engine. It is now supplied in a ready-to-fly version.

Strategic partnerships have been set up with the "Aero-Thermo-Meca" department of the University of Brussels (ULB), and a European consortium of 39 companies has been established (www.esposa-project.eu) to develop a new generation turbine designed to equip helicopters like that referred to above. The coordinator of this project is the company PBS, and Winner has been chosen to test the new turbine.

The niche markets targeted are the CNSK certification in France, the BCAR in England and the experimental market for the rest of the world. Two versions of the helicopter are being used for this purpose: the current one, the B150 with a 160shp turbine engine, and the future one, the B200 with a 250shp turbine that is limited to 200shp according to some local authorities.
- Advertisement -
Design features:
  • Steel tube frame
  • Composites fuselage
  • Aluminium skids, tailboom and rotor hub
Performance
Persons 2
Max. Range 312 mi
Cruise Speed 104 mph
Max. Speed 117 mph
Max. rate of Climb 1200 ft/min
HOGE ceiling 0 ft
Service Ceiling 0 ft
Gross Weight 1543 lb
Empty Weigt 882 lb
Useful Load 661 lb
Dynamic system
Fuel Capacity 43 gallons
Number of Engines 1
Engine Type Turbine
Engine Code Solar T62T-32
Horse Power 160
Rotorhead Teetering
Number of rotorblades 2
Rotor Diameter 25 ft
Number of tail rotorblades 2
Tailrotor Diameter 3.61 ft
Blueprints & model
Manufacturer Website manufacturer..
