Westland Super Lynx 300 helicopter

- Advertisement -
Choose unit system:

Specifications Comment this helicopter

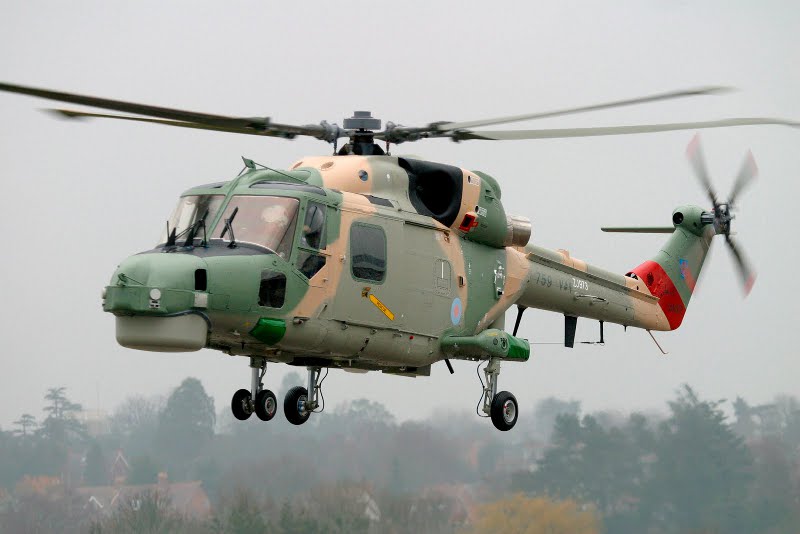

Picture Super_Lynx_300
General
Manufacturer Westland
Type Super Lynx 300
Introduced 8/1/2004
In production? Yes
Units produced 0
Price US $ 0.00
Dimensions
Overall Length 50 ft
Length 43.7 ft
Height 12 ft
Width 0 ft


Description

The Super Lynx 300 (aka WG-13) is a multi-purpose military helicopter manufactured by AgustaWestland.

The Super Lynx is a variant of the famous Westland Lynx, which first took flight in 1971 and was introduced in 1978.

The original Lynx is a rather famous helicopter. It’s the first ever fully aerobatic helicopter and a specially modified Lynx even set a world airspeed record for helicopters in 1986. That’s a record it still holds today, since compound helicopters that use additional propulsion are not counted towards the same record.

The current version is of course the Super Lynx 300. This twin-engine helicopter uses two LHTEC CTS800 engines. Specifically the CTS800-4N which produces 1 362 shaft horsepower.

Interestingly, this engine was originally developed for the cancelled RAH-66 Comanche stealth helicopter, but has found its way into a number of other aircraft, including the successor to the Super Lynx 300.

The Super Lynx 300 also received brand new avionics and a modern cockpit redesign which comes from the Westland EH101.

The Super Lynx continues the popularity globally of the original model. It’s operational in fifteen nations globally. This includes Malaysia, Thailand, Oman, and a significant number for the South African air force.

The Lynx is set to be replaced by a new model that was originally referred to as the Future Lynx or Lynx Wildcat. The final official designation for the new helicopter is the AW159 Wildcat, which was introduced in 2014 and is set to be delivered to customers soon.

Advertisement
Design features
  • Composite rotor blades
  • Composite & light allow airframe
  • Tricyle, non-retractable, landing-gear
  • 360° radar
  • Glass cockpit
Description

The Super Lynx 300 (aka WG-13) is a multi-purpose military helicopter manufactured by AgustaWestland.

The Super Lynx is a variant of the famous Westland Lynx, which first took flight in 1971 and was introduced in 1978.

The original Lynx is a rather famous helicopter. It’s the first ever fully aerobatic helicopter and a specially modified Lynx even set a world airspeed record for helicopters in 1986. That’s a record it still holds today, since compound helicopters that use additional propulsion are not counted towards the same record.

The current version is of course the Super Lynx 300. This twin-engine helicopter uses two LHTEC CTS800 engines. Specifically the CTS800-4N which produces 1 362 shaft horsepower.

Interestingly, this engine was originally developed for the cancelled RAH-66 Comanche stealth helicopter, but has found its way into a number of other aircraft, including the successor to the Super Lynx 300.

The Super Lynx 300 also received brand new avionics and a modern cockpit redesign which comes from the Westland EH101.

The Super Lynx continues the popularity globally of the original model. It’s operational in fifteen nations globally. This includes Malaysia, Thailand, Oman, and a significant number for the South African air force.

The Lynx is set to be replaced by a new model that was originally referred to as the Future Lynx or Lynx Wildcat. The final official designation for the new helicopter is the AW159 Wildcat, which was introduced in 2014 and is set to be delivered to customers soon.

- Advertisement -
Design features:
  • Composite rotor blades
  • Composite & light allow airframe
  • Tricyle, non-retractable, landing-gear
  • 360° radar
  • Glass cockpit
Performance
Persons 8
Max. Range 350 mi
Cruise Speed 152 mph
Max. Speed 201 mph
Max. rate of Climb 2000 ft/min
HOGE ceiling 6229 ft
Service Ceiling 15000 ft
Gross Weight 11750 lb
Empty Weigt 7255 lb
Useful Load 4495 lb
Dynamic system
Fuel Capacity 463 gallons
Number of Engines 2
Engine Type Turbine
Engine Code LHTEC CTS800-4N
Horse Power 1361
Rotorhead Semi rigid
Number of rotorblades 4
Rotor Diameter 42 ft
Number of tail rotorblades 4
Tailrotor Diameter 7.7 ft

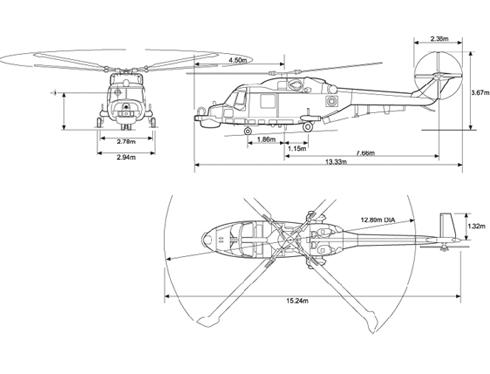

Blueprints & model
Manufacturer Website manufacturer..
