Sud Aviation SA3200 Frelon helicopter

- Advertisement -
Choose unit system:

Specifications Comment this helicopter

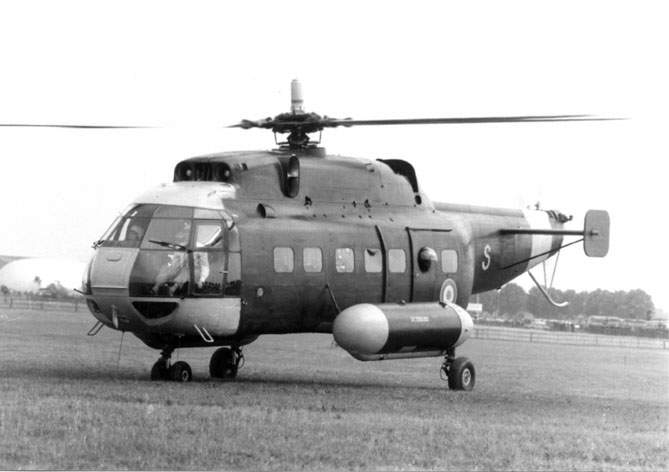

Picture SA3200_Frelon
General
Manufacturer Sud Aviation
Type SA3200 Frelon
Introduced 6/10/1959
In production? No
Units produced 1
Price US $ 0.00
Dimensions
Overall Length 48.9 ft
Length 0 ft
Height 15.4 ft
Width 17.1 ft


Description The AS3200 is a 3 turbine, medium lift, multipurpose helicopter. It went never into production.
Advertisement
Design features
  • Variable-incidence tail control surface
  • Tricycle landing gear
  • The complete tail unit hinges to starboard to allow direct loading of freight into the cabin
  • External fuel tank at both sites of the fuselage
  • Fully powered hydraulic control
Description
The AS3200 is a 3 turbine, medium lift, multipurpose helicopter. It went never into production.
- Advertisement -
Design features:
  • Variable-incidence tail control surface
  • Tricycle landing gear
  • The complete tail unit hinges to starboard to allow direct loading of freight into the cabin
  • External fuel tank at both sites of the fuselage
  • Fully powered hydraulic control
Performance
Persons 24
Max. Range 808 mi
Cruise Speed 150 mph
Max. Speed 168 mph
Max. rate of Climb 0 ft/min
HOGE ceiling 0 ft
Service Ceiling 9850 ft
Gross Weight 17637 lb
Empty Weigt 9920 lb
Useful Load 7717 lb
Dynamic system
Fuel Capacity 0 gallons
Number of Engines 3
Engine Type Turbine
Engine Code Turbomeca Turmo IIIB
Horse Power 800
Rotorhead Fully articulated
Number of rotorblades 4
Rotor Diameter 49.2 ft
Number of tail rotorblades 4
Tailrotor Diameter 0 ft

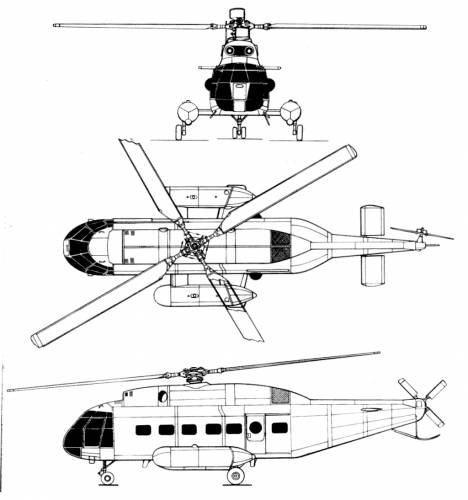

Blueprints & model
Manufacturer Website manufacturer..
