Sikorsky VS-300 helicopter

- Advertisement -
Choose unit system:

Specifications Comment this helicopter

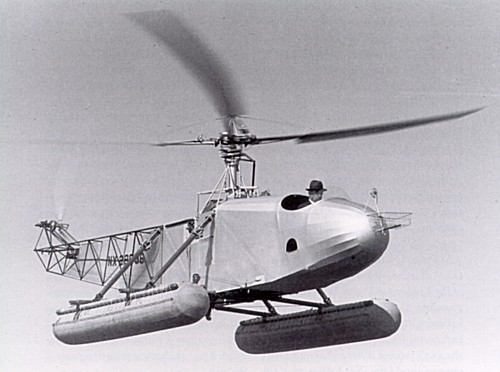

Picture VS-300
General
Manufacturer Sikorsky
Type VS-300
Introduced 5/13/1940
In production? No
Units produced 1
Price US $ 0.00
Dimensions
Overall Length 0 ft
Length 28 ft
Height 10 ft
Width 0 ft


Description

The Vought-Sikorsky VS-300 (aka the S-46) is a historically sginificant single-engine experimental helicopter.

The VS-300 is widely accepted as the first viable American helicopter design. It’s also the first in the world to use a single engine. The previous successul single-lifting rotor prototype, the TsAGI-1EA, made use of two engines and was of Russian origin.

The VS-300 made a tethered flight in 1938 and a free flight in 1939. The VS-300 pioneered the single anti-torque tail rotor design we all know today. The TsAGI-1EA in contrast had double-sided anti-torque rotors on both the nose and tail.

The prototype intially had a 75 horsepower (56 kilowatt) engine, but later a 90 horsepower (67 kilowatt) Franklin 4AC-199-E engine was used. The final VS-300 power plant was a 150 horsepower (112 kilowatt) Franklin engine.

The airframe of the VS-300 consisted of a tubular welded framework. The cyclic control system of the VS-300 was initially similar to modern helicopter design, but Sikorsky found that it didn’t perform well. The cyclic of the main rotor was then locked and two small side-mounted auxilliary rotors were installed on the tail boom to handle that aspect of movement. As the problem of main-rotor cyclic control was solved, these small rotors were later removed.

Given its status as an early helicopter, the performance of the VS-300 is impressive. It could fly at 80 kilometers per hour, cover 121 kilometers of terrain and endure 90 minutes of flight. It truly was a practical aircraft and was even viable for cargo movement.

The VS-300 is also notable for being the first practical amphibious helicopter, after Sikorsky equipped it with float pontoons and successfully landed and took of from a water surface in 1941.

The prototype was retired in 1943 and to this day remains in the Henry Ford Museum in Dearborn Michigan.

Advertisement
Design features
  • Welded steel tube fuselage structure
  • Fabric-covered fuselage
  • Wheel based landing gear
  • Single main and tailrotor configuration
  • Fully effective cyclic control
Description

The Vought-Sikorsky VS-300 (aka the S-46) is a historically sginificant single-engine experimental helicopter.

The VS-300 is widely accepted as the first viable American helicopter design. It’s also the first in the world to use a single engine. The previous successul single-lifting rotor prototype, the TsAGI-1EA, made use of two engines and was of Russian origin.

The VS-300 made a tethered flight in 1938 and a free flight in 1939. The VS-300 pioneered the single anti-torque tail rotor design we all know today. The TsAGI-1EA in contrast had double-sided anti-torque rotors on both the nose and tail.

The prototype intially had a 75 horsepower (56 kilowatt) engine, but later a 90 horsepower (67 kilowatt) Franklin 4AC-199-E engine was used. The final VS-300 power plant was a 150 horsepower (112 kilowatt) Franklin engine.

The airframe of the VS-300 consisted of a tubular welded framework. The cyclic control system of the VS-300 was initially similar to modern helicopter design, but Sikorsky found that it didn’t perform well. The cyclic of the main rotor was then locked and two small side-mounted auxilliary rotors were installed on the tail boom to handle that aspect of movement. As the problem of main-rotor cyclic control was solved, these small rotors were later removed.

Given its status as an early helicopter, the performance of the VS-300 is impressive. It could fly at 80 kilometers per hour, cover 121 kilometers of terrain and endure 90 minutes of flight. It truly was a practical aircraft and was even viable for cargo movement.

The VS-300 is also notable for being the first practical amphibious helicopter, after Sikorsky equipped it with float pontoons and successfully landed and took of from a water surface in 1941.

The prototype was retired in 1943 and to this day remains in the Henry Ford Museum in Dearborn Michigan.

- Advertisement -
Design features:
  • Welded steel tube fuselage structure
  • Fabric-covered fuselage
  • Wheel based landing gear
  • Single main and tailrotor configuration
  • Fully effective cyclic control
Performance
Persons 1
Max. Range 0 mi
Cruise Speed 0 mph
Max. Speed 60 mph
Max. rate of Climb 0 ft/min
HOGE ceiling 0 ft
Service Ceiling 0 ft
Gross Weight 1150 lb
Empty Weigt 0 lb
Useful Load 0 lb
Dynamic system
Fuel Capacity 0 gallons
Number of Engines 1
Engine Type Piston
Engine Code Franklin 4AC
Horse Power 90
Rotorhead
Number of rotorblades 3
Rotor Diameter 30 ft
Number of tail rotorblades 2
Tailrotor Diameter 0 ft
Blueprints & model
