Sikorsky S-92 A Superhawk helicopter

- Advertisement -
Choose unit system:

Specifications Comment this helicopter

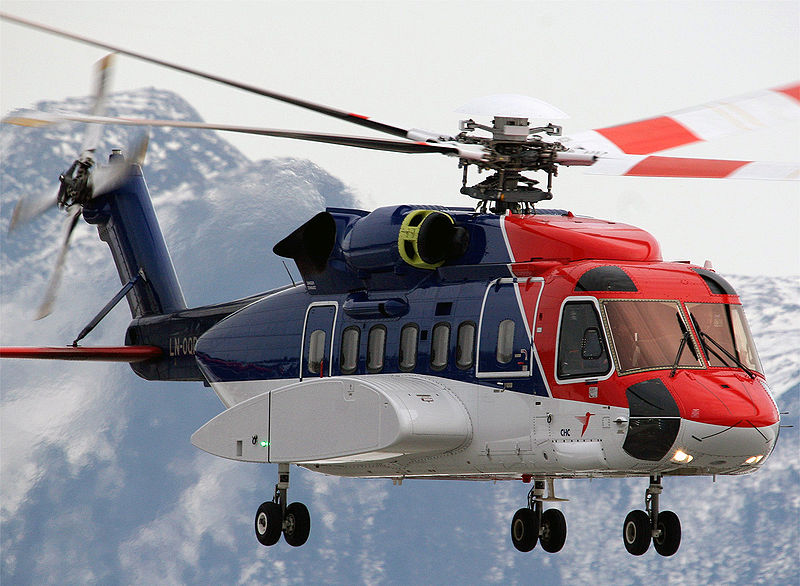

Picture S-92A_Superhawk
General
Manufacturer Sikorsky
Type S-92 A Superhawk
Introduced 1/1/2004
In production? Yes
Units produced 0
Price US $ 23,000,000.00
Dimensions
Overall Length 68.5 ft
Length 56.1 ft
Height 17.9 ft
Width 0 ft


Description

The H-92 Superhawk is a medium-lift helicopter manufactured by the Skiorsky helicopter company. It is the military version of the S-92 civil helicopter.

The S-92 civil helicopter upon which the Superhawk is based was originally developed for offshore oil exploration missions that has become critical following the 1973 oil crisis. The first S-92 mockup was shown off in 1992 and by 1993 the helis were meant to be on sale. Following delays and poor market conditions the first S-92 would only take flight in 1998. Certification in US and EU territories were attained in 2002 and 2004 respectively.

The Superhawk is a modular helicopter and uses both composite material and aluminum in its construction. This military version of the S-92 has uprated twin General Electric CT7-8C engines providing 3070 shaft horsepower each. The other major difference in the military variant is the integration of fly-by-wire technology which the S-92 does not have.

All S-92 variants have been designed from the ground up to emphasize safety. The materials used are highly crack-resistant and include lighting strike and RF pulse protection. The rotor blades have anhydral tips that contribute to the amazing hovering efficiency of the helicopter. These wide chord blades are also equipped with a vibration suppression system. All of this contributes to a very respectable 3 261m hover ceiling.

The Superhawk is considered the true successor to the Black Hawk and Sea Hawk. Its multi-mission design, survivability and sophisticated flight systems mean that it can operate in a modern combat environment in ways that older aircraft are beginning to struggle. Its RF pulse resistance is already a concession to electronic warfare weaponry that is likely to enter the battlefield in the near future and it has superior defenses against modern guided weapons, which means it can enter a combat zone, drop troops and leave where another helicopter would be in danger from these weapons.

So far more than 200 S-92s have been built across all variants. In 2004 the Canadian government ordered 28 H-92 helicopters, but that project has suffered multiple delays.

Advertisement
Design features
  • Flight controls and rotor system taken from model S-70
  • Aluminum airframe with some composite components
  • Titanium rotor head
  • Active vibration control
  • Retractable, energy-absorbing, tricycle landing gear
Description

The H-92 Superhawk is a medium-lift helicopter manufactured by the Skiorsky helicopter company. It is the military version of the S-92 civil helicopter.

The S-92 civil helicopter upon which the Superhawk is based was originally developed for offshore oil exploration missions that has become critical following the 1973 oil crisis. The first S-92 mockup was shown off in 1992 and by 1993 the helis were meant to be on sale. Following delays and poor market conditions the first S-92 would only take flight in 1998. Certification in US and EU territories were attained in 2002 and 2004 respectively.

The Superhawk is a modular helicopter and uses both composite material and aluminum in its construction. This military version of the S-92 has uprated twin General Electric CT7-8C engines providing 3070 shaft horsepower each. The other major difference in the military variant is the integration of fly-by-wire technology which the S-92 does not have.

All S-92 variants have been designed from the ground up to emphasize safety. The materials used are highly crack-resistant and include lighting strike and RF pulse protection. The rotor blades have anhydral tips that contribute to the amazing hovering efficiency of the helicopter. These wide chord blades are also equipped with a vibration suppression system. All of this contributes to a very respectable 3 261m hover ceiling.

The Superhawk is considered the true successor to the Black Hawk and Sea Hawk. Its multi-mission design, survivability and sophisticated flight systems mean that it can operate in a modern combat environment in ways that older aircraft are beginning to struggle. Its RF pulse resistance is already a concession to electronic warfare weaponry that is likely to enter the battlefield in the near future and it has superior defenses against modern guided weapons, which means it can enter a combat zone, drop troops and leave where another helicopter would be in danger from these weapons.

So far more than 200 S-92s have been built across all variants. In 2004 the Canadian government ordered 28 H-92 helicopters, but that project has suffered multiple delays.

- Advertisement -
Design features:
  • Flight controls and rotor system taken from model S-70
  • Aluminum airframe with some composite components
  • Titanium rotor head
  • Active vibration control
  • Retractable, energy-absorbing, tricycle landing gear
Performance
Persons 21
Max. Range 590 mi
Cruise Speed 174 mph
Max. Speed 190 mph
Max. rate of Climb 1600 ft/min
HOGE ceiling 6500 ft
Service Ceiling 14000 ft
Gross Weight 28300 lb
Empty Weigt 15587 lb
Useful Load 12713 lb
Dynamic system
Fuel Capacity 764 gallons
Number of Engines 2
Engine Type Turbine
Engine Code General Electric CT7-8A
Horse Power 2520
Rotorhead Articulated, elastomeric blade retention bearings
Number of rotorblades 4
Rotor Diameter 56.3 ft
Number of tail rotorblades 4
Tailrotor Diameter 11 ft

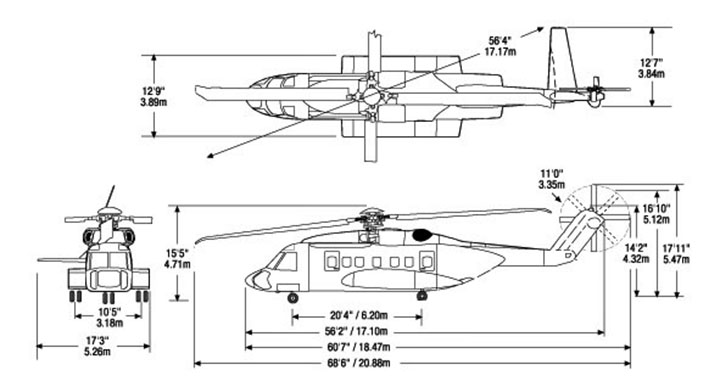

Blueprints & model
Manufacturer Website manufacturer..
