Schweizer 300 CBi helicopter

- Advertisement -
Choose unit system:

Specifications Comment this helicopter

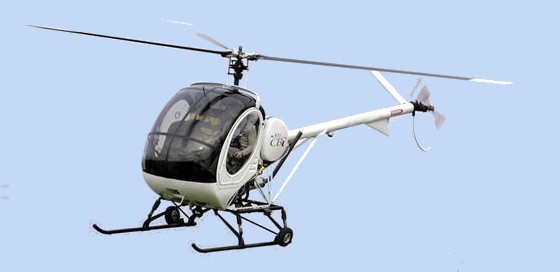

Picture 300CBi
General
Manufacturer Schweizer
Type 300 CBi
Introduced 1/1/2002
In production? Yes
Units produced 0
Price US $ 0.00
Dimensions
Overall Length 30.83 ft
Length 0 ft
Height 8.72 ft
Width 4.25 ft


Description The 300CBi is similar to the 300C model, but is powered by a fuel injection engine, eliminating the problem of carburetor ice. This model is primarily used as a helicopter for flight training.
Advertisement
Design features
  • Shock absorber-dampened, skid landing gear
  • Flight controls directly linked to the control surfaces
  • Fuel injection
  • Overspeed protection
  • Low rotor RPM warning system
Description
The 300CBi is similar to the 300C model, but is powered by a fuel injection engine, eliminating the problem of carburetor ice. This model is primarily used as a helicopter for flight training.
- Advertisement -
Design features:
  • Shock absorber-dampened, skid landing gear
  • Flight controls directly linked to the control surfaces
  • Fuel injection
  • Overspeed protection
  • Low rotor RPM warning system
Performance
Persons 3
Max. Range 259 mi
Cruise Speed 92 mph
Max. Speed 108 mph
Max. rate of Climb 0 ft/min
HOGE ceiling 4800 ft
Service Ceiling 10000 ft
Gross Weight 1750 lb
Empty Weigt 1102 lb
Useful Load 648 lb
Dynamic system
Fuel Capacity 32 gallons
Number of Engines 1
Engine Type Piston, Fuel injected
Engine Code Lycoming HIO-360-G1A
Horse Power 180
Rotorhead Fully articulated, Elastomeric dampers
Number of rotorblades 3
Rotor Diameter 26.83 ft
Number of tail rotorblades 2
Tailrotor Diameter 4.25 ft

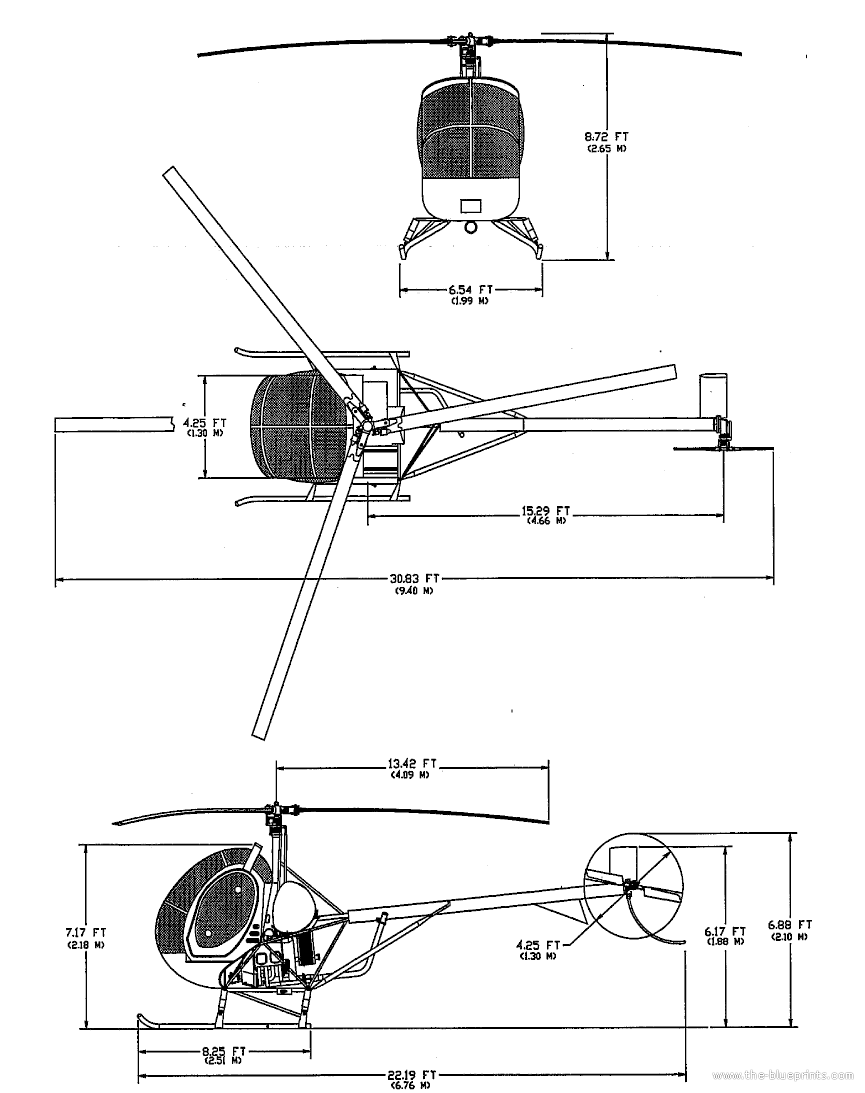

Blueprints & model
Manufacturer Website manufacturer..
