Saunders-Roe P.531 helicopter

- Advertisement -
Choose unit system:

Specifications Comment this helicopter

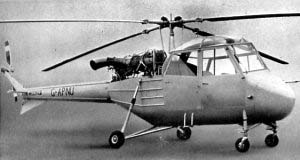

Picture P531
General
Manufacturer Saunders-Roe
Type P.531
Introduced 6/1/1959
In production? No
Units produced 6
Price US $ 0.00
Dimensions
Overall Length 0 ft
Length 29 ft
Height 9.5 ft
Width 0 ft


Description

The Saro (Saunders-Roe) P.531 is a British-made helicopter created by Saunders-Roe limited.

Saro was founded in 1929, but became defunct in 1964. The company merged with Westland, which became the Agusta-Westland company that we know today.

The P.531 began life as an on-paper design in 1957 and in some ways drew upon the knowledge gained in the development of the company’s earlier Skeeter helicopter. Unlike the Skeeter however, the P.531 was a five-seater helicopter as opposed to a two-seater.

While the P.531 was intended as an improved replacement for the Skeeter, the project was canned despite interest from the Indian government. The design did however serve as a basis for the Scout Standard which was used by the Indian Army Air Corps.

The P.531 was all-metal and powered by a Blackburn Turmo 600 gas turbine engine. The Turmo was however a less powerful power plant than the airframe was designed for. If a suitable engine had been fitted it would have increased the payload capacity of the helicopter.

After the initial prototypes were developed, three more P.531s were delivered to the Royal Navy so that they could become familiar with the craft and trial them under real conditions. The Navy decided that they wanted to order 30, but by this time Saro had already been subsumed within Westland and the helicopters that were delivered were known as the Westland Wasp.

Advertisement
Design features
  • Four wheel, non retractable, landing gear
  • Foldable blades
  • Small ventral fin at end of tailboom
  • Fuselage divided into forward section and rear boom
  • Steel tube frame
  • Fuselage riveted from light gauge aluminium-alloy sheet
Description

The Saro (Saunders-Roe) P.531 is a British-made helicopter created by Saunders-Roe limited.

Saro was founded in 1929, but became defunct in 1964. The company merged with Westland, which became the Agusta-Westland company that we know today.

The P.531 began life as an on-paper design in 1957 and in some ways drew upon the knowledge gained in the development of the company’s earlier Skeeter helicopter. Unlike the Skeeter however, the P.531 was a five-seater helicopter as opposed to a two-seater.

While the P.531 was intended as an improved replacement for the Skeeter, the project was canned despite interest from the Indian government. The design did however serve as a basis for the Scout Standard which was used by the Indian Army Air Corps.

The P.531 was all-metal and powered by a Blackburn Turmo 600 gas turbine engine. The Turmo was however a less powerful power plant than the airframe was designed for. If a suitable engine had been fitted it would have increased the payload capacity of the helicopter.

After the initial prototypes were developed, three more P.531s were delivered to the Royal Navy so that they could become familiar with the craft and trial them under real conditions. The Navy decided that they wanted to order 30, but by this time Saro had already been subsumed within Westland and the helicopters that were delivered were known as the Westland Wasp.

- Advertisement -
Design features:
  • Four wheel, non retractable, landing gear
  • Foldable blades
  • Small ventral fin at end of tailboom
  • Fuselage divided into forward section and rear boom
  • Steel tube frame
  • Fuselage riveted from light gauge aluminium-alloy sheet
Performance
Persons 5
Max. Range 242 mi
Cruise Speed 109 mph
Max. Speed 121 mph
Max. rate of Climb 540 ft/min
HOGE ceiling 2300 ft
Service Ceiling 0 ft
Gross Weight 3800 lb
Empty Weigt 2092 lb
Useful Load 1708 lb
Dynamic system
Fuel Capacity 0 gallons
Number of Engines 1
Engine Type Turbine
Engine Code Blackburn-Turbomeca Turmo
Horse Power 325
Rotorhead Fully articulated
Number of rotorblades 4
Rotor Diameter 32.5 ft
Number of tail rotorblades 2
Tailrotor Diameter 0 ft
Blueprints & model
