Sandor Diosi Diora KX165 Icepick helicopter

- Advertisement -
Choose unit system:

Specifications Comment this helicopter

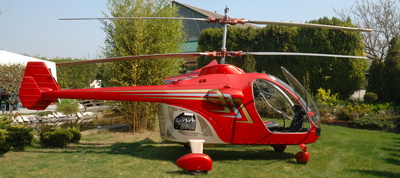

Picture Diora_KX165_Icepick
General
Manufacturer Sandor Diosi
Type Diora KX165 Icepick
Introduced 1/1/2020
In production? Yes
Units produced
Price US $ 0.00
Dimensions
Overall Length 14.7 ft
Length 0 ft
Height 9 ft
Width 2.8 ft


Description

The KX165 is a light coaxial helicopter developed by Mr. Sandor Diosi of Dioferr Ltd.

The helicopter was exhibited in 2009 and was intended to be available for purchase from 2010 onwards.

This single-seater, all metal helicopter is powered by a modified Subaru EJ25i engine, which can output either 165 or 176 horsepower. A two-seater, the KX170 was also announced using the same power plant.

Advertisement
Design features
  • Glassfiber reinforced epoxy resin and NOMEX honeycomb rotor blade construction
  • Fuselage made of composite materials
  • Tricycle non-retractable landing gear
Description

The KX165 is a light coaxial helicopter developed by Mr. Sandor Diosi of Dioferr Ltd.

The helicopter was exhibited in 2009 and was intended to be available for purchase from 2010 onwards.

This single-seater, all metal helicopter is powered by a modified Subaru EJ25i engine, which can output either 165 or 176 horsepower. A two-seater, the KX170 was also announced using the same power plant.

- Advertisement -
Design features:
  • Glassfiber reinforced epoxy resin and NOMEX honeycomb rotor blade construction
  • Fuselage made of composite materials
  • Tricycle non-retractable landing gear
Performance
Persons 1
Max. Range 215 mi
Cruise Speed 93 mph
Max. Speed 118 mph
Max. rate of Climb 1750 ft/min
HOGE ceiling 0 ft
Service Ceiling 13000 ft
Gross Weight 1653 lb
Empty Weigt 1058 lb
Useful Load 595 lb
Dynamic system
Fuel Capacity 18 gallons
Number of Engines 1
Engine Type Piston
Engine Code Ej 25i Subaru
Horse Power 165
Rotorhead Coaxial
Number of rotorblades 4
Rotor Diameter 20.3 ft
Number of tail rotorblades 0
Tailrotor Diameter 0 ft

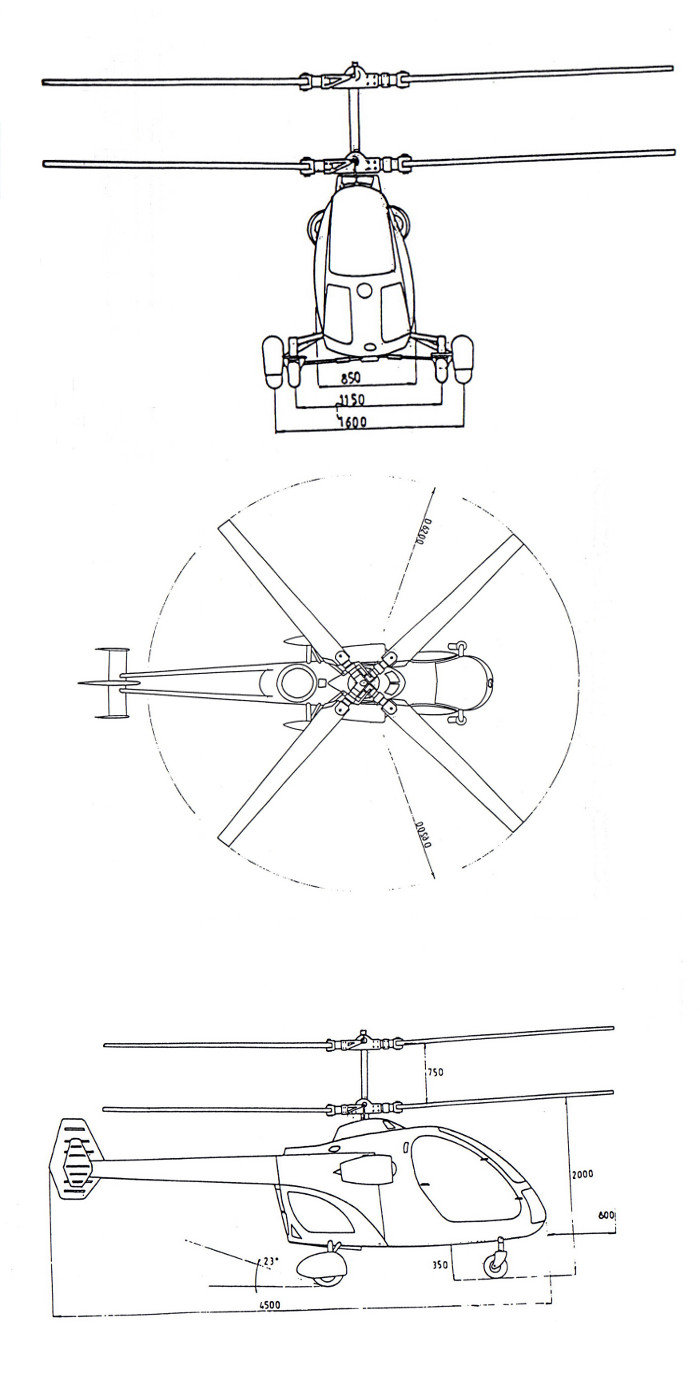

Blueprints & model
Manufacturer Website manufacturer..
