Rotorway A600 Talon helicopter

- Advertisement -
Choose unit system:

Specifications Comment this helicopter

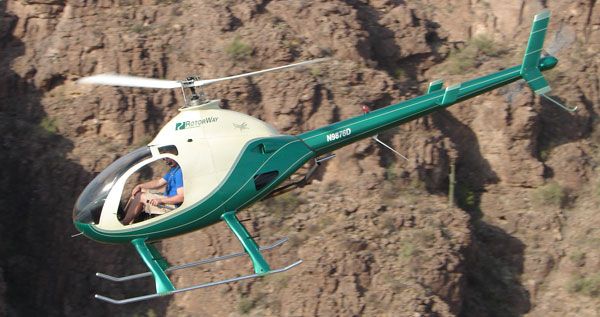

Picture A600_Talon
General
Manufacturer Rotorway
Type A600 Talon
Introduced 1/1/2011
In production? Yes
Units produced 0
Price US $ 97,500.00
Dimensions
Overall Length 29.5 ft
Length 22 ft
Height 8.58 ft
Width 3.67 ft


Description The Talon is a further development of the Rotorway Exec 162F. Following cockpit technology trends, the Talon is equipped with an all glass cockpit. Remarkable is the fact that Rotorway decided to replace the tail rotor belt drive system with a shaft-based one. The main drive system has also been replaced with a heavy duty cog belt. The Talon is only available as a kit helicopter. However, Rotorway is implementing a type certification program for this aircraft. This reveals a new market approach by Rotorway, while the program itself will undoubtedly help to increase the A600 Talon's safety standards.
Advertisement
Design features
  • Shaft driven tail rotor
  • Glass cockpit
  • Redundant FADEC system
  • Larger skid type landing gear
Description
The Talon is a further development of the Rotorway Exec 162F. Following cockpit technology trends, the Talon is equipped with an all glass cockpit. Remarkable is the fact that Rotorway decided to replace the tail rotor belt drive system with a shaft-based one. The main drive system has also been replaced with a heavy duty cog belt. The Talon is only available as a kit helicopter. However, Rotorway is implementing a type certification program for this aircraft. This reveals a new market approach by Rotorway, while the program itself will undoubtedly help to increase the A600 Talon's safety standards.
- Advertisement -
Design features:
  • Shaft driven tail rotor
  • Glass cockpit
  • Redundant FADEC system
  • Larger skid type landing gear
Performance
Persons 2
Max. Range 200 mi
Cruise Speed 100 mph
Max. Speed 115 mph
Max. rate of Climb 1000 ft/min
HOGE ceiling 4000 ft
Service Ceiling 10000 ft
Gross Weight 1500 lb
Empty Weigt 965 lb
Useful Load 535 lb
Dynamic system
Fuel Capacity 17 gallons
Number of Engines 1
Engine Type Piston
Engine Code RI 600N
Horse Power 147
Rotorhead
Number of rotorblades 2
Rotor Diameter 25 ft
Number of tail rotorblades 2
Tailrotor Diameter 4.19 ft
Blueprints & model
Manufacturer Website manufacturer..
