Robinson R44 Raven I helicopter

- Advertisement -
Choose unit system:

Specifications Comment this helicopter

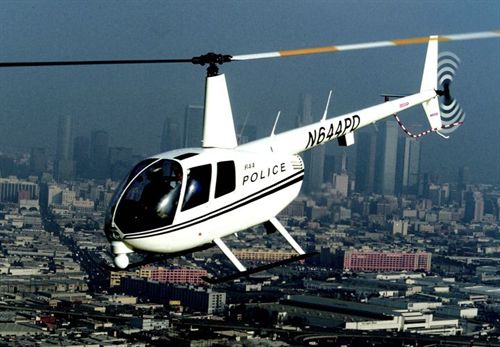

Picture R44_Raven_I
General
Manufacturer Robinson
Type R44 Raven I
Introduced 7/1/2002
In production? Yes
Units produced 5325
Price US $ 425,000.00
Dimensions
Overall Length 38.25 ft
Length 0 ft
Height 10.75 ft
Width 0 ft


Description With the R22, the Robinson Helicopter Company proved that it was able to rewrite market rules with its piston based, two seater, very light helicopter. Key to this achievement was the focus on a low total cost of ownership, which makes the R22 a very economical solution.

In the 19080s, it was only a matter of time before Robinson started on the design of the R22’s successor: the R44 Astro. This is a four seater, piston-based design, and the model is clearly derived from the R22; the fuselage follows the same lines and the rotor concept is also borrowed.

With the R44 line, Robinson introduced a piston engine based helicopter to the four seater market segment which was, at the time, dominated by turbine powered models. Soon, the R44 demonstrated that it was indeed possible to get a turbine performance for the price of a piston helicopter. The company thus again proved to be right in its approach, with more than 5300 R44s sold (2011).
Advertisement
Design features
  • Electronic throttle governor
  • Rotor brake
  • Hydraulic control system
  • Auxiliary fuel system for added versatility and longer range
  • Powerful heater/defogger
Description
With the R22, the Robinson Helicopter Company proved that it was able to rewrite market rules with its piston based, two seater, very light helicopter. Key to this achievement was the focus on a low total cost of ownership, which makes the R22 a very economical solution.

In the 19080s, it was only a matter of time before Robinson started on the design of the R22’s successor: the R44 Astro. This is a four seater, piston-based design, and the model is clearly derived from the R22; the fuselage follows the same lines and the rotor concept is also borrowed.

With the R44 line, Robinson introduced a piston engine based helicopter to the four seater market segment which was, at the time, dominated by turbine powered models. Soon, the R44 demonstrated that it was indeed possible to get a turbine performance for the price of a piston helicopter. The company thus again proved to be right in its approach, with more than 5300 R44s sold (2011).
- Advertisement -
Design features:
  • Electronic throttle governor
  • Rotor brake
  • Hydraulic control system
  • Auxiliary fuel system for added versatility and longer range
  • Powerful heater/defogger
Performance
Persons 4
Max. Range 400 mi
Cruise Speed 130 mph
Max. Speed 0 mph
Max. rate of Climb 1000 ft/min
HOGE ceiling 5100 ft
Service Ceiling 14000 ft
Gross Weight 2400 lb
Empty Weigt 1442 lb
Useful Load 774 lb
Dynamic system
Fuel Capacity 31 gallons
Number of Engines 1
Engine Type Piston, 6 cylinder, carburator
Engine Code Lycoming O-540
Horse Power 225
Rotorhead Teetering hinge and two coning hinges
Number of rotorblades 2
Rotor Diameter 0 ft
Number of tail rotorblades 2
Tailrotor Diameter 0 ft

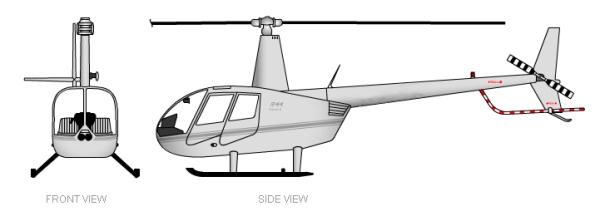

Blueprints & model
Manufacturer Website manufacturer..
