Pescara Coaxial Helicopter helicopter

Choose unit system:

Specifications Comment this helicopter

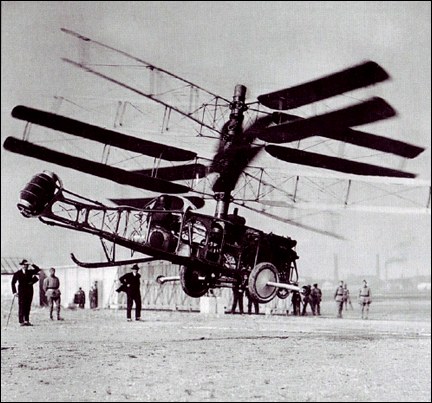

Picture Coaxial_Helicopter
General
Manufacturer Pescara
Type Coaxial Helicopter
Introduced 1/1/1924
In production? No
Units produced 1
Price US $ 0.00
Dimensions
Overall Length 0 ft
Length 0 ft
Height 0 ft
Width 0 ft


Description The first convincing realisation of the concept of cyclic pitch control was seen in helicopter nr. 3 by Pescara. This was a huge machine with a large engine and a total of 16 rotor blades in a coaxial rotor system. Each of the eight rotors was built like a biplane wing. This helicopter demonstrated that it was possible to fly slowly in such a machine. It flew several flights of about 10 minutes in duration and also set a distance record of 2415 feet (736 meters). Pescara's helicopter no. 3 was thus a success.
Advertisement
Design features
  • Bi-plane rotor system
  • 'Totem pole' rotor mast
  • Cyclic and collective pitch by warping the rotor blades
  • Tilting rotorhead
  • Lamblin radiator (cylindrical form) at end of aircraft
Description
The first convincing realisation of the concept of cyclic pitch control was seen in helicopter nr. 3 by Pescara. This was a huge machine with a large engine and a total of 16 rotor blades in a coaxial rotor system. Each of the eight rotors was built like a biplane wing. This helicopter demonstrated that it was possible to fly slowly in such a machine. It flew several flights of about 10 minutes in duration and also set a distance record of 2415 feet (736 meters). Pescara's helicopter no. 3 was thus a success.
- Advertisement -
Design features:
  • Bi-plane rotor system
  • 'Totem pole' rotor mast
  • Cyclic and collective pitch by warping the rotor blades
  • Tilting rotorhead
  • Lamblin radiator (cylindrical form) at end of aircraft
Performance
Persons 1
Max. Range 0 mi
Cruise Speed 8 mph
Max. Speed 8 mph
Max. rate of Climb 0 ft/min
HOGE ceiling 0 ft
Service Ceiling 0 ft
Gross Weight 2205 lb
Empty Weigt 1874 lb
Useful Load 331 lb
Dynamic system
Fuel Capacity 0 gallons
Number of Engines 1
Engine Type Piston
Engine Code Hispano-Suiza
Horse Power 180
Rotorhead Coaxial
Number of rotorblades 4
Rotor Diameter 23.6 ft
Number of tail rotorblades 0
Tailrotor Diameter 0 ft
