PAM Group PAM 100B platform helicopter

Choose unit system:

Specifications Comment this helicopter

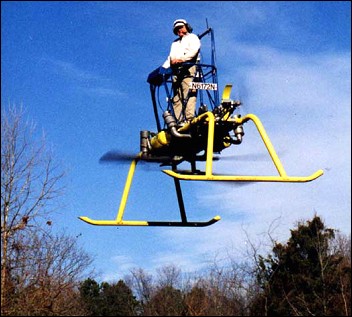

Picture PAM100B_platform
General
Manufacturer PAM Group
Type PAM 100B platform
Introduced 1/1/1994
In production? No
Units produced 0
Price US $ 50,000.00
Dimensions
Overall Length 0 ft
Length 0 ft
Height 8.5 ft
Width 0 ft


Description

There were several attempts in the 20th century to build a flying platform that could carry a man. These received a lot of attention from the military and also appealed to businesses as a way to give everyone their own such device.

The PAM100B, which was developed by the PAM group (Performance Aviation Manufacturing Group) in the 1990s, fits into this category. This machine used counter-rotating rotor blades that were located at the bottom end of a metal frame that carried the pilot/passenger. It was flown by the pilot shifting his/her body weight, which in turn shifted the centre of gravity of the machine, leading to a change in the platform's altitude. Heading was controlled by two small propellers mounted on both sides of the platform.

Reported flying heights and speeds seem to be relatively low (20 feet and 25mph), but these figures meet the expectations of an open flying platform.

The PAM 100B used two engines, with the machine designed to fly on one of them in the event of the total power loss of the other.

From a commercial point of view, the PAM 100B performed no better than all of the other initiatives trying to sell personal VTOL machines: it also met a dead end.

Advertisement
Design features
  • Tubelar main structure
  • Aluminum rotor blades
  • Skid type landing gear
Description

There were several attempts in the 20th century to build a flying platform that could carry a man. These received a lot of attention from the military and also appealed to businesses as a way to give everyone their own such device.

The PAM100B, which was developed by the PAM group (Performance Aviation Manufacturing Group) in the 1990s, fits into this category. This machine used counter-rotating rotor blades that were located at the bottom end of a metal frame that carried the pilot/passenger. It was flown by the pilot shifting his/her body weight, which in turn shifted the centre of gravity of the machine, leading to a change in the platform's altitude. Heading was controlled by two small propellers mounted on both sides of the platform.

Reported flying heights and speeds seem to be relatively low (20 feet and 25mph), but these figures meet the expectations of an open flying platform.

The PAM 100B used two engines, with the machine designed to fly on one of them in the event of the total power loss of the other.

From a commercial point of view, the PAM 100B performed no better than all of the other initiatives trying to sell personal VTOL machines: it also met a dead end.

- Advertisement -
Design features:
  • Tubelar main structure
  • Aluminum rotor blades
  • Skid type landing gear
Performance
Persons 1
Max. Range 25 mi
Cruise Speed 45 mph
Max. Speed 60 mph
Max. rate of Climb 0 ft/min
HOGE ceiling 0 ft
Service Ceiling 6000 ft
Gross Weight 950 lb
Empty Weigt 660 lb
Useful Load 290 lb
Dynamic system
Fuel Capacity 7 gallons
Number of Engines 2
Engine Type Piston, 2 cycle, 4 cylinder
Engine Code Hirth F-30
Horse Power 105
Rotorhead
Number of rotorblades 2
Rotor Diameter 9.17 ft
Number of tail rotorblades 0
Tailrotor Diameter 0 ft

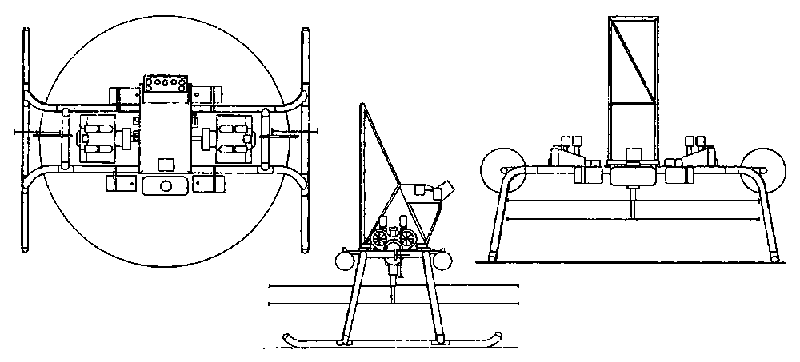

Blueprints & model
Manufacturer Website manufacturer..
