Mil Mi-4 P / Hound helicopter

- Advertisement -
Choose unit system:

Specifications Comment this helicopter

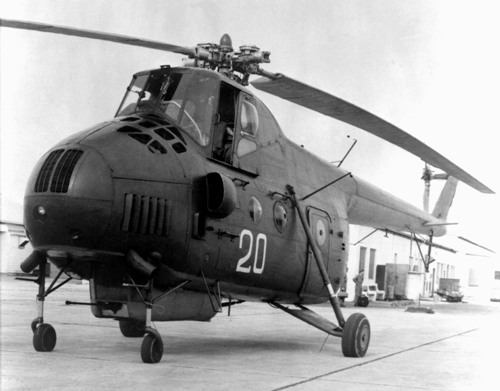

Picture Mi-4P__Hound
General
Manufacturer Mil
Type Mi-4 P / Hound
Introduced 5/1/1952
In production? No
Units produced 3500
Price US $ 0.00
Dimensions
Overall Length 0 ft
Length 82.1 ft
Height 17 ft
Width 0 ft


Description

The Mi-4 (NATO code name 'Hound') is a single-engine, medium lift transport helicopter. Replacing the Mi-1, the design was primarily a reaction to the introduction of the Sikorsky S-55 (H-19 Sickasaw) by the US Army during the Korean War.

The Mi-4 uses exactly the same configuration as the S-55, with its remarkable engine placement in the nose of the machine. Moreover, the fuselage closely resembles the S-55 design. However, the aircraft was not a precise copy, as only the overall layout ideas were taken as a reference point. The engineering of the machine was the company’s own and is consequently Russian in every detail. The Mi-4 is also a lot bigger.

With the Mi-4, the Soviet Union (and the Warsaw Pact countries) laid the foundation for its helicopter force, with more than 3500 units being built. Mil thus demonstrated that it could produce large numbers of very reliable helicopters.

Advertisement
Design features
  • Engine installed in nose
  • Bakelite-ply tail rotor blades
  • Four wheel landing gear
  • Constant-chord all-metal main rotor blades
  • Fuselage is an all-metal semi-monocoque pod and boom structure
Description

The Mi-4 (NATO code name 'Hound') is a single-engine, medium lift transport helicopter. Replacing the Mi-1, the design was primarily a reaction to the introduction of the Sikorsky S-55 (H-19 Sickasaw) by the US Army during the Korean War.

The Mi-4 uses exactly the same configuration as the S-55, with its remarkable engine placement in the nose of the machine. Moreover, the fuselage closely resembles the S-55 design. However, the aircraft was not a precise copy, as only the overall layout ideas were taken as a reference point. The engineering of the machine was the company’s own and is consequently Russian in every detail. The Mi-4 is also a lot bigger.

With the Mi-4, the Soviet Union (and the Warsaw Pact countries) laid the foundation for its helicopter force, with more than 3500 units being built. Mil thus demonstrated that it could produce large numbers of very reliable helicopters.

- Advertisement -
Design features:
  • Engine installed in nose
  • Bakelite-ply tail rotor blades
  • Four wheel landing gear
  • Constant-chord all-metal main rotor blades
  • Fuselage is an all-metal semi-monocoque pod and boom structure
Performance
Persons 13
Max. Range 155 mi
Cruise Speed 99 mph
Max. Speed 115 mph
Max. rate of Climb 0 ft/min
HOGE ceiling 0 ft
Service Ceiling 18045 ft
Gross Weight 17196 lb
Empty Weigt 11833 lb
Useful Load 5363 lb
Dynamic system
Fuel Capacity 0 gallons
Number of Engines 1
Engine Type Piston
Engine Code Schwetsow / Shvetsov ASh-82V (ASh-82W)
Horse Power 1763
Rotorhead Fully articulated
Number of rotorblades 4
Rotor Diameter 68.9 ft
Number of tail rotorblades 3
Tailrotor Diameter 11.8 ft

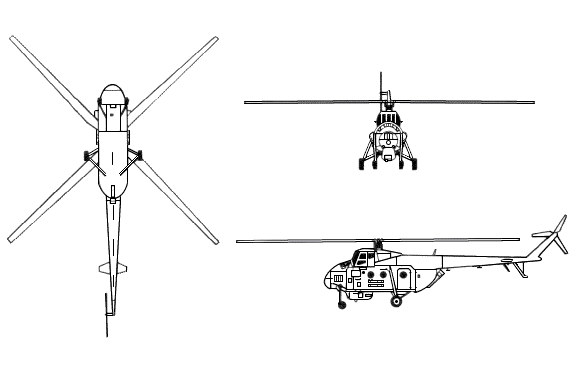

Blueprints & model
Manufacturer Website manufacturer..
