Mil Mi-17 / 171 helicopter

- Advertisement -
Choose unit system:

Specifications Comment this helicopter

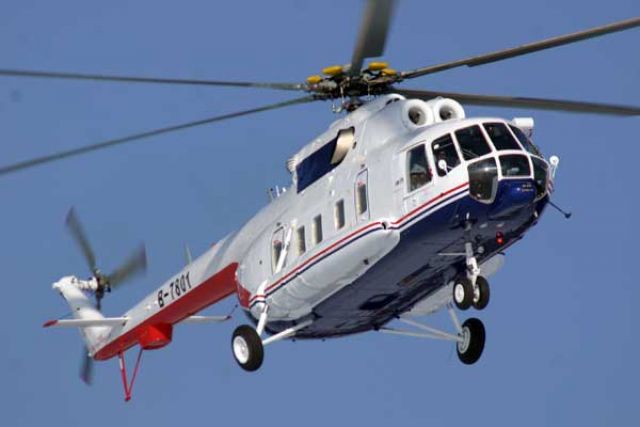

Picture Mi-17__171
General
Manufacturer Mil
Type Mi-17 / 171
Introduced 1/1/1970
In production? Yes
Units produced 12000
Price US $ 11,500,000.00
Dimensions
Overall Length 83 ft
Length 60.6 ft
Height 18.5 ft
Width 0 ft


Description

The Mi-17 is the export version of the Mi-8, and is a twin turbine, medium lift, transport helicopter. In Russia, it is known as the Mi-8M. There are both military and civilian versions. The main differences between the Mi-8 and the Mi-17 are the latter’s more powerful Klimov turbine engines and its use of the Mi-14’s dynamic system.

The Mi-17 is easily distinguished from the Mi-8 by the fact that the tail rotor is mounted on the opposite side (port side).

Advertisement
Design features
  • Based on Mi-8
  • Dynamic system taken from the Mi-14
  • Port side tail rotor
  • Engine intakes with dust shields
Description

The Mi-17 is the export version of the Mi-8, and is a twin turbine, medium lift, transport helicopter. In Russia, it is known as the Mi-8M. There are both military and civilian versions. The main differences between the Mi-8 and the Mi-17 are the latter’s more powerful Klimov turbine engines and its use of the Mi-14’s dynamic system.

The Mi-17 is easily distinguished from the Mi-8 by the fact that the tail rotor is mounted on the opposite side (port side).

- Advertisement -
Design features:
  • Based on Mi-8
  • Dynamic system taken from the Mi-14
  • Port side tail rotor
  • Engine intakes with dust shields
Performance
Persons 33
Max. Range 307 mi
Cruise Speed 143 mph
Max. Speed 155 mph
Max. rate of Climb 1575 ft/min
HOGE ceiling 0 ft
Service Ceiling 16404 ft
Gross Weight 28660 lb
Empty Weigt 15653 lb
Useful Load 13007 lb
Dynamic system
Fuel Capacity 0 gallons
Number of Engines 2
Engine Type Turbine
Engine Code Klimov TW3-117MT / TV3-117MT
Horse Power 1924
Rotorhead Fully articulated
Number of rotorblades 5
Rotor Diameter 69.2 ft
Number of tail rotorblades 3
Tailrotor Diameter 12.8 ft
Blueprints & model
Manufacturer Website manufacturer..
