McDonnell Douglas MD600N helicopter

- Advertisement -
Choose unit system:

Specifications Comment this helicopter

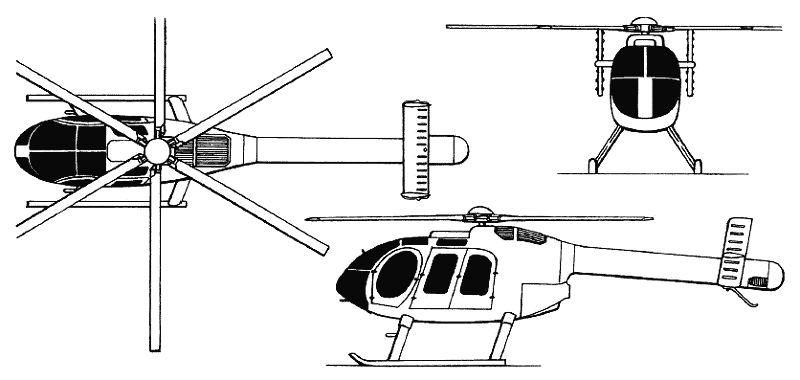

Picture MD600N
General
Manufacturer McDonnell Douglas
Type MD600N
Introduced 5/15/1997
In production? Yes
Units produced 0
Price US $ 1,900,000.00
Dimensions
Overall Length 35.9 ft
Length 29.5 ft
Height 9.3 ft
Width 4.6 ft


Description The MD600N is a lightweight helicopter developed from the MD520N. Similar to its ancestor, it is equipped with a NOTAR anti-torque system (NO TAil Rotor). The main differences are the stretched fuselage to accommodate up to eight people and the longer tail boom.
Advertisement
Design features
  • NOTAR anti torque device
  • Larger fuselage by means of plug aft of cockpit
  • Stretched tailboom
Description
The MD600N is a lightweight helicopter developed from the MD520N. Similar to its ancestor, it is equipped with a NOTAR anti-torque system (NO TAil Rotor). The main differences are the stretched fuselage to accommodate up to eight people and the longer tail boom.
- Advertisement -
Design features:
  • NOTAR anti torque device
  • Larger fuselage by means of plug aft of cockpit
  • Stretched tailboom
Performance
Persons 8
Max. Range 262 mi
Cruise Speed 154 mph
Max. Speed 155 mph
Max. rate of Climb 2100 ft/min
HOGE ceiling 6000 ft
Service Ceiling 20000 ft
Gross Weight 4100 lb
Empty Weigt 2100 lb
Useful Load 2000 lb
Dynamic system
Fuel Capacity 114 gallons
Number of Engines 1
Engine Type Turbine
Engine Code Allison / Rolls-Royce 250-C47M
Horse Power 600
Rotorhead Fully articulated six-blade system
Number of rotorblades 6
Rotor Diameter 27.5 ft
Number of tail rotorblades 0
Tailrotor Diameter 0 ft
Blueprints & model
Manufacturer Website manufacturer..
