McDonnell Douglas MD530F helicopter

- Advertisement -
Choose unit system:

Specifications Comment this helicopter

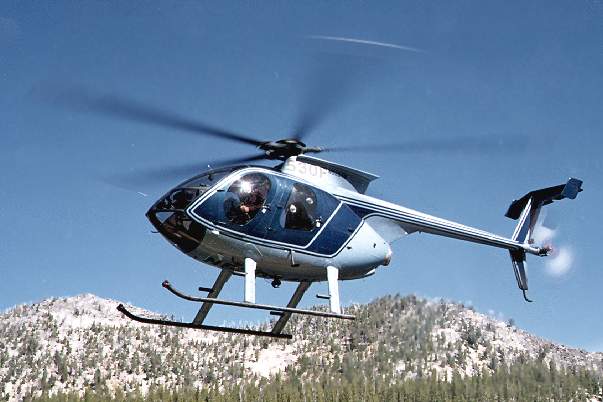

Picture MD530F
General
Manufacturer McDonnell Douglas
Type MD530F
Introduced 1/1/1985
In production? Yes
Units produced 0
Price US $ 1,600,000.00
Dimensions
Overall Length 32.6 ft
Length 24.6 ft
Height 9.8 ft
Width 4.6 ft


Description The MD530F is based on the MD500 and is engineered to be operated in hot air and high altitude conditions. It therefore uses longer main and tail rotor blades. It is a light weight, 5 seater, turbine powered helicopter.
Advertisement
Design features
  • Designed for hot-and-high operation
  • Increased diameter of the main and tail rotor
Description
The MD530F is based on the MD500 and is engineered to be operated in hot air and high altitude conditions. It therefore uses longer main and tail rotor blades. It is a light weight, 5 seater, turbine powered helicopter.
- Advertisement -
Design features:
  • Designed for hot-and-high operation
  • Increased diameter of the main and tail rotor
Performance
Persons 5
Max. Range 237 mi
Cruise Speed 154 mph
Max. Speed 175 mph
Max. rate of Climb 2069 ft/min
HOGE ceiling 14400 ft
Service Ceiling 18700 ft
Gross Weight 3100 lb
Empty Weigt 1591 lb
Useful Load 1509 lb
Dynamic system
Fuel Capacity 64 gallons
Number of Engines 1
Engine Type Turbine
Engine Code Allison 250-C30
Horse Power 650
Rotorhead Fully articulated
Number of rotorblades 5
Rotor Diameter 27.4 ft
Number of tail rotorblades 2
Tailrotor Diameter 4.8 ft
Blueprints & model
Manufacturer Website manufacturer..
