McDonnell Douglas MD500E helicopter

- Advertisement -
Choose unit system:

Specifications Comment this helicopter

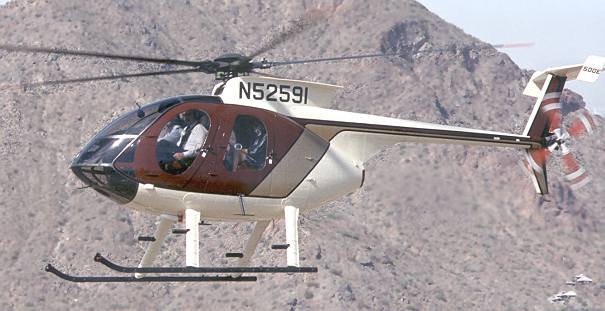

Picture MD500E
General
Manufacturer McDonnell Douglas
Type MD500E
Introduced 1/1/1976
In production? Yes
Units produced 4700
Price US $ 1,500,000.00
Dimensions
Overall Length 30.8 ft
Length 24.6 ft
Height 9.8 ft
Width 4.6 ft


Description The story of the MD500 series starts back in 1960 when the US Army issued a Technical Specification 153 for a Light Observation Helicopter (LOH). Twelve companies participated in this competition, and the designs of Bell and Hiller were selected. However, subsequently, and to the surprise of these two companies, Hughes was later readmitted to the process with its Model 369 design, ultimately winning the bid based on its superior technical specifications and a very low price per unit.

The Hughes 369 (nicknamed the 'flying egg') was known by the army as the OH-6A Cayuse /Loach. Hughes also developed a civilian version, which was the start of the Hughes 500-series, whose designation was changed into MD500 after the acquisition of Hughes by McDonnell Douglas in January 1984.

The design of the MD500 has some technological innovations worth mentioning. The first is the construction of the fully articulated rotor head based on flexible strap packs that connect the four rotor blades to the rotor shaft. This rigid type of rotor head eliminates the need for pitch bearings and flap hinges, thus saving weight and reducing maintenance costs. The egg-shaped fuselage makes the MD500 very good aerodynamically.

Both the military version and the civilian MD500 series were very successful due to the versatility of this light helicopter.

The MD500E is a light, five-seater turbine engine helicopter, which uses a five-bladed main rotor system.
Advertisement
Design features
  • Mechanical controls without hydraulic boost
  • Aluminum main rotor blades
  • Tubular skids carried on oleo-pneumatic shock-absorbers
  • Longer and more streamlined nose
Description
The story of the MD500 series starts back in 1960 when the US Army issued a Technical Specification 153 for a Light Observation Helicopter (LOH). Twelve companies participated in this competition, and the designs of Bell and Hiller were selected. However, subsequently, and to the surprise of these two companies, Hughes was later readmitted to the process with its Model 369 design, ultimately winning the bid based on its superior technical specifications and a very low price per unit.

The Hughes 369 (nicknamed the 'flying egg') was known by the army as the OH-6A Cayuse /Loach. Hughes also developed a civilian version, which was the start of the Hughes 500-series, whose designation was changed into MD500 after the acquisition of Hughes by McDonnell Douglas in January 1984.

The design of the MD500 has some technological innovations worth mentioning. The first is the construction of the fully articulated rotor head based on flexible strap packs that connect the four rotor blades to the rotor shaft. This rigid type of rotor head eliminates the need for pitch bearings and flap hinges, thus saving weight and reducing maintenance costs. The egg-shaped fuselage makes the MD500 very good aerodynamically.

Both the military version and the civilian MD500 series were very successful due to the versatility of this light helicopter.

The MD500E is a light, five-seater turbine engine helicopter, which uses a five-bladed main rotor system.
- Advertisement -
Design features:
  • Mechanical controls without hydraulic boost
  • Aluminum main rotor blades
  • Tubular skids carried on oleo-pneumatic shock-absorbers
  • Longer and more streamlined nose
Performance
Persons 5
Max. Range 275 mi
Cruise Speed 155 mph
Max. Speed 175 mph
Max. rate of Climb 1770 ft/min
HOGE ceiling 6000 ft
Service Ceiling 16000 ft
Gross Weight 3000 lb
Empty Weigt 1481 lb
Useful Load 1519 lb
Dynamic system
Fuel Capacity 64 gallons
Number of Engines 1
Engine Type Turbine
Engine Code Allison 250-C20B
Horse Power 420
Rotorhead
Number of rotorblades 5
Rotor Diameter 26.4 ft
Number of tail rotorblades 2
Tailrotor Diameter 4.6 ft

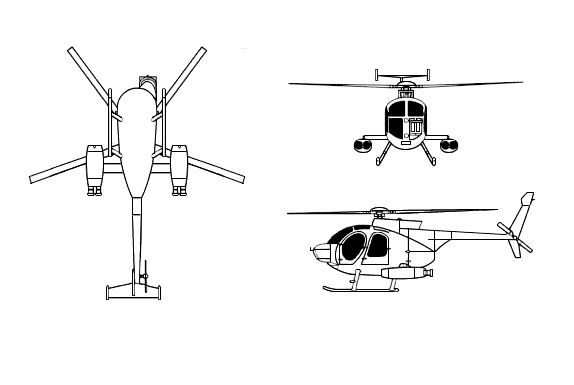

Blueprints & model
Manufacturer Website manufacturer..
- Advertisements -



2 Comments

ItemInfoText
1  Name Kyle Mindrum

Saturday, December 21, 2013 11:57 AM

Does the passenger capacity or load weight effect the over all range of a MD500E? And can an extra fuel supply be carried safely. Yes. I am very new to flying. Sorry. Thankyou.
2  helistartgz

Sunday, December 22, 2013 4:30 PM

Passenger capacity or load weight effects the overall range of every helicopter!
