Konner K1 helicopter

- Advertisement -
Choose unit system:

Specifications Comment this helicopter

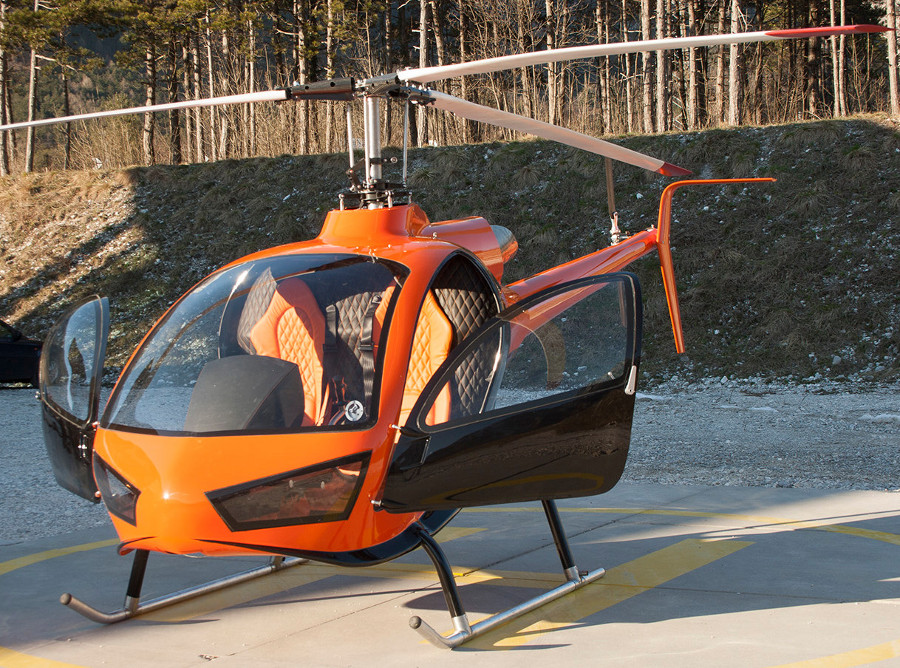

Picture K1
General
Manufacturer Konner
Type K1
Introduced 7/1/2014
In production? Yes
Units produced 48
Price US $ 400,000.00
Dimensions
Overall Length 26.4 ft
Length 21 ft
Height 7.6 ft
Width 5 ft


Description The Konner K1 is a two-seater, ultralight helicopter, which was first shown to the public in 2013 at the AERO in Friedrichshafen, Germany. It is designed and produced by the Italian company Konner, which is based in Amaro, northeast Venice.

The K1 is the remarkable result of 10 years of development and prototyping. As well as the use of modern composite materials and the typical sleek Italian design of the fuselage, Konner also sprung some surprises with a couple of notable innovations.

The first of these was the introduction of the TK-250 turboshaft engine that is designed to run on diesel or even biodiesel.

The second innovation was a hybrid turboshaft, which is a turboshaft combined with an electric motor that is capable of delivering 50hp in the event of a turboshaft engine failure. This safety feature is designed to provide a much more relaxed and safe autorotation capability by improving the flying capacity of the helicopter during such an emergency situation.

The K1 will be certified in the ultralight category in accordance with the EASA CS-27 rules for small rotorcraft. The first deliveries are planned for the second half of 2014.
Advertisement
Design features
  • (Optional) Hybrid Assistent System (HAS): Electric motor for use in emergency situations
  • Composite blades
  • Glass cockpit
  • Carbon fibre fuselage
  • FADEC
Description
The Konner K1 is a two-seater, ultralight helicopter, which was first shown to the public in 2013 at the AERO in Friedrichshafen, Germany. It is designed and produced by the Italian company Konner, which is based in Amaro, northeast Venice.

The K1 is the remarkable result of 10 years of development and prototyping. As well as the use of modern composite materials and the typical sleek Italian design of the fuselage, Konner also sprung some surprises with a couple of notable innovations.

The first of these was the introduction of the TK-250 turboshaft engine that is designed to run on diesel or even biodiesel.

The second innovation was a hybrid turboshaft, which is a turboshaft combined with an electric motor that is capable of delivering 50hp in the event of a turboshaft engine failure. This safety feature is designed to provide a much more relaxed and safe autorotation capability by improving the flying capacity of the helicopter during such an emergency situation.

The K1 will be certified in the ultralight category in accordance with the EASA CS-27 rules for small rotorcraft. The first deliveries are planned for the second half of 2014.
- Advertisement -
Design features:
  • (Optional) Hybrid Assistent System (HAS): Electric motor for use in emergency situations
  • Composite blades
  • Glass cockpit
  • Carbon fibre fuselage
  • FADEC
Performance
Persons 2
Max. Range 400 mi
Cruise Speed 132 mph
Max. Speed 155 mph
Max. rate of Climb 2600 ft/min
HOGE ceiling 0 ft
Service Ceiling 15000 ft
Gross Weight 992 lb
Empty Weigt 639 lb
Useful Load 353 lb
Dynamic system
Fuel Capacity 37 gallons
Number of Engines 1
Engine Type Turbine
Engine Code Konner TK-250
Horse Power 250
Rotorhead Bearingless
Number of rotorblades 3
Rotor Diameter 22.3 ft
Number of tail rotorblades 2
Tailrotor Diameter 4.23 ft

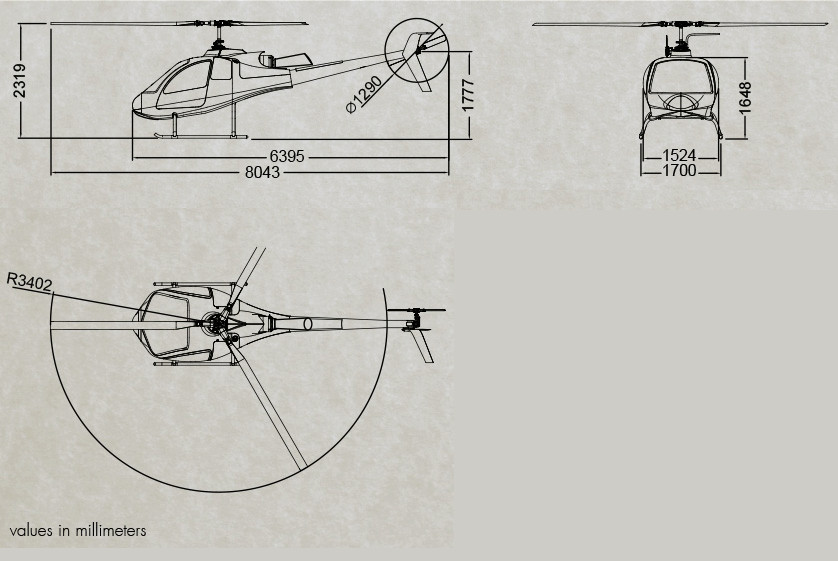

Blueprints & model
Manufacturer Website manufacturer..
- Advertisements -



8 Comments

ItemInfoText
1  Drissi

Saturday, April 11, 2015 11:51 AM

Very interesting machine. please where i can found a training nearest your factory I plan to acquire your k1 turbine for recreational and voyage in France. Europe as in north-africa. FIRST receiving knowledge and practice how I can realize my project ? Thanks
2  helistartgz

Sunday, April 12, 2015 4:45 PM

@Drissi,

I would start by following  the "Website manufacturer" link at this page..
3  Robert

Friday, September 4, 2015 6:34 AM

Greetings,

I looked at your specifications in seeing that is 353 pounds. I am assuming that that includes a full tank of fuel. Even if it does it means The pilot and passenger can only be around 150 pounds each which I find to be very limiting. Can you follow up and let me know if I have read anything wrong. I am interested in your helicopter.

Robert
4  helistartgz

Sunday, September 6, 2015 12:55 PM

Hi Robert,

Empty weight is without usable fuel and gross weight is specified with. So you are right about you assumption that the usefull load includes fuel. It always does.

By the way, it is not mine helicopter :-) It is manufactured by Konner in Italy.
5  Robert

Tuesday, September 15, 2015 6:31 AM

Hi Helistartgz,

thanks for the comments. I just found that 353 pounds useful load makes it difficult to carry two passengers that way 195 pounds. You said it was not your helicopter:-). Do you have a helicopter and if so what do you have.

Robert
6  helistartgz

Thursday, September 17, 2015 5:08 PM

Hoi Robert,

No, I don't own a helicopter but I do own a very nice helicopter website :-)

Peter

7  Gennaro Chironna

Wednesday, November 11, 2015 5:27 AM

Hi all, Firstly let me say that this is the best overall performance package and design prototype in production that I have seen it beats all other ultralight helicopters in it's class hands down the Italians got it right.this is a stable diesel turbine platform at this point faster than anything on the market and in a lot of case's at a fraction of the cost.
8  Alberto

Monday, February 8, 2016 1:44 PM

They are going to develop a 5 seater too.
I've seen it on a TV program.
