Kamov Ka-50 Black Shark / Hokum A helicopter

- Advertisement -
Choose unit system:

Specifications Comment this helicopter

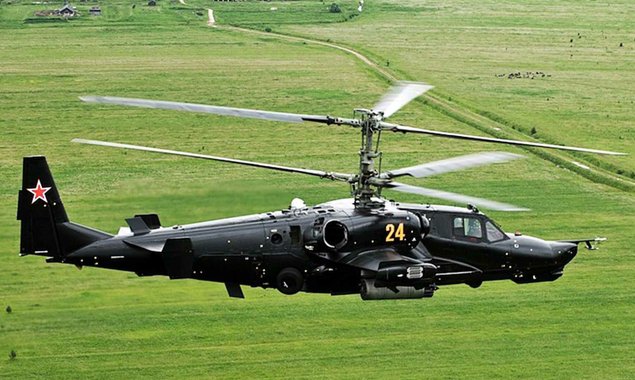

Picture Ka-50_Black_Shark__Hokum_A
General
Manufacturer Kamov
Type Ka-50 Black Shark / Hokum A
Introduced 8/28/1995
In production? Yes
Units produced 10
Price US $ 16,000,000.00
Dimensions
Overall Length 52.5 ft
Length 44.3 ft
Height 17.7 ft
Width 0 ft


Description

The Ka-50 Black Shark (NATO name “Hokum A”) is a coaxial attack helicopter designed by the Kamov bureau of the Soviet Union and today Russia. It first took flight in 1982 and was introduced in 1995.

The Black Shark was designed to be a heavily-armoured scout and is also known as the “werewolf”. Unlike attack helicopters such as the Apache, the Black Shark is a single-seat helicopter.

It has a distinctive coaxial rotor system which is a signature of Kamov and means there is no need for a tail-rotor. Thanks to the coaxial design the hovering ceiling of the Black Shark is 4000m and its vertical climb rate at 2500m is a snappy 10 meters per second.

The lack of a tail rotor also means that the Black Shark can perform flat turns with the full flight speed range.

The Black Shark is heavily-armoured all around. The cockpit protects the pilot from 12.7 mm armour-piercing rounds and 23mm fragments. The rotors can withstand several hits from ground-based automated AA weapons.

The Ka-50’s pilot ejection system is a world-first. It means the pilot can escape at altitude and at speed. It uses the K-37-800 rocket-assisted ejection seat. It’s not a ride for the faint-hearted, but it beats a crash and burn.

The Black Shark lives up to its name by being armed to the teeth. The maximum weapon load can be as much as two tons. That weight can be made up by anti-tank missiles, unguided rockets of varying calibers, air-to-air missiles, guns, bombs and others weapons.

It can carry up to 12 laser-guided Vikhr anti tank missiles and has a 2A42 quickfire 30mm gun with an unrestricted azimuth. It’s mounting also allow for engagement of both ground and air targets.

Apart from physical armour, the Black Shark has a radar warning device, electronic warfare system, and chaff and flare dispensers.

It’s powered by two powerful TV3-117VMA turboshafts providing 2 200 horsepower each.

The fearsome Black Shark remains in production today. Thirty-two Ka-50 units have been built and an additional eighty Ka-52 “Alligator” variants have also been completed.

Advertisement
Design features
  • Ejection seat and explosive charges in the rotor disc to blow away the rotor blades
  • Carbon based composite blades
  • Contra-rotating coaxial rotor system
  • Tricycle retractable landing gear
  • Fuselage built around steel torsion box beam
  • Steel/aluminium armour
  • Two small wings with three armament attachement points
  • Bullet proof glass
Description

The Ka-50 Black Shark (NATO name “Hokum A”) is a coaxial attack helicopter designed by the Kamov bureau of the Soviet Union and today Russia. It first took flight in 1982 and was introduced in 1995.

The Black Shark was designed to be a heavily-armoured scout and is also known as the “werewolf”. Unlike attack helicopters such as the Apache, the Black Shark is a single-seat helicopter.

It has a distinctive coaxial rotor system which is a signature of Kamov and means there is no need for a tail-rotor. Thanks to the coaxial design the hovering ceiling of the Black Shark is 4000m and its vertical climb rate at 2500m is a snappy 10 meters per second.

The lack of a tail rotor also means that the Black Shark can perform flat turns with the full flight speed range.

The Black Shark is heavily-armoured all around. The cockpit protects the pilot from 12.7 mm armour-piercing rounds and 23mm fragments. The rotors can withstand several hits from ground-based automated AA weapons.

The Ka-50’s pilot ejection system is a world-first. It means the pilot can escape at altitude and at speed. It uses the K-37-800 rocket-assisted ejection seat. It’s not a ride for the faint-hearted, but it beats a crash and burn.

The Black Shark lives up to its name by being armed to the teeth. The maximum weapon load can be as much as two tons. That weight can be made up by anti-tank missiles, unguided rockets of varying calibers, air-to-air missiles, guns, bombs and others weapons.

It can carry up to 12 laser-guided Vikhr anti tank missiles and has a 2A42 quickfire 30mm gun with an unrestricted azimuth. It’s mounting also allow for engagement of both ground and air targets.

Apart from physical armour, the Black Shark has a radar warning device, electronic warfare system, and chaff and flare dispensers.

It’s powered by two powerful TV3-117VMA turboshafts providing 2 200 horsepower each.

The fearsome Black Shark remains in production today. Thirty-two Ka-50 units have been built and an additional eighty Ka-52 “Alligator” variants have also been completed.

- Advertisement -
Design features:
  • Ejection seat and explosive charges in the rotor disc to blow away the rotor blades
  • Carbon based composite blades
  • Contra-rotating coaxial rotor system
  • Tricycle retractable landing gear
  • Fuselage built around steel torsion box beam
  • Steel/aluminium armour
  • Two small wings with three armament attachement points
  • Bullet proof glass
Performance
Persons 1
Max. Range 339 mi
Cruise Speed 168 mph
Max. Speed 196 mph
Max. rate of Climb 1968 ft/min
HOGE ceiling 0 ft
Service Ceiling 18000 ft
Gross Weight 23810 lb
Empty Weigt 16958 lb
Useful Load 6852 lb
Dynamic system
Fuel Capacity 0 gallons
Number of Engines 2
Engine Type Turbine
Engine Code Klimov TV3-117VK
Horse Power 2200
Rotorhead Semi-rigid; Coaxial layout
Number of rotorblades 3
Rotor Diameter 47.6 ft
Number of tail rotorblades 0
Tailrotor Diameter 0 ft

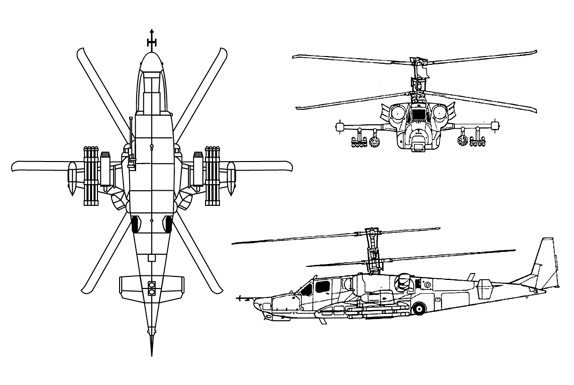

Blueprints & model
Manufacturer Website manufacturer..
