Kamov Ka-25 / Hormone helicopter

- Advertisement -
Choose unit system:

Specifications Comment this helicopter

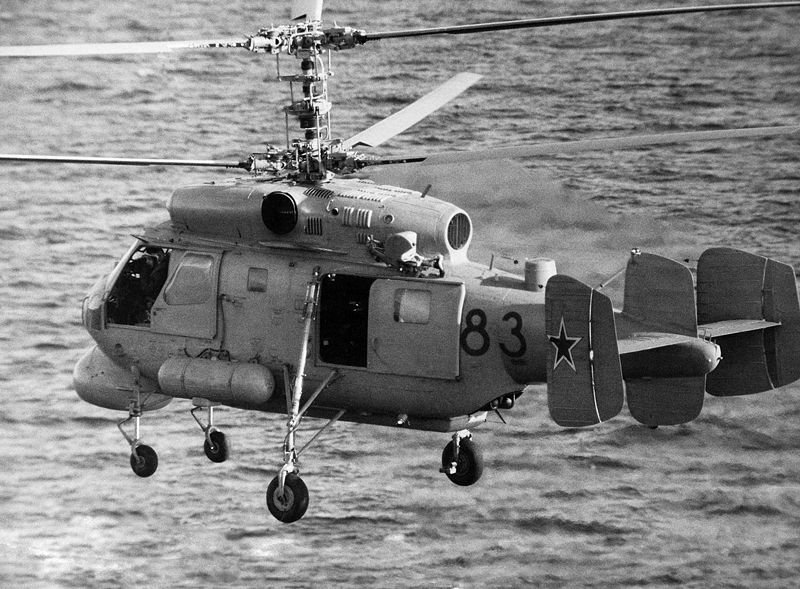

Picture Ka-25__Hormone
General
Manufacturer Kamov
Type Ka-25 / Hormone
Introduced 6/1/1972
In production? No
Units produced 450
Price US $ 0.00
Dimensions
Overall Length 36.1 ft
Length 32 ft
Height 17.6 ft
Width 0 ft


Description

The Ka-25 (NATO name “Hormone”) is a naval helicopter produced by Kamov.

The Hormone first took flight in 1963 and was officially introduced in 1972.

The Ka-25 was developed from it’s predecessor, the Ka-20 “Harp”.

The primary role the Ka-25 was created for is anti-submarine warfare. The need for anti-submarine helicopters was high in the 1950s on both the Soviet and US sides of the cold war.

The compact design of the Ka-20 was seen as an ideal springboard and certainly much faster than designing something from scratch. It’s compactness was crucial to the requirement for a ship-borne helicopter that would operate from the deck.

Early demonstrators lacked many of the key elements such as corrosion resistance, but were needed quickly for proof-of-concept purposes. The first complete prototypes were equipped with many advancements for the time, such as anti-corrosion, aluminum alloy rotor blades, automated blade folding and, hydraulic controls and alcohol de-icing.

This was a twin-engine helicopter, which is a common design for overwater operations. These were free-turbine units that had electrically de-iced inlets and plain lateral exhausts with no efforts to mask their infrared signature. They both drove the main gearbox directly as well as the cooling system for said gearbox.

For the time the materials were also quite advanced. It used a stressed-skin duralumin skin with rivets that were flush. There was also limited use of bonded honeycomb sandwich panels.

Notably, as with almost all Kamov helicopters, the Ka-25 used a coaxial twin rotor design, which means that it did not require an anti-torque rotor. Instead, the tri-fin tail boom acts as a stabilizer when dipping sonar equipment or during autorotation.

While production only ran from 1965-1977, the total number of units built is estimated at an impressive 460.

Advertisement
Design features
  • Compact design for shipboard hangar stowage
  • Electromechanical rotor blade folding system
  • Tri-fin tail section
  • Aluminium rotor blades
  • Hydraulically powered controls
  • Electrically heated engine inlets
  • Stressed-skin airframe
  • Quad-cycle landing gear
  • Search radar in flat-bottom undernose radome
Description

The Ka-25 (NATO name “Hormone”) is a naval helicopter produced by Kamov.

The Hormone first took flight in 1963 and was officially introduced in 1972.

The Ka-25 was developed from it’s predecessor, the Ka-20 “Harp”.

The primary role the Ka-25 was created for is anti-submarine warfare. The need for anti-submarine helicopters was high in the 1950s on both the Soviet and US sides of the cold war.

The compact design of the Ka-20 was seen as an ideal springboard and certainly much faster than designing something from scratch. It’s compactness was crucial to the requirement for a ship-borne helicopter that would operate from the deck.

Early demonstrators lacked many of the key elements such as corrosion resistance, but were needed quickly for proof-of-concept purposes. The first complete prototypes were equipped with many advancements for the time, such as anti-corrosion, aluminum alloy rotor blades, automated blade folding and, hydraulic controls and alcohol de-icing.

This was a twin-engine helicopter, which is a common design for overwater operations. These were free-turbine units that had electrically de-iced inlets and plain lateral exhausts with no efforts to mask their infrared signature. They both drove the main gearbox directly as well as the cooling system for said gearbox.

For the time the materials were also quite advanced. It used a stressed-skin duralumin skin with rivets that were flush. There was also limited use of bonded honeycomb sandwich panels.

Notably, as with almost all Kamov helicopters, the Ka-25 used a coaxial twin rotor design, which means that it did not require an anti-torque rotor. Instead, the tri-fin tail boom acts as a stabilizer when dipping sonar equipment or during autorotation.

While production only ran from 1965-1977, the total number of units built is estimated at an impressive 460.

- Advertisement -
Design features:
  • Compact design for shipboard hangar stowage
  • Electromechanical rotor blade folding system
  • Tri-fin tail section
  • Aluminium rotor blades
  • Hydraulically powered controls
  • Electrically heated engine inlets
  • Stressed-skin airframe
  • Quad-cycle landing gear
  • Search radar in flat-bottom undernose radome
Performance
Persons 14
Max. Range 249 mi
Cruise Speed 120 mph
Max. Speed 130 mph
Max. rate of Climb 0 ft/min
HOGE ceiling 0 ft
Service Ceiling 10991 ft
Gross Weight 26455 lb
Empty Weigt 10505 lb
Useful Load 15950 lb
Dynamic system
Fuel Capacity 0 gallons
Number of Engines 2
Engine Type Turbine
Engine Code Gluschenkow / Glushenkov GTD-3F
Horse Power 885
Rotorhead Coaxial, fully articulated
Number of rotorblades 3
Rotor Diameter 51.6 ft
Number of tail rotorblades 0
Tailrotor Diameter 0 ft

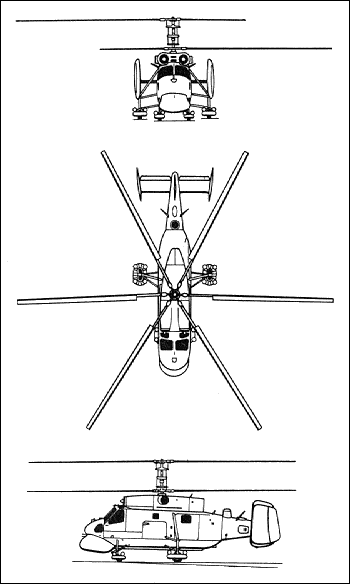

Blueprints & model
