Jen C Ellehammer Coaxial Helicopter with Cyclic Control helicopter

- Advertisement -
Choose unit system:

Specifications Comment this helicopter

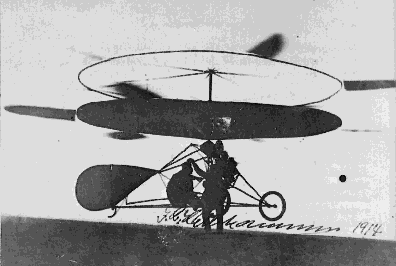

Picture Coaxial_Helicopter_with_Cyclic_Control
General
Manufacturer Jen C Ellehammer
Type Coaxial Helicopter with Cyclic Control
Introduced 9/28/1912
In production? No
Units produced 1
Price US $ 0.00
Dimensions
Overall Length 0 ft
Length 0 ft
Height 0 ft
Width 0 ft


Description A co-axial design by Ellehammer (Denmark) with cyclic pitch control, this machine made several hops but couldn't achieve controlled free-flight. It was destroyed in a crash in 1916.
Advertisement
Design features
  • Lower rotor disk covered with fabric in order to serve as a parachute in case of a fatal failure
  • Cyclic pitch mechanism
  • Movable pilot seat for additional kineshetic control
  • Tracktor propeller mounted to the airfrane for forward propulsion
Description
A co-axial design by Ellehammer (Denmark) with cyclic pitch control, this machine made several hops but couldn't achieve controlled free-flight. It was destroyed in a crash in 1916.
- Advertisement -
Design features:
  • Lower rotor disk covered with fabric in order to serve as a parachute in case of a fatal failure
  • Cyclic pitch mechanism
  • Movable pilot seat for additional kineshetic control
  • Tracktor propeller mounted to the airfrane for forward propulsion
Performance
Persons 1
Max. Range 0 mi
Cruise Speed 0 mph
Max. Speed 0 mph
Max. rate of Climb 0 ft/min
HOGE ceiling 0 ft
Service Ceiling 0 ft
Gross Weight 0 lb
Empty Weigt 0 lb
Useful Load 0 lb
Dynamic system
Fuel Capacity 0 gallons
Number of Engines 1
Engine Type Piston
Engine Code
Horse Power 36
Rotorhead Coaxial
Number of rotorblades 6
Rotor Diameter 24.5 ft
Number of tail rotorblades 0
Tailrotor Diameter 0 ft
Blueprints & model
Manufacturer Website manufacturer..
