Innovator Technologies Mosquito Air helicopter

- Advertisement -
Choose unit system:

Specifications Comment this helicopter

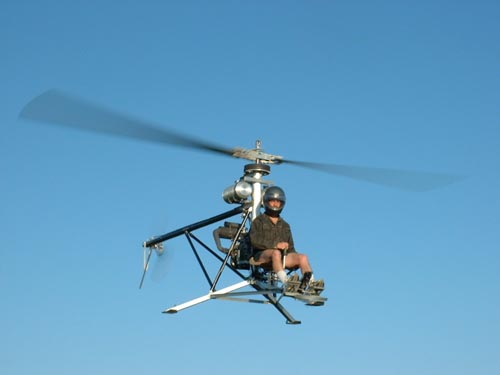

Picture Mosquito_Air
General
Manufacturer Innovator Technologies
Type Mosquito Air
Introduced 4/1/2002
In production? Yes
Units produced 0
Price US $ 28,000.00
Dimensions
Overall Length 20 ft
Length 16 ft
Height 6.92 ft
Width 6 ft


Description The Canadian company Innovator Technologies, which was founded in 2000, produces ultra light and experimental helicopters. At the base of its helicopter product line is the ultra light Mosquito Air, designed by the Canadian John Uptigrove. A single-seater helicopter with an all open frame, it is a true helicopter in every sense of the word, despite its very basic design. The open design means that the pilot is in maximum contact with the air, which is often reported to be a great experience. The machine is powered by a 2-cycle piston engine.

This model has been developed further into the Mosquito XE.
Advertisement
Design features
  • Carbon fibre tail boom
  • Tripod legs equiped with small skid pads
  • Centrifugal clutch
  • Toothed belt as second-stage reduction gear
  • Push rods run through rotor shaft
Description
The Canadian company Innovator Technologies, which was founded in 2000, produces ultra light and experimental helicopters. At the base of its helicopter product line is the ultra light Mosquito Air, designed by the Canadian John Uptigrove. A single-seater helicopter with an all open frame, it is a true helicopter in every sense of the word, despite its very basic design. The open design means that the pilot is in maximum contact with the air, which is often reported to be a great experience. The machine is powered by a 2-cycle piston engine.

This model has been developed further into the Mosquito XE.
- Advertisement -
Design features:
  • Carbon fibre tail boom
  • Tripod legs equiped with small skid pads
  • Centrifugal clutch
  • Toothed belt as second-stage reduction gear
  • Push rods run through rotor shaft
Performance
Persons 1
Max. Range 70 mi
Cruise Speed 0 mph
Max. Speed 70 mph
Max. rate of Climb 0 ft/min
HOGE ceiling 6500 ft
Service Ceiling 0 ft
Gross Weight 530 lb
Empty Weigt 254 lb
Useful Load 250 lb
Dynamic system
Fuel Capacity 5 gallons
Number of Engines 1
Engine Type Piston
Engine Code Compact Radial Engines MZ202
Horse Power 60
Rotorhead Semi rigid
Number of rotorblades 2
Rotor Diameter 18 ft
Number of tail rotorblades 2
Tailrotor Diameter 3.33 ft
Blueprints & model
Manufacturer Website manufacturer..
