Hillberg RotorMouse EH1-01 helicopter

- Advertisement -
Choose unit system:

Specifications Comment this helicopter

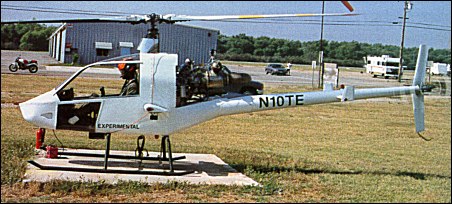

Picture RotorMouse_EH1-01
General
Manufacturer Hillberg
Type RotorMouse EH1-01
Introduced 1/1/1993
In production? Yes
Units produced 0
Price US $ 80,000.00
Dimensions
Overall Length 24 ft
Length 20.8 ft
Height 7.4 ft
Width 0 ft


Description The Hillberg Rotormouse is a single seat, turbine powered experimental helicopter. Hillberg also produces a turbine retrofit for the Rotorway Exec.
Advertisement
Design features
  • Stub-wing behind cockpit for carriage of external loads
  • Aluminium alloy monocoque fuselage
  • Aluminum-skinned tail rotor blades
Description
The Hillberg Rotormouse is a single seat, turbine powered experimental helicopter. Hillberg also produces a turbine retrofit for the Rotorway Exec.
- Advertisement -
Design features:
  • Stub-wing behind cockpit for carriage of external loads
  • Aluminium alloy monocoque fuselage
  • Aluminum-skinned tail rotor blades
Performance
Persons 1
Max. Range 345 mi
Cruise Speed 130 mph
Max. Speed 160 mph
Max. rate of Climb 2700 ft/min
HOGE ceiling 14750 ft
Service Ceiling 0 ft
Gross Weight 1370 lb
Empty Weigt 650 lb
Useful Load 720 lb
Dynamic system
Fuel Capacity 33 gallons
Number of Engines 1
Engine Type Turbine
Engine Code Honeywell 36-55-C turboshaft
Horse Power
Rotorhead Semi rigid
Number of rotorblades 2
Rotor Diameter 20 ft
Number of tail rotorblades 2
Tailrotor Diameter 3 ft
Blueprints & model
Manufacturer Website manufacturer..
