Heli Air Design HAD1-T Helineo helicopter

- Advertisement -
Choose unit system:

Specifications Comment this helicopter

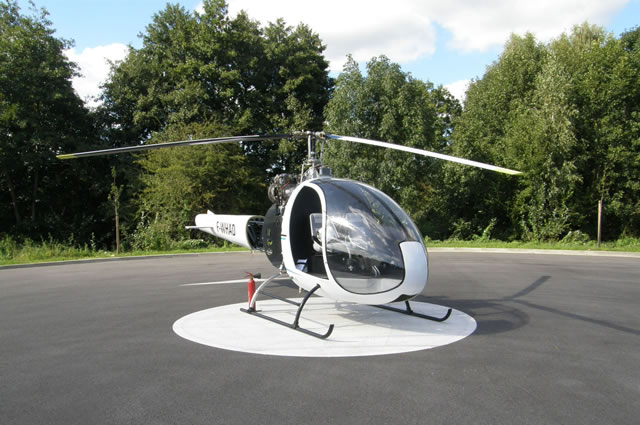

Picture HAD1-T_Helineo
General
Manufacturer Heli Air Design
Type HAD1-T Helineo
Introduced 1/1/2020
In production? No
Units produced 0
Price US $ 0.00
Dimensions
Overall Length 30.2 ft
Length 23.3 ft
Height 8.5 ft
Width 6 ft


Description

Heli Air Design (HAD) is a new French manufacturer of a two-seater, very light helicopter in the experimental class. HAD is a spin-off of the French company Serolor. The machine is modern-looking and answers to the name 'Helineo'. It comes in two versions: a kit-build machine equipped with a Solar T62T-32 turboshaft engine, and a certified (the European EASA CS-27 specifications for small rotorcraft) version that uses the Mistral G200 rotary engine.

What makes the Helineo kit unique is the fact that it uses a turbine engine in combination with a three-bladed rotor system. This combination looks promising in the marketplace for kit-build machines, which is dominated by two-bladed helicopters.

At the time of writing (2014), the Helineo is still in the prototype phase.

Advertisement
Design features
  • Main structure welded tubes
  • Composite tail boom
  • Composite Cabin
  • Acrylic glass wide vision
Description

Heli Air Design (HAD) is a new French manufacturer of a two-seater, very light helicopter in the experimental class. HAD is a spin-off of the French company Serolor. The machine is modern-looking and answers to the name 'Helineo'. It comes in two versions: a kit-build machine equipped with a Solar T62T-32 turboshaft engine, and a certified (the European EASA CS-27 specifications for small rotorcraft) version that uses the Mistral G200 rotary engine.

What makes the Helineo kit unique is the fact that it uses a turbine engine in combination with a three-bladed rotor system. This combination looks promising in the marketplace for kit-build machines, which is dominated by two-bladed helicopters.

At the time of writing (2014), the Helineo is still in the prototype phase.

- Advertisement -
Design features:
  • Main structure welded tubes
  • Composite tail boom
  • Composite Cabin
  • Acrylic glass wide vision
Performance
Persons 2
Max. Range 0 mi
Cruise Speed 0 mph
Max. Speed 121 mph
Max. rate of Climb 0 ft/min
HOGE ceiling 0 ft
Service Ceiling 0 ft
Gross Weight 1555 lb
Empty Weigt 755 lb
Useful Load 800 lb
Dynamic system
Fuel Capacity 0 gallons
Number of Engines 1
Engine Type Turbine
Engine Code Turbine Solar T 62 T-32
Horse Power 160
Rotorhead Fully articulated
Number of rotorblades 3
Rotor Diameter 26 ft
Number of tail rotorblades 2
Tailrotor Diameter 4 ft

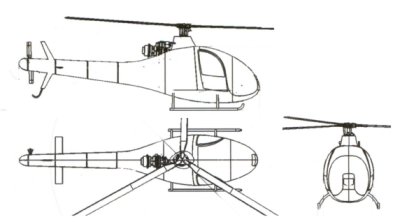

Blueprints & model
Manufacturer Website manufacturer..
