HeliSport CH7 Kompress helicopter

- Advertisement -
Choose unit system:

Specifications Comment this helicopter

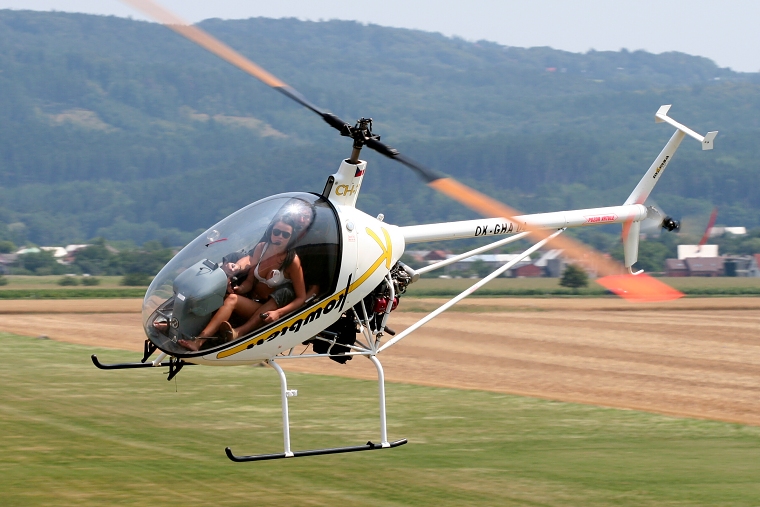

Picture CH7_Kompress
General
Manufacturer HeliSport
Type CH7 Kompress
Introduced 1/1/1992
In production? Yes
Units produced 0
Price US $ 107,500.00
Dimensions
Overall Length 23.1 ft
Length 0 ft
Height 7.71 ft
Width 5.81 ft


Description The CH7 ultra-light helicopter line has been developed by the Italian company HeliSport. It all started in 1980 when the firm bought the Cicaré CH6 helicopter rights from the Argentine designer, Augusto Cicaré. HeliSport developed the design into the single-seater CH7, and in 1992 this model was launched under the name of CH7 Angel. Right from the start, all of the CH7 models were constructed using a fibreglass fuselage, and the machines are all easily recognizable by their long transparent canopy, which also gives the pilot an excellent view of the outside.

When the Angel turned out to be a commercial success, the model was changed into a two-seater tandem configuration by stretching the cabin and using a more powerful engine. This model was introduced to the market as the CH7 Kompress.

The latest model is the CH7 Charlie, which is the successor to the Kompress in the never-ending evolutionary development process. The machines are sold in kit form only.
Advertisement
Design features
  • Welded steel tube frame
  • Aluminum tailboom, glassfibre cockpit and plexiglas canopy
  • Composite main rotor and aluminum tail rotor blades
  • Tandem seat configuration
Description
The CH7 ultra-light helicopter line has been developed by the Italian company HeliSport. It all started in 1980 when the firm bought the Cicaré CH6 helicopter rights from the Argentine designer, Augusto Cicaré. HeliSport developed the design into the single-seater CH7, and in 1992 this model was launched under the name of CH7 Angel. Right from the start, all of the CH7 models were constructed using a fibreglass fuselage, and the machines are all easily recognizable by their long transparent canopy, which also gives the pilot an excellent view of the outside.

When the Angel turned out to be a commercial success, the model was changed into a two-seater tandem configuration by stretching the cabin and using a more powerful engine. This model was introduced to the market as the CH7 Kompress.

The latest model is the CH7 Charlie, which is the successor to the Kompress in the never-ending evolutionary development process. The machines are sold in kit form only.
- Advertisement -
Design features:
  • Welded steel tube frame
  • Aluminum tailboom, glassfibre cockpit and plexiglas canopy
  • Composite main rotor and aluminum tail rotor blades
  • Tandem seat configuration
Performance
Persons 2
Max. Range 300 mi
Cruise Speed 99 mph
Max. Speed 129 mph
Max. rate of Climb 0 ft/min
HOGE ceiling 8200 ft
Service Ceiling 16400 ft
Gross Weight 992 lb
Empty Weigt 540 lb
Useful Load 452 lb
Dynamic system
Fuel Capacity 13 gallons
Number of Engines 1
Engine Type Piston, 4 cylinder, caburetor
Engine Code Rotax, 914 Turbo, 4 stroke
Horse Power 115
Rotorhead Teetering
Number of rotorblades 2
Rotor Diameter 20.3 ft
Number of tail rotorblades 2
Tailrotor Diameter 3.34 ft

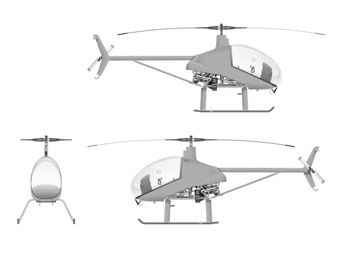

Blueprints & model
Manufacturer Website manufacturer..
