HeliSport CH77 Ranabot helicopter

- Advertisement -
Choose unit system:

Specifications Comment this helicopter

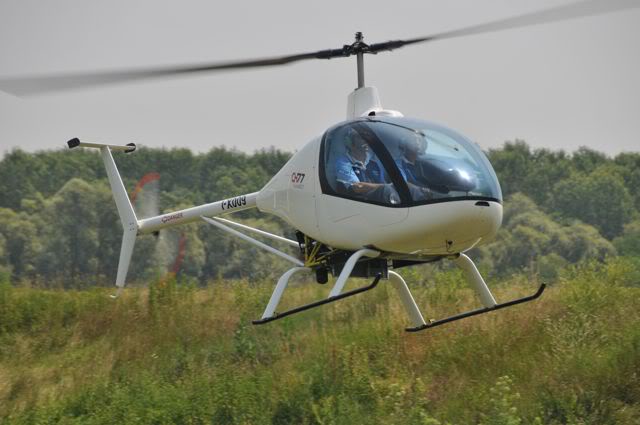

Picture CH77_Ranabot
General
Manufacturer HeliSport
Type CH77 Ranabot
Introduced 5/1/2012
In production? Yes
Units produced 0
Price US $ 95,000.00
Dimensions
Overall Length 23.1 ft
Length 0 ft
Height 7.7 ft
Width 5.4 ft


Description The CH77 is based on the successful CH7. The most important change is the seat-by-seat configuration, which replaces the tandem version. This makes for a much more comfortable sports helicopter.
Advertisement
Design features
  • Side-by-side cabin
Description
The CH77 is based on the successful CH7. The most important change is the seat-by-seat configuration, which replaces the tandem version. This makes for a much more comfortable sports helicopter.
- Advertisement -
Design features:
  • Side-by-side cabin
Performance
Persons 2
Max. Range 298 mi
Cruise Speed 106 mph
Max. Speed 130 mph
Max. rate of Climb 0 ft/min
HOGE ceiling 7200 ft
Service Ceiling 15700 ft
Gross Weight 992 lb
Empty Weigt 617 lb
Useful Load 375 lb
Dynamic system
Fuel Capacity 8 gallons
Number of Engines 1
Engine Type Piston
Engine Code EPA POWER SA-R914
Horse Power 128
Rotorhead Teetering
Number of rotorblades 2
Rotor Diameter 20.5 ft
Number of tail rotorblades 2
Tailrotor Diameter 0 ft

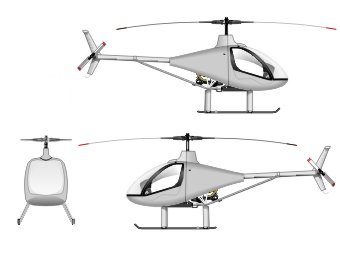

Blueprints & model
Manufacturer Website manufacturer..
