Eurocopter X3 helicopter

- Advertisement -
Choose unit system:

Specifications Comment this helicopter

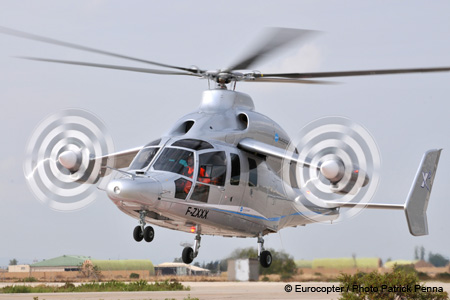

Picture X3
General
Manufacturer Eurocopter
Type X3
Introduced 9/6/2010
In production? No
Units produced 1
Price US $ 0.00
Dimensions
Overall Length 0 ft
Length 0 ft
Height 0 ft
Width 0 ft


Description

Although a helicopter is unbeatable when it comes to manoeuvrability, it still cannot match the high speeds of propeller driven airplanes. It thus comes as no surprise that the helicopter industry is looking for a solution. This quest is not new. As long ago as the 1960s, Lockheed developed the fast AH-56A Cheyenne, which used a pusher propeller to achieve a maximum speed of 244mph in level flight.

As was the case with the development of the Cheyenne, the US military is often the driving force behind these innovations. Indeed, in the 2010s, it is again the US Air Force that has formulated a new goal with its Joint Multi Role (JMR) technology demonstration program. This program was the predecessor of the Future Vertical Lift (FVL) scheme, which has the far-reaching aim of replacing the UH-60 Blackhawk, the CH-47 Chinook, the AH-64 Apache and the OH-58 Kiowa models by 2030. An important requirement of the program is a much higher cruise speed than can currently be realized with a conventional helicopter configuration.

In this context, it should not come as a surprise that Eurocopter has developed the fast X3 technology demonstrator. The key idea behind this helicopter is to: gradually slow down the main rotor speed in order to prevent the excessive drag of the advancing blades; and avoid retreating blade stall by unloading the rotor system. To generate enough lift in this situation, two small stub wings are attached to the frame. They also mount the propellers that give the machine the forward thrust that is necessary for the high forward speed. To solve the main rotor's torque effect, a different pitch is applied to the two propellers. This mechanism is also used for yaw control.

Eurocopter built the X3 prototype by using components from other models. The fuselage and main rotor were taken from the EC155 (Dauphin), while the turbo shaft engines are from the NH90 and the gearboxes that drive the propellers are from the EC175.

Eurocopter started test flights in September 2010, eventually achieving a speed of 255 knots (293mph) in level flight in July 2013. In the same year, the company finished its test program, and the X3 was put on static display at Musée de l'Air in 2014.

Although successful in terms of its speed specifications, there are some critics of the configuration, in particular the two large propellers on each side of the aircraft, which could compromise a broad mission profile. However, a patent filed by Eurocopter reveals that the company also has ideas about a configuration with two pusher propellers attached to a tail wing, which would resolve this issue.

In 2013, Eurocopter opted for the JMR program with the X3. However, due to high costs and the fact that the company had to transfer part of its intellectual property to the US, it withdrew from this program. Eurocopter also tried to join the Armed Aerial Scout (AAS) program. Unfortunately, it was not chosen to take part and, to make matters even worse, the program has been put on a hold all together at the time of writing (2014).

Currently, Eurocopter is focusing on the civil high speed market for medium-weight utility and offshore helicopters, and claims that it can hit the market around 2020. By that time, it will probably have to face competition from Sikorsky, which is also developing high speed helicopters with its X2 technology demonstrator.

Advertisement
Design features
  • EC155 fuselage
  • Two tractor propellers at both sites of the fuselage providing forward thrust
  • Starboard propeller running at higher rotational speed to counter the torque effect
  • Propellers driven by the same turboshaft engines that drive the main rotor system
  • Small wing provides up to 80% of lift at high speeds
  • Main rotor speed slowed down at high speeds to avoid drag from advancing blade
Description

Although a helicopter is unbeatable when it comes to manoeuvrability, it still cannot match the high speeds of propeller driven airplanes. It thus comes as no surprise that the helicopter industry is looking for a solution. This quest is not new. As long ago as the 1960s, Lockheed developed the fast AH-56A Cheyenne, which used a pusher propeller to achieve a maximum speed of 244mph in level flight.

As was the case with the development of the Cheyenne, the US military is often the driving force behind these innovations. Indeed, in the 2010s, it is again the US Air Force that has formulated a new goal with its Joint Multi Role (JMR) technology demonstration program. This program was the predecessor of the Future Vertical Lift (FVL) scheme, which has the far-reaching aim of replacing the UH-60 Blackhawk, the CH-47 Chinook, the AH-64 Apache and the OH-58 Kiowa models by 2030. An important requirement of the program is a much higher cruise speed than can currently be realized with a conventional helicopter configuration.

In this context, it should not come as a surprise that Eurocopter has developed the fast X3 technology demonstrator. The key idea behind this helicopter is to: gradually slow down the main rotor speed in order to prevent the excessive drag of the advancing blades; and avoid retreating blade stall by unloading the rotor system. To generate enough lift in this situation, two small stub wings are attached to the frame. They also mount the propellers that give the machine the forward thrust that is necessary for the high forward speed. To solve the main rotor's torque effect, a different pitch is applied to the two propellers. This mechanism is also used for yaw control.

Eurocopter built the X3 prototype by using components from other models. The fuselage and main rotor were taken from the EC155 (Dauphin), while the turbo shaft engines are from the NH90 and the gearboxes that drive the propellers are from the EC175.

Eurocopter started test flights in September 2010, eventually achieving a speed of 255 knots (293mph) in level flight in July 2013. In the same year, the company finished its test program, and the X3 was put on static display at Musée de l'Air in 2014.

Although successful in terms of its speed specifications, there are some critics of the configuration, in particular the two large propellers on each side of the aircraft, which could compromise a broad mission profile. However, a patent filed by Eurocopter reveals that the company also has ideas about a configuration with two pusher propellers attached to a tail wing, which would resolve this issue.

In 2013, Eurocopter opted for the JMR program with the X3. However, due to high costs and the fact that the company had to transfer part of its intellectual property to the US, it withdrew from this program. Eurocopter also tried to join the Armed Aerial Scout (AAS) program. Unfortunately, it was not chosen to take part and, to make matters even worse, the program has been put on a hold all together at the time of writing (2014).

Currently, Eurocopter is focusing on the civil high speed market for medium-weight utility and offshore helicopters, and claims that it can hit the market around 2020. By that time, it will probably have to face competition from Sikorsky, which is also developing high speed helicopters with its X2 technology demonstrator.

- Advertisement -
Design features:
  • EC155 fuselage
  • Two tractor propellers at both sites of the fuselage providing forward thrust
  • Starboard propeller running at higher rotational speed to counter the torque effect
  • Propellers driven by the same turboshaft engines that drive the main rotor system
  • Small wing provides up to 80% of lift at high speeds
  • Main rotor speed slowed down at high speeds to avoid drag from advancing blade
Performance
Persons 2
Max. Range 0 mi
Cruise Speed 291 mph
Max. Speed 307 mph
Max. rate of Climb 5000 ft/min
HOGE ceiling 0 ft
Service Ceiling 12500 ft
Gross Weight 0 lb
Empty Weigt 0 lb
Useful Load 0 lb
Dynamic system
Fuel Capacity 0 gallons
Number of Engines 2
Engine Type Turbine
Engine Code Rolls-Royce Turbomeca RTM322
Horse Power 2270
Rotorhead
Number of rotorblades 5
Rotor Diameter 0 ft
Number of tail rotorblades 2
Tailrotor Diameter 0 ft
Blueprints & model
Manufacturer Website manufacturer..
