Eurocopter EC130 B4 helicopter

- Advertisement -
Choose unit system:

Specifications Comment this helicopter

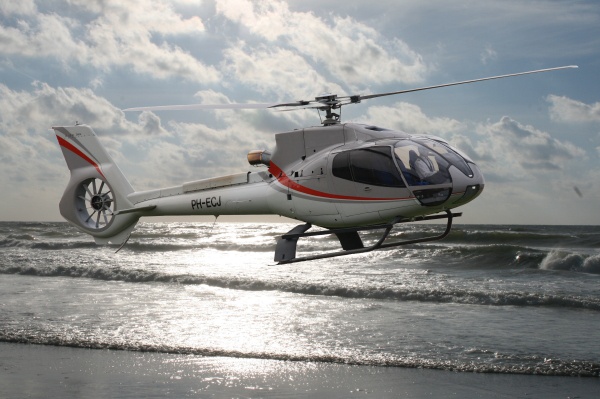

Picture EC130B4
General
Manufacturer Eurocopter
Type EC130 B4
Introduced 1/1/2001
In production? Yes
Units produced 0
Price US $ 3,200,000.00
Dimensions
Overall Length 41.47 ft
Length 35.03 ft
Height 10.96 ft
Width 6.66 ft


Description The EC130 is a single turbine, multipurpose light helicopter. This machine is based on the AS350 B3 Ecureuil airframe and was designed as its successor. Major improvements are the wider body with room for seven passengers and one pilot, and a fenestron tail (ducted fan) that makes the helicopter much quieter. Eurocopter also consulted tour operators during the development process, and the aircraft has an excellent external view and an automobile grade air conditioning system as a result.

The EC130 is also used for medical purposes because of its wide body. Eurocopter is still selling both the EC130 and the AS350 Ecureuil.
Advertisement
Design features
  • Fenestron anti-torque device
  • Wide cabin and spacious cockpit
  • Dual channel FADEC system
Description
The EC130 is a single turbine, multipurpose light helicopter. This machine is based on the AS350 B3 Ecureuil airframe and was designed as its successor. Major improvements are the wider body with room for seven passengers and one pilot, and a fenestron tail (ducted fan) that makes the helicopter much quieter. Eurocopter also consulted tour operators during the development process, and the aircraft has an excellent external view and an automobile grade air conditioning system as a result.

The EC130 is also used for medical purposes because of its wide body. Eurocopter is still selling both the EC130 and the AS350 Ecureuil.
- Advertisement -
Design features:
  • Fenestron anti-torque device
  • Wide cabin and spacious cockpit
  • Dual channel FADEC system
Performance
Persons 7
Max. Range 400 mi
Cruise Speed 146 mph
Max. Speed 178 mph
Max. rate of Climb 1800 ft/min
HOGE ceiling 8740 ft
Service Ceiling 16500 ft
Gross Weight 5291 lb
Empty Weigt 3020 lb
Useful Load 2271 lb
Dynamic system
Fuel Capacity 143 gallons
Number of Engines 1
Engine Type Turbine
Engine Code TURBOMECA Arriel 2B1
Horse Power 847
Rotorhead
Number of rotorblades 3
Rotor Diameter 35.07 ft
Number of tail rotorblades 11
Tailrotor Diameter 3.28 ft

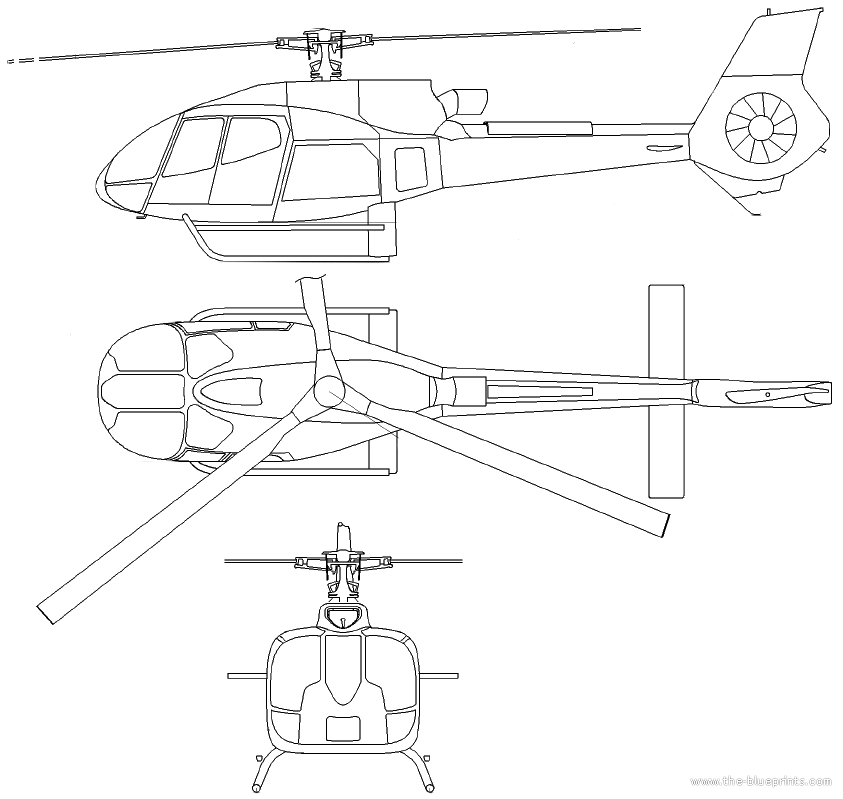

Blueprints & model
Manufacturer Website manufacturer..
