Eurocopter AS365 n3+ Dauphin helicopter

- Advertisement -
Choose unit system:

Specifications Comment this helicopter

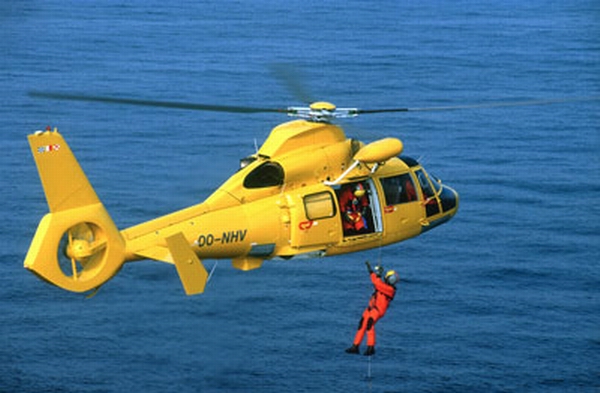

Picture AS365_Dauphin
General
Manufacturer Eurocopter
Type AS365 n3+ Dauphin
Introduced 12/1/1978
In production? Yes
Units produced 0
Price US $ 9,000,000.00
Dimensions
Overall Length 45 ft
Length 39.7 ft
Height 13.3 ft
Width 10.6 ft


Description

The Airbus Helicopters AS365 n3+ Dauphin is a multirole, medium weight helicopter that is part of the larger Dauphin family of aircraft. The Dauphin was originally known as the Aérospatiale SA 365 Dauphin 2 and then as the Eurocopter AS365 Dauphin, as it was manufactured by each company in turn before being acquired by Airbus Helicopters.

The first Dauphin took flight in 1975 and the AS365 n3+ represents decades of updating and refinement in response to changing demands and technologies.

The Dauphin fill several important niches in the helicopter market. It is a popular choice for corporate transport and has found a home as an airborne law enforcement platform. The Dauphin has also found favour as a medical aircraft, news helicopter and with search and rescue units.

The n3+ Dauphin uses a twin-engine design and is known for its exceptional range. This helicopter is capable of “hot and high” operation, making it ideal for search and rescue in harsh conditions.

The n3+ model is differentiated by its more powerful Turbomeca Arriel 2N engines that have a 15% power advantage over previous Dauphins. The n3+ Dauphin can take if in ground effect at maximum takeoff weight at temperatures of up to 50 degrees Celsius.

As a transport the Dauphin is capable of carrying twelve people and two pilots, but there is also a more luxurious VIP configuration that caps that number at seven passengers. The n3+ Dauphin is especially suited for transport in urban areas thanks to the Airbus Fenestron tail rotor system and Starflex low-noise rotor head. Excessive noise and accidental damage or injury from exposed tail rotors in urban confines are two key considerations for city bound helicopters.

The civilian use case for the Dauphin is further bolstered by its low operating costs and relatively easy flight operation. The Dauphin has dual controls, but can easily be flown by a single pilot under instrument flight rules thanks to sophisticated avionics and a 4-axis autopilot.

By 2011 one thousand Dauphins had been delivered for civilian use in over 60 countries. They are in use by over 300 operators globally. Dauphins are delivered at a rate of 30 to 40 per year. Cumulatively the Dauphin account for about 4.6 million flight hours.

Each Dauphin costs slightly less than 10 million USD or 7.5 million Euros. A successor has been named for the Dauphin, known as the H160.However, as of March 2015 it has yet to enter service.

Advertisement
Design features
  • Starflex® fiberglass rotor head
  • Fiberglass and carbon fiber main rotor blades
  • All-composite fenestron tail rotor
Description

The Airbus Helicopters AS365 n3+ Dauphin is a multirole, medium weight helicopter that is part of the larger Dauphin family of aircraft. The Dauphin was originally known as the Aérospatiale SA 365 Dauphin 2 and then as the Eurocopter AS365 Dauphin, as it was manufactured by each company in turn before being acquired by Airbus Helicopters.

The first Dauphin took flight in 1975 and the AS365 n3+ represents decades of updating and refinement in response to changing demands and technologies.

The Dauphin fill several important niches in the helicopter market. It is a popular choice for corporate transport and has found a home as an airborne law enforcement platform. The Dauphin has also found favour as a medical aircraft, news helicopter and with search and rescue units.

The n3+ Dauphin uses a twin-engine design and is known for its exceptional range. This helicopter is capable of “hot and high” operation, making it ideal for search and rescue in harsh conditions.

The n3+ model is differentiated by its more powerful Turbomeca Arriel 2N engines that have a 15% power advantage over previous Dauphins. The n3+ Dauphin can take if in ground effect at maximum takeoff weight at temperatures of up to 50 degrees Celsius.

As a transport the Dauphin is capable of carrying twelve people and two pilots, but there is also a more luxurious VIP configuration that caps that number at seven passengers. The n3+ Dauphin is especially suited for transport in urban areas thanks to the Airbus Fenestron tail rotor system and Starflex low-noise rotor head. Excessive noise and accidental damage or injury from exposed tail rotors in urban confines are two key considerations for city bound helicopters.

The civilian use case for the Dauphin is further bolstered by its low operating costs and relatively easy flight operation. The Dauphin has dual controls, but can easily be flown by a single pilot under instrument flight rules thanks to sophisticated avionics and a 4-axis autopilot.

By 2011 one thousand Dauphins had been delivered for civilian use in over 60 countries. They are in use by over 300 operators globally. Dauphins are delivered at a rate of 30 to 40 per year. Cumulatively the Dauphin account for about 4.6 million flight hours.

Each Dauphin costs slightly less than 10 million USD or 7.5 million Euros. A successor has been named for the Dauphin, known as the H160.However, as of March 2015 it has yet to enter service.

- Advertisement -
Design features:
  • Starflex® fiberglass rotor head
  • Fiberglass and carbon fiber main rotor blades
  • All-composite fenestron tail rotor
Performance
Persons 13
Max. Range 470 mi
Cruise Speed 167 mph
Max. Speed 178 mph
Max. rate of Climb 1321 ft/min
HOGE ceiling 3773 ft
Service Ceiling 15223 ft
Gross Weight 9480 lb
Empty Weigt 5302 lb
Useful Load 4178 lb
Dynamic system
Fuel Capacity 0 gallons
Number of Engines 2
Engine Type Turbine
Engine Code Turbomeca Arriel 2C
Horse Power 961
Rotorhead Starflex, hingless rotor hub
Number of rotorblades 4
Rotor Diameter 39.2 ft
Number of tail rotorblades 13
Tailrotor Diameter 3.6 ft

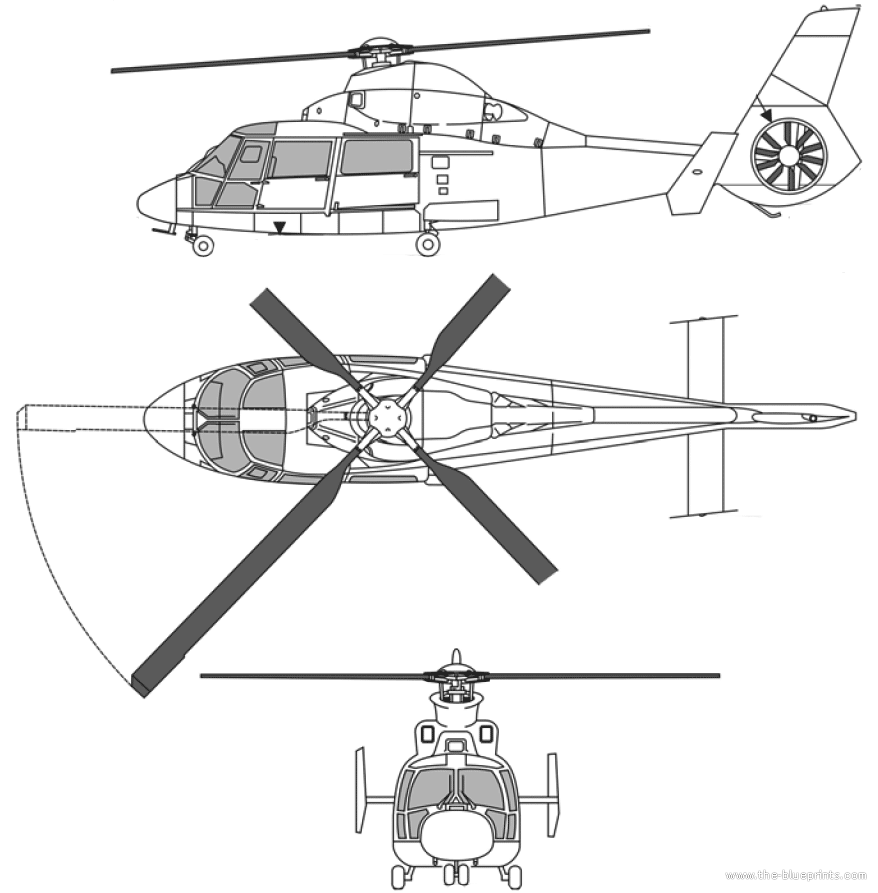

Blueprints & model
Manufacturer Website manufacturer..
- Advertisements -



1 Comments

ItemInfoText
1  helistartgz

Sunday, May 5, 2013 9:08 AM

Arrival of a Dauphin AS365 SAR helicopter at the 'Reddingsbootdag' in Katwijk, The Netherlands.

http://www.youtube.com/watch?v=14Hwzs4RRDY&feature=youtu.be
