Doman LZ-1A helicopter

- Advertisement -
Choose unit system:

Specifications Comment this helicopter

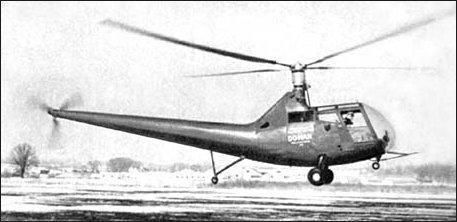

Picture LZ-1A
General
Manufacturer Doman
Type LZ-1A
Introduced 3/1/1950
In production? No
Units produced 1
Price US $ 0.00
Dimensions
Overall Length 33.9 ft
Length 0 ft
Height 11 ft
Width 0 ft


Description

The Doman LZ-1A is a light experimental helicopter adapted from a Sikorsky design by Doman Helicopters of the United States of America.

The LZ-1A started life as the Sikorsky R6A Hoverfly, but was then modified by Doman into the LZ-1A. The new Doman design first took flight in 1947 after only a year of development.

The main aim of the modification was to design and test new flight performance technology. Doman simplified the rotor head in order to reduce overall flight stresses and improve the control feedback. Tests of the new control system was deemed a success in 1947.

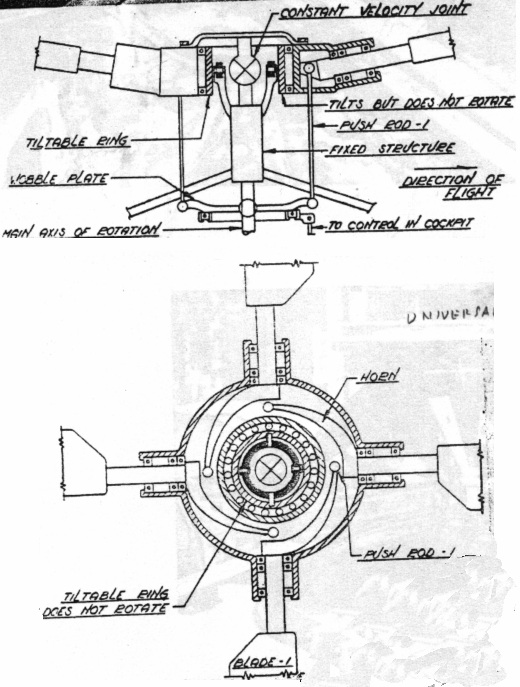

The specific design made use of a hingeless rotor driven by a constant-velocity universal joint. The rotor was also about two feet larger in diameter compared to the Hoverfly.

This design lets the rotor tilt freely relative to the fuselage, but doesn’t put any stress on it. The rotor was so well balanced that serve-less fingertip control was possible This pioneering hingeless design was eventually adopted about 40 years later. Remarkably, during one test flight the aircraft completed 40 minutes of forward flight without the pilot touching the cyclic control.

These modifications did nothing to harm the top speed of the craft either and hovering performance was also significantly improved. Although only one LZ-1A was made, the technology that was developed lives on today.

Advertisement
Design features
  • Gimbal mounted rotorhead with propeller like blade pitch mechanism. No need for flap and drag hinges.
  • Modified Sikorky R-6
Description

The Doman LZ-1A is a light experimental helicopter adapted from a Sikorsky design by Doman Helicopters of the United States of America.

The LZ-1A started life as the Sikorsky R6A Hoverfly, but was then modified by Doman into the LZ-1A. The new Doman design first took flight in 1947 after only a year of development.

The main aim of the modification was to design and test new flight performance technology. Doman simplified the rotor head in order to reduce overall flight stresses and improve the control feedback. Tests of the new control system was deemed a success in 1947.

The specific design made use of a hingeless rotor driven by a constant-velocity universal joint. The rotor was also about two feet larger in diameter compared to the Hoverfly.

This design lets the rotor tilt freely relative to the fuselage, but doesn’t put any stress on it. The rotor was so well balanced that serve-less fingertip control was possible This pioneering hingeless design was eventually adopted about 40 years later. Remarkably, during one test flight the aircraft completed 40 minutes of forward flight without the pilot touching the cyclic control.

These modifications did nothing to harm the top speed of the craft either and hovering performance was also significantly improved. Although only one LZ-1A was made, the technology that was developed lives on today.

- Advertisement -
Design features:
  • Gimbal mounted rotorhead with propeller like blade pitch mechanism. No need for flap and drag hinges.
  • Modified Sikorky R-6
Performance
Persons 2
Max. Range 0 mi
Cruise Speed 85 mph
Max. Speed 0 mph
Max. rate of Climb 902 ft/min
HOGE ceiling 0 ft
Service Ceiling 0 ft
Gross Weight 2976 lb
Empty Weigt 1920 lb
Useful Load 1056 lb
Dynamic system
Fuel Capacity 0 gallons
Number of Engines 1
Engine Type Piston
Engine Code Franklin 0-405-
Horse Power 245
Rotorhead Gimbal based rotor system
Number of rotorblades 4
Rotor Diameter 40 ft
Number of tail rotorblades 3
Tailrotor Diameter 0 ft
