Cicare CH-7B helicopter

- Advertisement -
Choose unit system:

Specifications Comment this helicopter

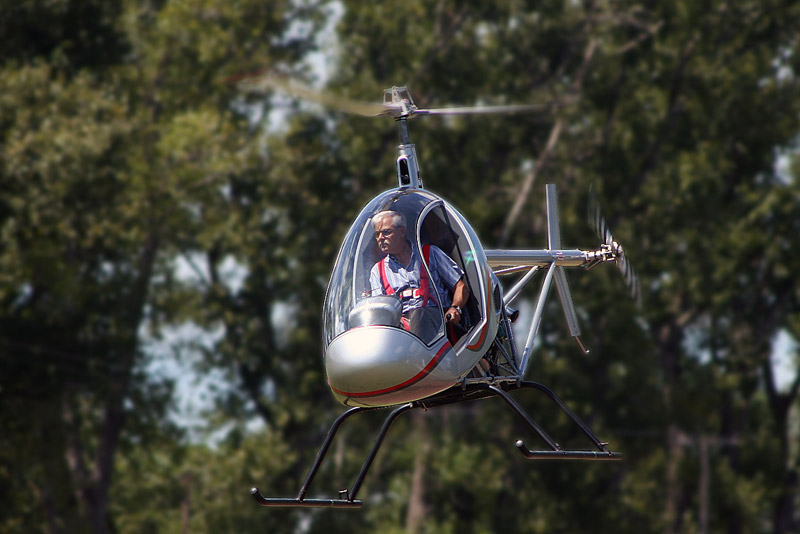

Picture CH-7B
General
Manufacturer Cicare
Type CH-7B
Introduced 1/6/2012
In production? Yes
Units produced 335
Price US $ 125,000.00
Dimensions
Overall Length 23.5 ft
Length 17 ft
Height 8.06 ft
Width 0 ft


Description Single engine, single seat, ultra light helicopter produced by Cicare SA of Argentina. The machine is derived from the sucessfull CH-6 and CH-7 designs and sold in kit form only. This agile machine is aimed at the sports market (CH-7B) and it is also used for herding cattle (CH-7Bt). There is also a tandem version avaible (CH-7T).

The Cicare CH-7B family competes with the two seater Robinson R22 in the market for cattle herding. The main advantage of the CH-7 is its much lower price level both in purchase and operating costs. Of course, we can't overlook the fact that the R22 is a certified machine while the CH-7 belongs to the class of experimental aircraft.

The CH-7 product line is very succesfull with over 335 units sold.
Advertisement
Design features
  • Centrifugal clutch system
  • Composite blades
  • Skid type landing gear
Description
Single engine, single seat, ultra light helicopter produced by Cicare SA of Argentina. The machine is derived from the sucessfull CH-6 and CH-7 designs and sold in kit form only. This agile machine is aimed at the sports market (CH-7B) and it is also used for herding cattle (CH-7Bt). There is also a tandem version avaible (CH-7T).

The Cicare CH-7B family competes with the two seater Robinson R22 in the market for cattle herding. The main advantage of the CH-7 is its much lower price level both in purchase and operating costs. Of course, we can't overlook the fact that the R22 is a certified machine while the CH-7 belongs to the class of experimental aircraft.

The CH-7 product line is very succesfull with over 335 units sold.
- Advertisement -
Design features:
  • Centrifugal clutch system
  • Composite blades
  • Skid type landing gear
Performance
Persons 1
Max. Range 0 mi
Cruise Speed 94 mph
Max. Speed 120 mph
Max. rate of Climb 1375 ft/min
HOGE ceiling 0 ft
Service Ceiling 11500 ft
Gross Weight 946 lb
Empty Weigt 583 lb
Useful Load 363 lb
Dynamic system
Fuel Capacity 0 gallons
Number of Engines 1
Engine Type Piston
Engine Code Rotax 914 ULS
Horse Power 100
Rotorhead Teetering
Number of rotorblades 2
Rotor Diameter 20 ft
Number of tail rotorblades 2
Tailrotor Diameter 3.6 ft

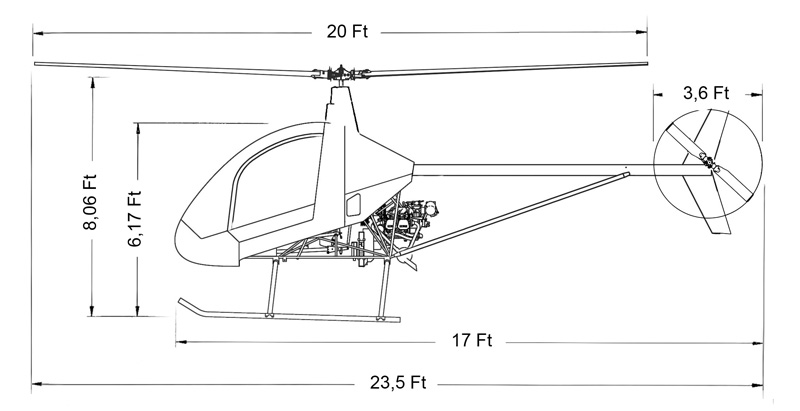

Blueprints & model
Manufacturer Website manufacturer..
- Advertisements -



2 Comments

ItemInfoText
1  tcamiga

Wednesday, August 28, 2013 2:06 AM

There are now three distinct CH7B models:
  • CH7B single seat as per the photo above with Rotax 912 ULS
  • CH7Bt single seat as used in Australia for herding cattle - Rotax 914;7cm longer main rotor blades and tail boom; 60 litre fuel tanks; larger Cab for pilots to 120Kgs, redesigned, stronger MR gearbox; engine coolant thermostat and many other improvements  http://brumbyhelicopters.com.au/

  • CH7T tandem, Rotax 914, ULS certification europe
2  Alberto

Thursday, July 16, 2015 8:48 AM

1 seat, 125000 $ ???
Ah ah ah ah!  Very nice! Ah ah ah!
