Cicare CH-14 Aguilucho helicopter

- Advertisement -
Choose unit system:

Specifications Comment this helicopter

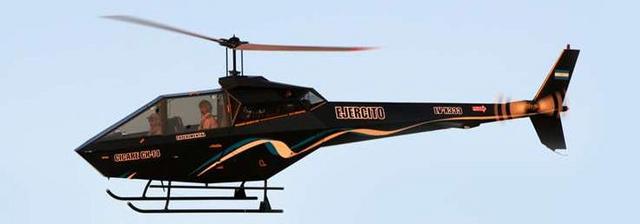

Picture CH-14_Aguilucho
General
Manufacturer Cicare
Type CH-14 Aguilucho
Introduced 1/1/2020
In production? No
Units produced 1
Price US $ 0.00
Dimensions
Overall Length 38.1 ft
Length 32.2 ft
Height 10.8 ft
Width 3.6 ft


Description The CH-14 is a two seater, light helicopter in a tandem configuration. The project was started after the Argentine Army Aviation requested the development of a light attack and reconnaissance helicopter in 2005. In 2007, a prototype was shown to the public on Army Aviation Day.

The design is based on the Bell 206 JetRanger. One of the most striking features of the CH-14 Aguilucho (Little Eagle) is its macho appearance. The development was conducted according to FAR-27 regulations.

The development program is still in the (experimental) project phase. Only one prototype has been built.
Advertisement
Design features
Description
The CH-14 is a two seater, light helicopter in a tandem configuration. The project was started after the Argentine Army Aviation requested the development of a light attack and reconnaissance helicopter in 2005. In 2007, a prototype was shown to the public on Army Aviation Day.

The design is based on the Bell 206 JetRanger. One of the most striking features of the CH-14 Aguilucho (Little Eagle) is its macho appearance. The development was conducted according to FAR-27 regulations.

The development program is still in the (experimental) project phase. Only one prototype has been built.
- Advertisement -
Design features:
Performance
Persons 2
Max. Range 320 mi
Cruise Speed 130 mph
Max. Speed 149 mph
Max. rate of Climb 1925 ft/min
HOGE ceiling 0 ft
Service Ceiling 14750 ft
Gross Weight 1450 lb
Empty Weigt 617 lb
Useful Load 833 lb
Dynamic system
Fuel Capacity 0 gallons
Number of Engines 1
Engine Type Turbine
Engine Code Rolls-Royce Allison 250-C-20B
Horse Power 370
Rotorhead Teetering
Number of rotorblades 2
Rotor Diameter 32.8 ft
Number of tail rotorblades 2
Tailrotor Diameter 4.9 ft

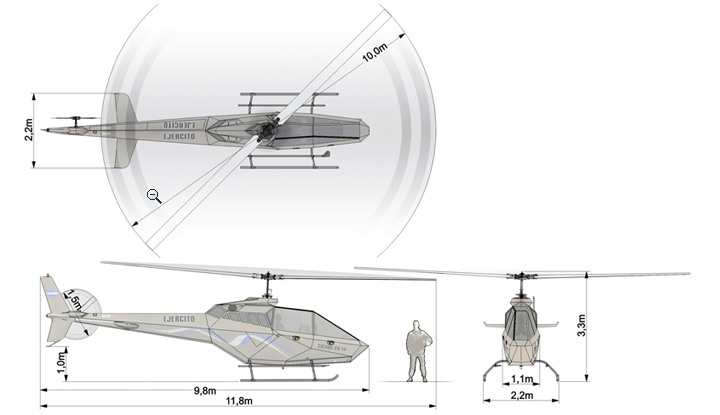

Blueprints & model
Manufacturer Website manufacturer..
- Advertisements -



3 Comments

ItemInfoText
1  Golnaz

Tuesday, January 29, 2013 8:50 AM

Hi

Can you tell me what is the units for each quantity?

for example is the unit of TailRotor Diameter in meter or foot or something else?
2  helistartgz

Tuesday, January 29, 2013 7:25 PM

Units are default Imperial (miles, foots, etc). You can select SI system (meter, km, etc) with the dropdown listbox at the top of the page..
3  helistartgz

Friday, February 1, 2013 3:05 PM

I changed the helicopter model page so that the unit is always displayed.
