Canadian Home Rotors Safari helicopter

- Advertisement -
Choose unit system:

Specifications Comment this helicopter

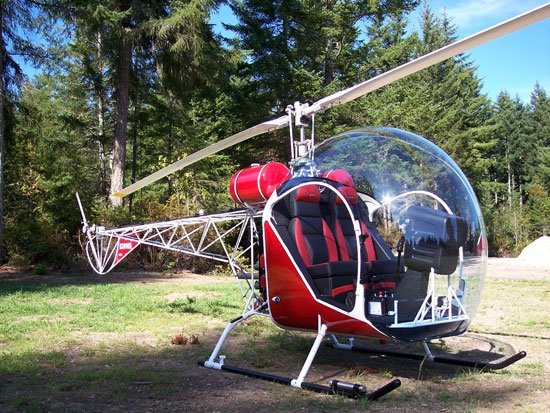

Picture Safari
General
Manufacturer Canadian Home Rotors
Type Safari
Introduced 1/1/1992
In production? Yes
Units produced 150
Price US $ 150,000.00
Dimensions
Overall Length 30.1 ft
Length 0 ft
Height 8 ft
Width 5 ft


Description The roots of the kit-build Safari go back to the single-seat Helicom, which was designed by the aeronautical engineer Harold Emigh and his son in the early years of the 1960s. Later, the model was developed into the two-seater Commuter II. Canadian Home Rotors (CHR) then took the Commuter II design and developed it further into a helicopter called the Baby Bell. The model was brought to the market at 1992 in Oshkosh. After Bell Helicopters objected to the name, it was changed to Safari in 1999.

The Safari is a Bell 47 look-a-like, and also uses its certified bubble canopy. The machine, which is in the experimental category, is sold worldwide either as a kit or 'ready to fly'. It has proved to be a successful product in the market of home build helicopters.

In 2009, CHR International acquired the rights to the Safari helicopter and started moving the production facilities from Canada to Florida, USA.
Advertisement
Design features
  • Frame of welded steel tube
  • Certified Bell 47 bubble
  • Composite main rotor blades
  • Oil bath gears and chip detectors
Description
The roots of the kit-build Safari go back to the single-seat Helicom, which was designed by the aeronautical engineer Harold Emigh and his son in the early years of the 1960s. Later, the model was developed into the two-seater Commuter II. Canadian Home Rotors (CHR) then took the Commuter II design and developed it further into a helicopter called the Baby Bell. The model was brought to the market at 1992 in Oshkosh. After Bell Helicopters objected to the name, it was changed to Safari in 1999.

The Safari is a Bell 47 look-a-like, and also uses its certified bubble canopy. The machine, which is in the experimental category, is sold worldwide either as a kit or 'ready to fly'. It has proved to be a successful product in the market of home build helicopters.

In 2009, CHR International acquired the rights to the Safari helicopter and started moving the production facilities from Canada to Florida, USA.
- Advertisement -
Design features:
  • Frame of welded steel tube
  • Certified Bell 47 bubble
  • Composite main rotor blades
  • Oil bath gears and chip detectors
Performance
Persons 2
Max. Range 270 mi
Cruise Speed 85 mph
Max. Speed 100 mph
Max. rate of Climb 1000 ft/min
HOGE ceiling 5000 ft
Service Ceiling 10000 ft
Gross Weight 1600 lb
Empty Weigt 1000 lb
Useful Load 600 lb
Dynamic system
Fuel Capacity 28 gallons
Number of Engines 1
Engine Type Piston, 4 cylinder caburetor
Engine Code Lycoming O320-B2C
Horse Power 180
Rotorhead Teetering head
Number of rotorblades 2
Rotor Diameter 25.3 ft
Number of tail rotorblades 2
Tailrotor Diameter 4 ft
Blueprints & model
Manufacturer Website manufacturer..
