Boeing AH-64 (D) Apache helicopter

- Advertisement -
Choose unit system:

Specifications Comment this helicopter

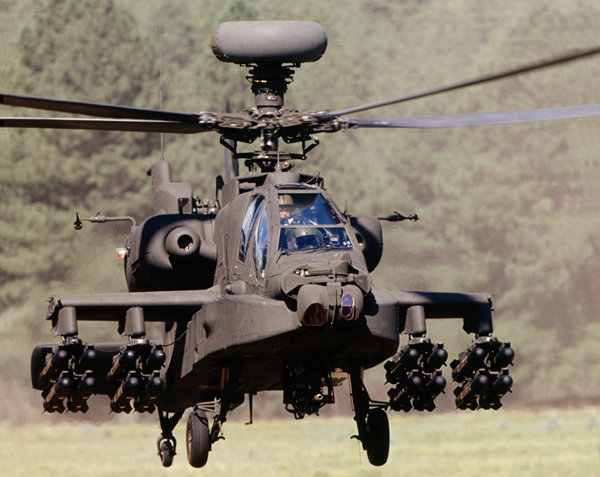

Picture AH-64(D)_Apache
General
Manufacturer Boeing
Type AH-64 (D) Apache
Introduced 4/1/1986
In production? Yes
Units produced 1150
Price US $ 20,000,000.00
Dimensions
Overall Length 56.8 ft
Length 49.1 ft
Height 13.8 ft
Width 19 ft


Description

The Ah-64 Apache is a tandem attack helicopter manufactured for the US Air Force by Hughes Helicopters, then McDonnell Douglas and currently by Boeing Defense, Space and Security.

The Apache first took flight in 1975 and was officially introduced in 1986. It started life as the Model 77, a replacement for the AH-1 Cobra which was adapted from the UH-1 Iroquois or “Huey”.

Since the Cobra was not a ground-up attack helicopter it had several performance limitations, most of which were addressed in the design of the Apache.

The Apache is a formidable and iconic war machine. This twin-engine, four-blade tandem helicopter has a highly advanced nose-mounted sensor system. This allows pilots to acquire targets in a variety of ways, including at night in darkness.

The Apache is equipped with a 30 mm M230 chaingun and four hardpoints that accept a range of powerful arms. Usually the loadout will consists of a mix that includes the proven Hellfire missiles and Hydra 70 rocket pods.

The Apache was built to withstand a significant amount of damage. There are many stories of pilots finding damage after landing that would have lead to a crash in another gunship. This is largely due to the high level of system redundancy the Apache was designed with.

The Longbow variant of the Apache (the AH-64D) is equipped with a radar system mounted above the main rotor, which allows the helicopter to pop up from cover and acquire targets without being targeted in turn.

This amazing AN/APG-78 radome can track 128 targets simultaneously and engage 16 at the same time. The twin T700-GE-701C engines in the AH-64D are also upgrades over the standard Apache.

In total about 2000 Apaches have been built across all variants and it remains in service to this day.

Advertisement
Design features
  • Tricyle non-retractable landing gear
  • Tandem cockpit
  • Self-sealing fuel system
  • 2,500 pounds (1,100 kg) of protection against ballistic strikes
  • Helmet mounted display
  • Two stub-wing pylons
  • Twin two-blade teetering 'scissor' tail rotors co-axially mounted
Description

The Ah-64 Apache is a tandem attack helicopter manufactured for the US Air Force by Hughes Helicopters, then McDonnell Douglas and currently by Boeing Defense, Space and Security.

The Apache first took flight in 1975 and was officially introduced in 1986. It started life as the Model 77, a replacement for the AH-1 Cobra which was adapted from the UH-1 Iroquois or “Huey”.

Since the Cobra was not a ground-up attack helicopter it had several performance limitations, most of which were addressed in the design of the Apache.

The Apache is a formidable and iconic war machine. This twin-engine, four-blade tandem helicopter has a highly advanced nose-mounted sensor system. This allows pilots to acquire targets in a variety of ways, including at night in darkness.

The Apache is equipped with a 30 mm M230 chaingun and four hardpoints that accept a range of powerful arms. Usually the loadout will consists of a mix that includes the proven Hellfire missiles and Hydra 70 rocket pods.

The Apache was built to withstand a significant amount of damage. There are many stories of pilots finding damage after landing that would have lead to a crash in another gunship. This is largely due to the high level of system redundancy the Apache was designed with.

The Longbow variant of the Apache (the AH-64D) is equipped with a radar system mounted above the main rotor, which allows the helicopter to pop up from cover and acquire targets without being targeted in turn.

This amazing AN/APG-78 radome can track 128 targets simultaneously and engage 16 at the same time. The twin T700-GE-701C engines in the AH-64D are also upgrades over the standard Apache.

In total about 2000 Apaches have been built across all variants and it remains in service to this day.

- Advertisement -
Design features:
  • Tricyle non-retractable landing gear
  • Tandem cockpit
  • Self-sealing fuel system
  • 2,500 pounds (1,100 kg) of protection against ballistic strikes
  • Helmet mounted display
  • Two stub-wing pylons
  • Twin two-blade teetering 'scissor' tail rotors co-axially mounted
Performance
Persons 2
Max. Range 249 mi
Cruise Speed 165 mph
Max. Speed 192 mph
Max. rate of Climb 2500 ft/min
HOGE ceiling 0 ft
Service Ceiling 21000 ft
Gross Weight 19855 lb
Empty Weigt 10267 lb
Useful Load 9588 lb
Dynamic system
Fuel Capacity 0 gallons
Number of Engines 2
Engine Type Turbine
Engine Code General Electric T700-GE-701C
Horse Power 1900
Rotorhead Fully articulated with elastomeric bearings
Number of rotorblades 4
Rotor Diameter 47.9 ft
Number of tail rotorblades 4
Tailrotor Diameter 9.2 ft

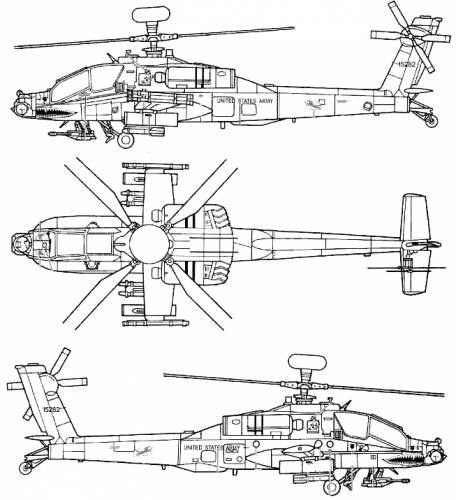

Blueprints & model
Manufacturer Website manufacturer..
