Home > Helicopters > Manufacturers > Bell > 412EP

Bell 412 EP

Choose unit system:

Specifications Comment this helicopter

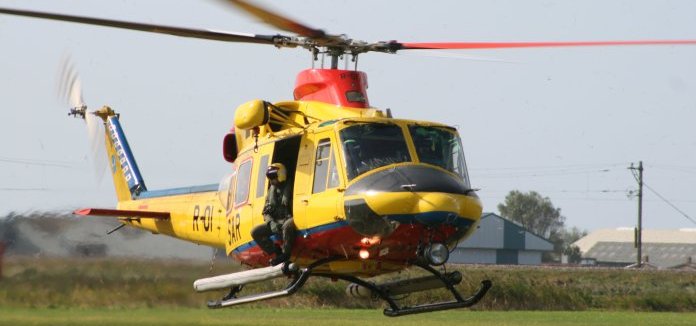

Picture 412EP
General
Manufacturer Bell
Type 412 EP
Introduced 1/1/1981
In production? Yes
Units produced 0
Price US $ (indication) 10,000,000.00
Dimensions
Overall Length 56.2 ft
Length 46.4 ft
Height 14.9 ft
Width 0 ft


Description The 412 model is a medium-weight, twin turbine helicopter derived from the 212, with the biggest difference being the rotorhead, which has four fiberglass blades.
eBay
Design features
  • Composite main rotor
  • Dual digital automatic flight control system (DDAFCS)

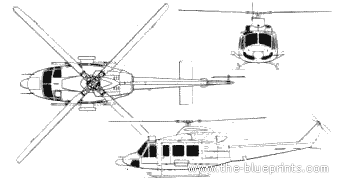

Blueprints & model Drawings & model of the 412 EP
Performance
Persons 15
Max. Range 455 mi
Cruise Speed 138 mph
Maximum Speed 153 mph
Maximum rate of Climb (per min) 1350 ft/min
HOGE ceiling 5200 ft
Service Ceiling 11450 ft
Gross Weight 11900 lb
Empty Weigt 6800 lb
Useful Load 5100 lb
Dynamic system
Fuel Capacity 330 gallons
Number of Engines 2
Engine Type Turbine
Engine Code Pratt & Whitney PT6T-3D Twin Pac
Horse Power 900
Rotorhead 4 blades, elastomeric bearings.
Number of rotorblades 4
Rotor Diameter 46 ft
Number of tail rotorblades 2
Tailrotor Diameter 8.6 ft
Manufacturer Website manufacturer..
