Bell 212 helicopter

- Advertisement -
Choose unit system:

Specifications Comment this helicopter

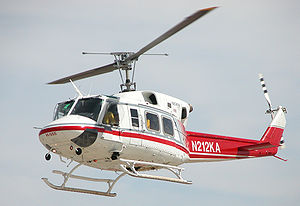

Picture 212
General
Manufacturer Bell
Type 212
Introduced 1/1/1968
In production? No
Units produced 900
Price US $ 2,850,000.00
Dimensions
Overall Length 57.3 ft
Length 42.4 ft
Height 14.9 ft
Width 8 ft


Description The Bell 212 Twin Huey is a medium-weight, two bladed, double turbine helicopter. It is a stretched development of the 205 model and uses two turbines (Twin Pac) to drive a common gearbox.
Advertisement
Design features
  • Twin pack turbine engine
  • All metal rotor blades
  • All metal fuselage
Description
The Bell 212 Twin Huey is a medium-weight, two bladed, double turbine helicopter. It is a stretched development of the 205 model and uses two turbines (Twin Pac) to drive a common gearbox.
- Advertisement -
Design features:
  • Twin pack turbine engine
  • All metal rotor blades
  • All metal fuselage
Performance
Persons 15
Max. Range 261 mi
Cruise Speed 115 mph
Max. Speed 138 mph
Max. rate of Climb 1745 ft/min
HOGE ceiling 0 ft
Service Ceiling 17400 ft
Gross Weight 11200 lb
Empty Weigt 6529 lb
Useful Load 4671 lb
Dynamic system
Fuel Capacity 215 gallons
Number of Engines 2
Engine Type Turbine
Engine Code Pratt & Whitney Canada PT6T-3D Twin Pac
Horse Power 900
Rotorhead Teetering
Number of rotorblades 2
Rotor Diameter 48.2 ft
Number of tail rotorblades 2
Tailrotor Diameter 8.5 ft

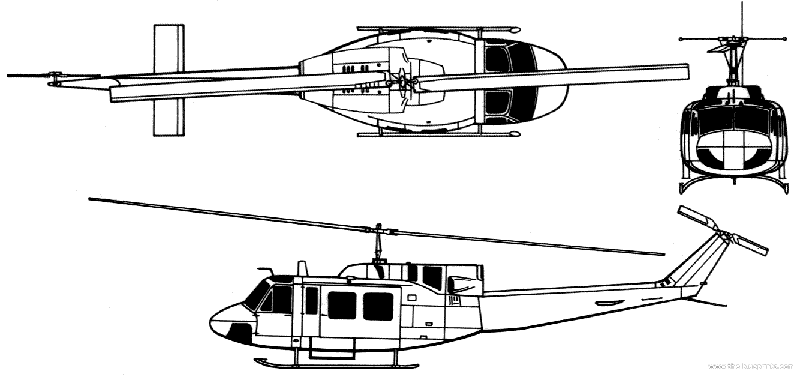

Blueprints & model
Manufacturer Website manufacturer..
