Bell 206 L4 Longranger helicopter

- Advertisement -
Choose unit system:

Specifications Comment this helicopter

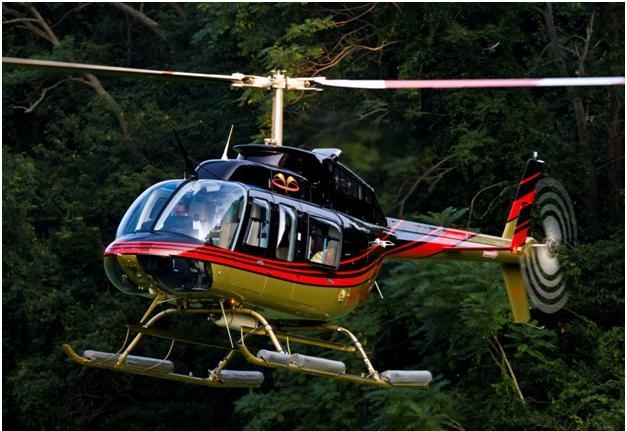

Picture 206L4_Longranger
General
Manufacturer Bell
Type 206 L4 Longranger
Introduced 1/1/1975
In production? Yes
Units produced 1700
Price US $ 2,300,000.00
Dimensions
Overall Length 42.4 ft
Length 34.6 ft
Height 0 ft
Width 0 ft


Description The 206 Longranger is a stretched version of the 206 Jetranger, and has room for seven seats (one pilot and six passengers). Similar to the Jetranger, the Longranger is also commercially successful, with more than 1700 units sold.
Advertisement
Design features
  • Noda-Matic cabin suspension system
  • Increased cabin length
  • Hydraulic powered controls
  • Skid type landing gear
Description
The 206 Longranger is a stretched version of the 206 Jetranger, and has room for seven seats (one pilot and six passengers). Similar to the Jetranger, the Longranger is also commercially successful, with more than 1700 units sold.
- Advertisement -
Design features:
  • Noda-Matic cabin suspension system
  • Increased cabin length
  • Hydraulic powered controls
  • Skid type landing gear
Performance
Persons 7
Max. Range 372 mi
Cruise Speed 0 mph
Max. Speed 0 mph
Max. rate of Climb 0 ft/min
HOGE ceiling 6500 ft
Service Ceiling 10000 ft
Gross Weight 4450 lb
Empty Weigt 2327 lb
Useful Load 2123 lb
Dynamic system
Fuel Capacity 110 gallons
Number of Engines 1
Engine Type Turbine
Engine Code RollsRoyce 250-C30P
Horse Power 726
Rotorhead
Number of rotorblades 2
Rotor Diameter 0 ft
Number of tail rotorblades 2
Tailrotor Diameter 5.4 ft

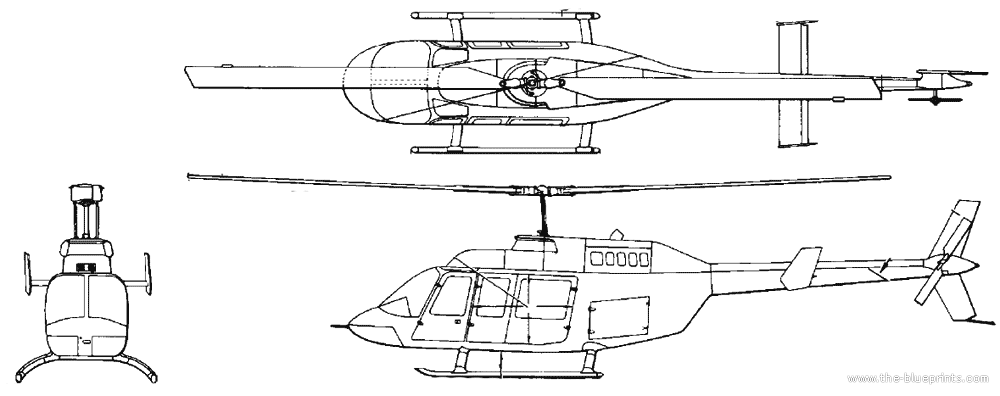

Blueprints & model
Manufacturer Website manufacturer..
