Bell 205-1A / UH-1H / Huey helicopter

- Advertisement -
Choose unit system:

Specifications Comment this helicopter

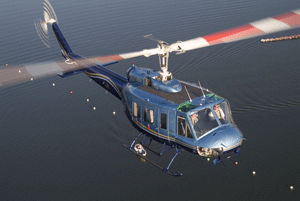

Picture 205-1A__UH-1H__Huey
General
Manufacturer Bell
Type 205-1A / UH-1H / Huey
Introduced 9/1/1967
In production? No
Units produced 10000
Price US $ 1,000,000.00
Dimensions
Overall Length 57.8 ft
Length 41.5 ft
Height 14.5 ft
Width 0 ft


Description The Bell 205, or UH-1H as the military call it, is a machine directly derived from Model 204 (UH-1), but with a much longer fuselage and a more powerful turbine engine. These two modifications proved to be so useful that over 5000 units were built. The production version of the UH-1H was introduced in 1967. Bell also sold a civilian version as Model 205.

Over the years, Bell made a lot of improvements to the machine, leading to many versions of Model 205. The UH-1H, or Huey, is well-known to a wider public due to its important role during the Vietnam War.
Advertisement
Design features
  • All metal rotor blades
  • Longer fuselage compared to model 204
  • Skid type landing gear
  • All metal fuselage
Description
The Bell 205, or UH-1H as the military call it, is a machine directly derived from Model 204 (UH-1), but with a much longer fuselage and a more powerful turbine engine. These two modifications proved to be so useful that over 5000 units were built. The production version of the UH-1H was introduced in 1967. Bell also sold a civilian version as Model 205.

Over the years, Bell made a lot of improvements to the machine, leading to many versions of Model 205. The UH-1H, or Huey, is well-known to a wider public due to its important role during the Vietnam War.
- Advertisement -
Design features:
  • All metal rotor blades
  • Longer fuselage compared to model 204
  • Skid type landing gear
  • All metal fuselage
Performance
Persons 14
Max. Range 345 mi
Cruise Speed 95 mph
Max. Speed 127 mph
Max. rate of Climb 1800 ft/min
HOGE ceiling 0 ft
Service Ceiling 15000 ft
Gross Weight 9500 lb
Empty Weigt 5210 lb
Useful Load 4290 lb
Dynamic system
Fuel Capacity 220 gallons
Number of Engines 1
Engine Type Turbine
Engine Code Lycoming T53-L13A
Horse Power 1400
Rotorhead Teetering
Number of rotorblades 2
Rotor Diameter 48 ft
Number of tail rotorblades 2
Tailrotor Diameter 8.5 ft

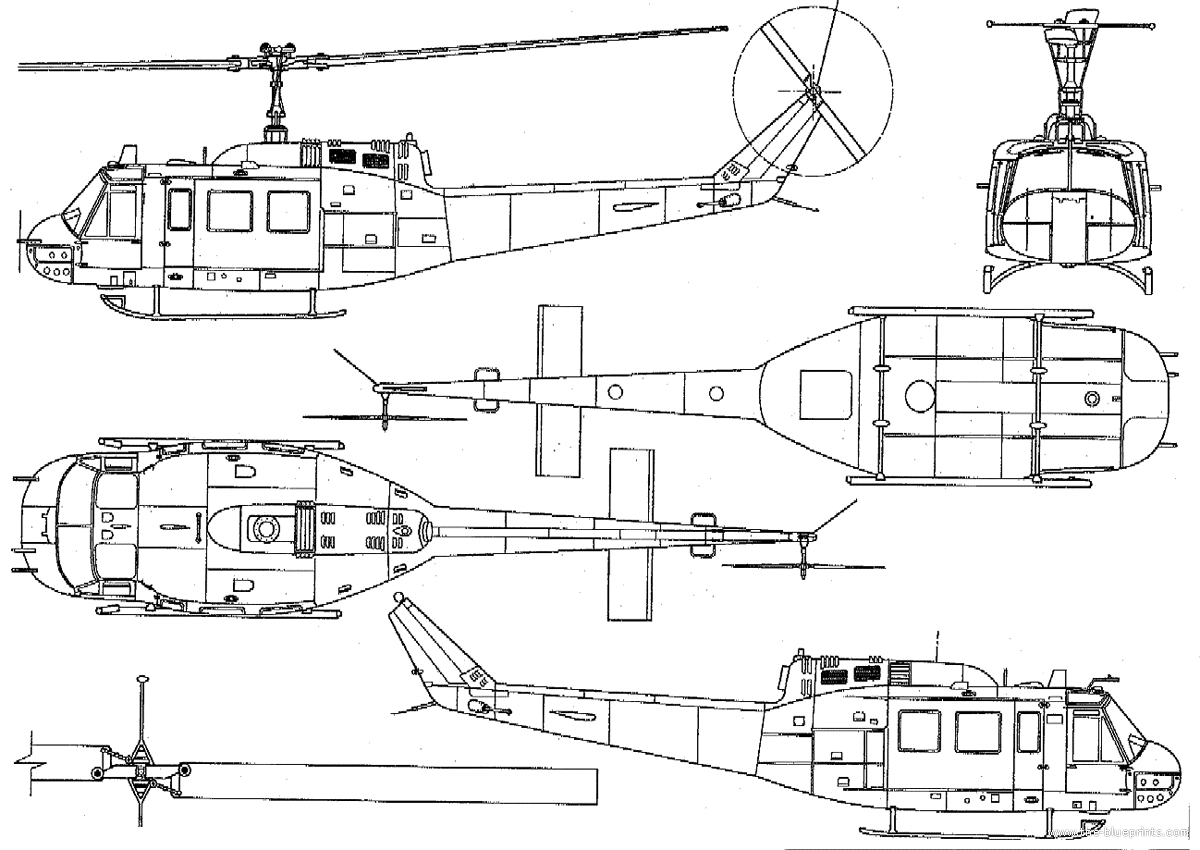

Blueprints & model
Manufacturer Website manufacturer..
