| Picture |
|
| Manufacturer |
American SportsCopter
|
| Type |
Ultrasport 496
|
| Introduced |
1/1/1995
|
| In production? |
Yes
|
| Units produced |
0
|
| Price US $ |
49,000.00
|
| Overall Length |
26.75 ft
|
| Length |
0 ft
|
| Height |
8.25 ft
|
| Width |
0 ft
|
| |
|
| |
|
| Description |

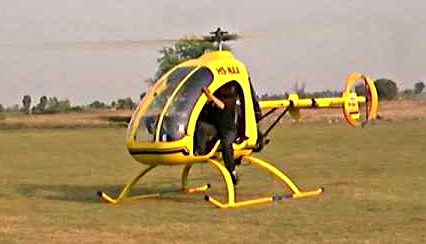

Experimental helicopter with two seats based on the Ultrasport 331. The Ultrasport 496 was designed to meet FAA regulations as an amateur built kit (FAA 21.191(g)). A 495 lbs empty weight ultra light trainer version is available by special order.
Update (2013): There is a turboshaft (Solar T62) retrofit available from LAE Helicopters (based in Cyprus).
|
| Advertisement |
|
| Design features |
- Composites rotor blades and fuselage
- Tubular tailboom
- Shaft-driven tail rotor
- Tail rotor enclosed in a circular shroud
|
Experimental helicopter with two seats based on the Ultrasport 331. The Ultrasport 496 was designed to meet FAA regulations as an amateur built kit (FAA 21.191(g)). A 495 lbs empty weight ultra light trainer version is available by special order.
Update (2013): There is a turboshaft (Solar T62) retrofit available from LAE Helicopters (based in Cyprus).
|
|
- Advertisement -
|
Design features:
- Composites rotor blades and fuselage
- Tubular tailboom
- Shaft-driven tail rotor
- Tail rotor enclosed in a circular shroud
|
| Persons |
2
|
| Max. Range |
200 mi
|
| Cruise Speed |
69 mph
|
| Max. Speed |
103 mph
|
| Max. rate of Climb |
0 ft/min
|
| HOGE ceiling |
0 ft
|
| Service Ceiling |
0 ft
|
| Gross Weight |
1130 lb
|
| Empty Weigt |
600 lb
|
| Useful Load |
530 lb
|
| Fuel Capacity |
18 gallons
|
| Number of Engines |
1
|
| Engine Type |
Piston, 4 cylinder, Fuel injected
|
| Engine Code |
Hirth H-30ES
|
| Horse Power |
102
|
| Rotorhead |
|
| Number of rotorblades |
2
|
| Rotor Diameter |
23 ft
|
| Number of tail rotorblades |
4
|
| Tailrotor Diameter |
2.6 ft
|
|
