American SportsCopter Ultrasport 254 helicopter

- Advertisement -
Choose unit system:

Specifications Comment this helicopter

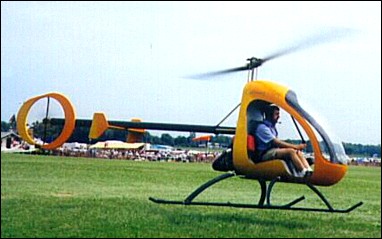

Picture Ultrasport254
General
Manufacturer American SportsCopter
Type Ultrasport 254
Introduced 1/1/1993
In production? Yes
Units produced 0
Price US $ 34,000.00
Dimensions
Overall Length 0 ft
Length 19.16 ft
Height 7.83 ft
Width 8 ft


Description With an empty weight of less than 254 pounds, the Ultrasport 254 is a one seater ultralight helicopter which conforms to the FAA’s ultralight regulations, in particular FAR Part 103. The design is based on a composite fuselage instead of the more traditional solution of a metal tube frame. It also uses a shrouded tail rotor to improve safety. It comes with a pair of infinite life composite main rotor blades and two composite tail rotor blades.

The Ultrasport 254 is only marketed and sold in the USA and other countries where true ultralight helicopters are regulated. The machines are manufactured in Taiwan.
Advertisement
Design features
  • Composite fuselage
  • Tubular tailboom
  • Tail rotor enclosed in a circular shroud
  • Shaft-driven tail rotor
  • Skid type landing gear
  • Roof-mounted cyclic control
Description
With an empty weight of less than 254 pounds, the Ultrasport 254 is a one seater ultralight helicopter which conforms to the FAA’s ultralight regulations, in particular FAR Part 103. The design is based on a composite fuselage instead of the more traditional solution of a metal tube frame. It also uses a shrouded tail rotor to improve safety. It comes with a pair of infinite life composite main rotor blades and two composite tail rotor blades.

The Ultrasport 254 is only marketed and sold in the USA and other countries where true ultralight helicopters are regulated. The machines are manufactured in Taiwan.
- Advertisement -
Design features:
  • Composite fuselage
  • Tubular tailboom
  • Tail rotor enclosed in a circular shroud
  • Shaft-driven tail rotor
  • Skid type landing gear
  • Roof-mounted cyclic control
Performance
Persons 1
Max. Range 75 mi
Cruise Speed 63 mph
Max. Speed 63 mph
Max. rate of Climb 0 ft/min
HOGE ceiling 0 ft
Service Ceiling 0 ft
Gross Weight 575 lb
Empty Weigt 252 lb
Useful Load 323 lb
Dynamic system
Fuel Capacity 5 gallons
Number of Engines 1
Engine Type Piston, 2 cylinder, caburator
Engine Code Hirth 2703
Horse Power 55
Rotorhead
Number of rotorblades 2
Rotor Diameter 21 ft
Number of tail rotorblades 4
Tailrotor Diameter 2.6 ft
Blueprints & model
Manufacturer Website manufacturer..
