AgustaWestland AW109 Power helicopter

- Advertisement -
Choose unit system:

Specifications Comment this helicopter
Picture AW109_Power
General
Manufacturer AgustaWestland
Type AW109 Power
Introduced 1/1/1976
In production? Yes
Units produced 550
Price US $ 6,000,000.00
Dimensions
Overall Length 42.78 ft
Length 37.59 ft
Height 11.48 ft
Width 5.31 ft


Description The story of the successful AW109 product line goes back to the mid-1960s, when Agusta decided to start with the development of the A109A medium weight helicopter. Initially, the design used a single Turbomeca Astouzou turboshaft engine. However, with the 109C 'Hirundo' version, this engine was replaced by two Allison 250-C14 turbine engines for safety reasons. In this model, Agusta also changed the fuselage, introducing a sleek design with Italian design qualities.

The A109 is the first helicopter developed solely by an Italian company. The A109C received its type certification in 1975.

The AW109 (as it is called after the Agusta and Westland merger) is a versatile machine with good performance figures, and is sold in both civilian and military versions. Some highlights are the Power version with two Turbomeca Arrius 2K1 or two Pratt & Whitney PW206C engines and the Grand versions with their longer cabin.
Advertisement
Design features
  • Digital glass cockpit
  • Retractable tri-cycle landing gear
  • Sleek design
Description
The story of the successful AW109 product line goes back to the mid-1960s, when Agusta decided to start with the development of the A109A medium weight helicopter. Initially, the design used a single Turbomeca Astouzou turboshaft engine. However, with the 109C 'Hirundo' version, this engine was replaced by two Allison 250-C14 turbine engines for safety reasons. In this model, Agusta also changed the fuselage, introducing a sleek design with Italian design qualities.

The A109 is the first helicopter developed solely by an Italian company. The A109C received its type certification in 1975.

The AW109 (as it is called after the Agusta and Westland merger) is a versatile machine with good performance figures, and is sold in both civilian and military versions. Some highlights are the Power version with two Turbomeca Arrius 2K1 or two Pratt & Whitney PW206C engines and the Grand versions with their longer cabin.
- Advertisement -
Design features:
  • Digital glass cockpit
  • Retractable tri-cycle landing gear
  • Sleek design
Performance
Persons 8
Max. Range 592 mi
Cruise Speed 140 mph
Max. Speed 153 mph
Max. rate of Climb 1930 ft/min
HOGE ceiling 11800 ft
Service Ceiling 19600 ft
Gross Weight 6283 lb
Empty Weigt 3505 lb
Useful Load 2778 lb
Dynamic system
Fuel Capacity 221 gallons
Number of Engines 2
Engine Type Turbine
Engine Code Pratt & Whitney PW206C
Horse Power 640
Rotorhead Fully articulated with elastomeric bearings
Number of rotorblades 4
Rotor Diameter 36.09 ft
Number of tail rotorblades 2
Tailrotor Diameter 6.36 ft

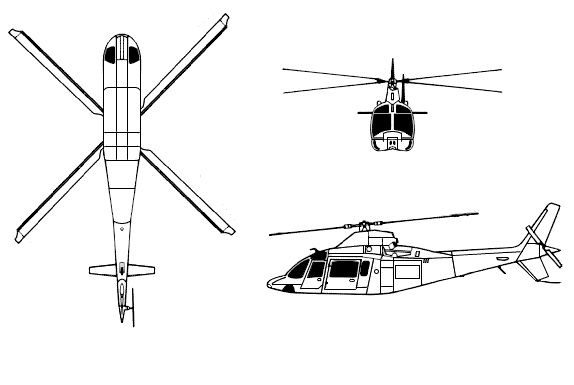

Blueprints & model
Manufacturer Website manufacturer..
