Aerospatiale SA 330 (J) Puma helicopter

- Advertisement -
Choose unit system:

Specifications Comment this helicopter

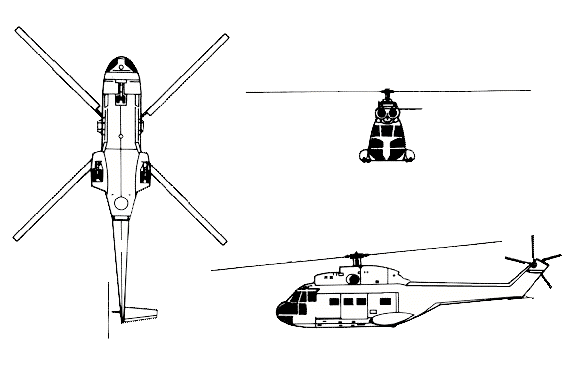

Picture SA330(J)_Puma
General
Manufacturer Aerospatiale
Type SA 330 (J) Puma
Introduced 1/1/1968
In production? No
Units produced 697
Price US $ 0.00
Dimensions
Overall Length 59.5 ft
Length 46.1 ft
Height 16.9 ft
Width 0 ft


Description

The SA 330 Puma is a medium transport and utility helicopter originally built by Sud Aviation of France, but later manufactured by Aérospatiale.

The SA 330 Puma served as the precursor to two internationally famous helicopters: the AS332 Super Puma and the Denel Rooivalk (red falcon).

The Puma was primarily used for military purposes and has seen combat in a wide number of theatres across the globe. These included the Gulf War, the South African Border War, the Iraq War, the Falklands War and more.

The Puma was first introduced in 1968 after the project began in 1963. Its design was based on requirements from the French Army for an all-weather medium transport.

The Puma is powered by various engines depending on the variant. The 330J uses two 1575 shaft horsepower Turboméca Turmo IVC turboshafts. The 330G and 330F variants use two 1435 shaft horsepower Turboméca Turmo IIIC4s.

The cabin has room for two pilots and one jump seat. Passenger configurations carried from eight seats to twelve for executive layouts. In the airline arrangement it can carry up to twenty passengers.

The Puma is notable for being the first all-weather certified helicopter, which included icing conditions. This was largely thanks to its advanced (for the time) weather radar. It received this certification in 1979.

While the majority of Pumas were sold to the military, there are a significant number in civilian use.

In total, across all variants, there have been 696 Pumas sold. While it has now been supplanted by the Super Puma, the original Puma remains in service and is still in limited production in Romania by IAR, mostly for the Romanian military.

Advertisement
Design features
  • Five blade anti torque rotor
  • Extruded aluminum blades
Description

The SA 330 Puma is a medium transport and utility helicopter originally built by Sud Aviation of France, but later manufactured by Aérospatiale.

The SA 330 Puma served as the precursor to two internationally famous helicopters: the AS332 Super Puma and the Denel Rooivalk (red falcon).

The Puma was primarily used for military purposes and has seen combat in a wide number of theatres across the globe. These included the Gulf War, the South African Border War, the Iraq War, the Falklands War and more.

The Puma was first introduced in 1968 after the project began in 1963. Its design was based on requirements from the French Army for an all-weather medium transport.

The Puma is powered by various engines depending on the variant. The 330J uses two 1575 shaft horsepower Turboméca Turmo IVC turboshafts. The 330G and 330F variants use two 1435 shaft horsepower Turboméca Turmo IIIC4s.

The cabin has room for two pilots and one jump seat. Passenger configurations carried from eight seats to twelve for executive layouts. In the airline arrangement it can carry up to twenty passengers.

The Puma is notable for being the first all-weather certified helicopter, which included icing conditions. This was largely thanks to its advanced (for the time) weather radar. It received this certification in 1979.

While the majority of Pumas were sold to the military, there are a significant number in civilian use.

In total, across all variants, there have been 696 Pumas sold. While it has now been supplanted by the Super Puma, the original Puma remains in service and is still in limited production in Romania by IAR, mostly for the Romanian military.

- Advertisement -
Design features:
  • Five blade anti torque rotor
  • Extruded aluminum blades
Performance
Persons 22
Max. Range 484 mi
Cruise Speed 154 mph
Max. Speed 160 mph
Max. rate of Climb 1400 ft/min
HOGE ceiling 0 ft
Service Ceiling 15750 ft
Gross Weight 16314 lb
Empty Weigt 8303 lb
Useful Load 8011 lb
Dynamic system
Fuel Capacity 0 gallons
Number of Engines 2
Engine Type Turbine
Engine Code Turbomeca Turmo IVC
Horse Power 1556
Rotorhead Fully articulated
Number of rotorblades 4
Rotor Diameter 49.2 ft
Number of tail rotorblades 5
Tailrotor Diameter 10 ft
Blueprints & model
Manufacturer Website manufacturer..
