Aerospatiale SA 321 (G) Super Frelon helicopter

- Advertisement -
Choose unit system:

Specifications Comment this helicopter

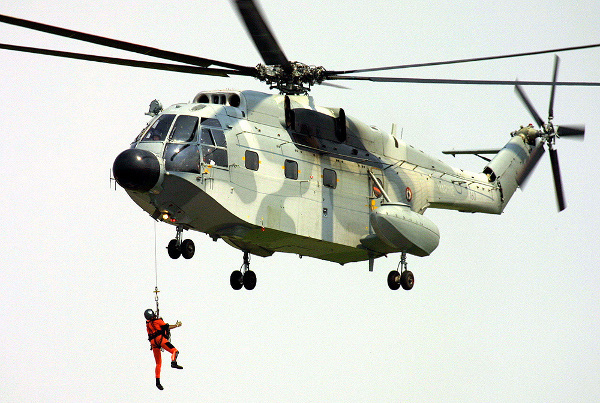

Picture SA321(G)_Super_Frelon
General
Manufacturer Aerospatiale
Type SA 321 (G) Super Frelon
Introduced 3/1/1966
In production? No
Units produced 106
Price US $ 0.00
Dimensions
Overall Length 75.6 ft
Length 65.9 ft
Height 22.2 ft
Width 17 ft


Description

The Super Frelon (SA 321) is a heavy transport helicopter originally manufactured by Sud Aviation, and later by Aerospatiale. There is also a Chinese version of this helicopter known as the Z-8.

The helicopter first took flight in 1962 and was introduced four years later in 1966.

The Super Frelon was developed as an upgraded and improved version of the original SE 3200 Frelon. As with its predecessor, the Super Frelon was made to serve as a heavy military transport.

The SA 321G is of course derived from the standard variant. This model was designed as an anti-submarine helicopter for the French Navy. The 321G is powered by three Turbomeca IIIC-6 turboshaft engines.

It also has a boat-hull type fuselage and glass cockpit, with a specialized six-blade main rotor and a five-blade anti-torque rotor. As a navy variant the 321G has a folding tailboom, to allow for easy stowing. The ASW and SAR sub-variants feature a hoist with winch and scoop for rescue.

The 321G is also equipped with a laser designator system and a night vision system. Both appropriate tools for its naval role.

The 321G can do damage more directly with its 20mm cannon, four homing torpedoes and two anti-ship missiles. Enough to make most vessels nervous. That’s not all however, the 321G also packs eight optional 250KG mines for mine-laying missions. The Chinese models have been further armed with special pylons to hold ET52 ASW torpedoes.

The 321G is not only equipped with a variety of attack options, but also substantive ways to find targets. Two radomes provide surface-search ability and the sub-variants also have choices of various advanced navigation radars.

In total, there were 110 SA 321 helicopters built. Of these 26 were 321G naval units.

Advertisement
Design features
  • Watertight boat-type hull
  • Rear-loading ramp
  • Stabilising floats
  • Automatic rotor blade fold back mechanism
  • Three turbine engines
Description

The Super Frelon (SA 321) is a heavy transport helicopter originally manufactured by Sud Aviation, and later by Aerospatiale. There is also a Chinese version of this helicopter known as the Z-8.

The helicopter first took flight in 1962 and was introduced four years later in 1966.

The Super Frelon was developed as an upgraded and improved version of the original SE 3200 Frelon. As with its predecessor, the Super Frelon was made to serve as a heavy military transport.

The SA 321G is of course derived from the standard variant. This model was designed as an anti-submarine helicopter for the French Navy. The 321G is powered by three Turbomeca IIIC-6 turboshaft engines.

It also has a boat-hull type fuselage and glass cockpit, with a specialized six-blade main rotor and a five-blade anti-torque rotor. As a navy variant the 321G has a folding tailboom, to allow for easy stowing. The ASW and SAR sub-variants feature a hoist with winch and scoop for rescue.

The 321G is also equipped with a laser designator system and a night vision system. Both appropriate tools for its naval role.

The 321G can do damage more directly with its 20mm cannon, four homing torpedoes and two anti-ship missiles. Enough to make most vessels nervous. That’s not all however, the 321G also packs eight optional 250KG mines for mine-laying missions. The Chinese models have been further armed with special pylons to hold ET52 ASW torpedoes.

The 321G is not only equipped with a variety of attack options, but also substantive ways to find targets. Two radomes provide surface-search ability and the sub-variants also have choices of various advanced navigation radars.

In total, there were 110 SA 321 helicopters built. Of these 26 were 321G naval units.

- Advertisement -
Design features:
  • Watertight boat-type hull
  • Rear-loading ramp
  • Stabilising floats
  • Automatic rotor blade fold back mechanism
  • Three turbine engines
Performance
Persons 29
Max. Range 634 mi
Cruise Speed 131 mph
Max. Speed 155 mph
Max. rate of Climb 1312 ft/min
HOGE ceiling 0 ft
Service Ceiling 10170 ft
Gross Weight 28660 lb
Empty Weigt 15130 lb
Useful Load 13530 lb
Dynamic system
Fuel Capacity 0 gallons
Number of Engines 3
Engine Type Turbine
Engine Code Turbomeca Turmo IIIC6
Horse Power 1529
Rotorhead Fully articulated
Number of rotorblades 6
Rotor Diameter 62 ft
Number of tail rotorblades 5
Tailrotor Diameter 16.5 ft

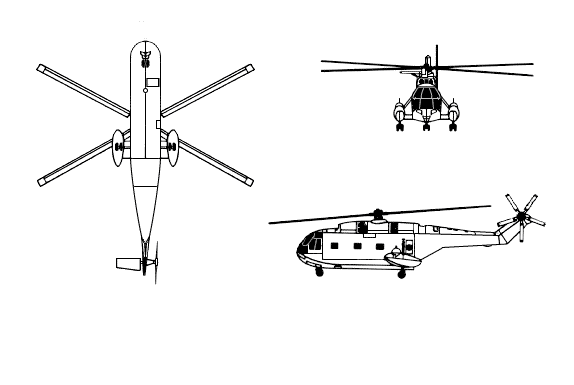

Blueprints & model
Manufacturer Website manufacturer..
