Aerospatiale SA316 Alouette III helicopter

- Advertisement -
Choose unit system:

Specifications Comment this helicopter

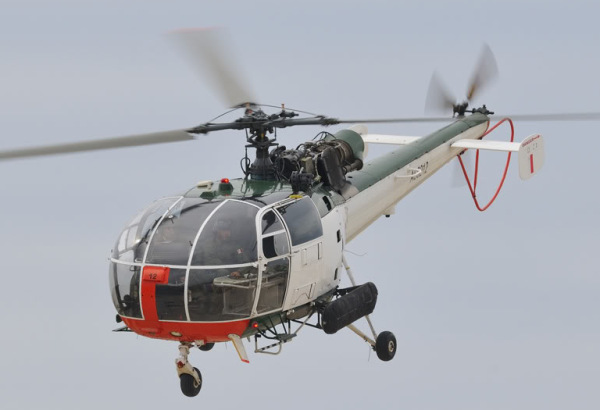

Picture SA316_Alouette_III
General
Manufacturer Aerospatiale
Type SA316 Alouette III
Introduced 6/1/1960
In production? No
Units produced 2000
Price US $ 300,000.00
Dimensions
Overall Length 42.3 ft
Length 32.9 ft
Height 9.8 ft
Width 8.5 ft


Description A light weight, single turbine, multi purpose helicopter, introduced in 1960. It is the successor to the Alouette II with its larger cabine and having more seating.
Advertisement
Design features
  • Tri-cycle non retractable landing gear
  • Excellent high altitude performance
  • Enclosed tailboom
  • Enlarged cabin
Description
A light weight, single turbine, multi purpose helicopter, introduced in 1960. It is the successor to the Alouette II with its larger cabine and having more seating.
- Advertisement -
Design features:
  • Tri-cycle non retractable landing gear
  • Excellent high altitude performance
  • Enclosed tailboom
  • Enlarged cabin
Performance
Persons 7
Max. Range 307 mi
Cruise Speed 110 mph
Max. Speed 130 mph
Max. rate of Climb 850 ft/min
HOGE ceiling 4920 ft
Service Ceiling 10500 ft
Gross Weight 4850 lb
Empty Weigt 2712 lb
Useful Load 2138 lb
Dynamic system
Fuel Capacity 150 gallons
Number of Engines 1
Engine Type Turbine
Engine Code Turbomeca Artouste IIIB
Horse Power 550
Rotorhead Fully articulated
Number of rotorblades 3
Rotor Diameter 36.2 ft
Number of tail rotorblades 3
Tailrotor Diameter 6.3 ft

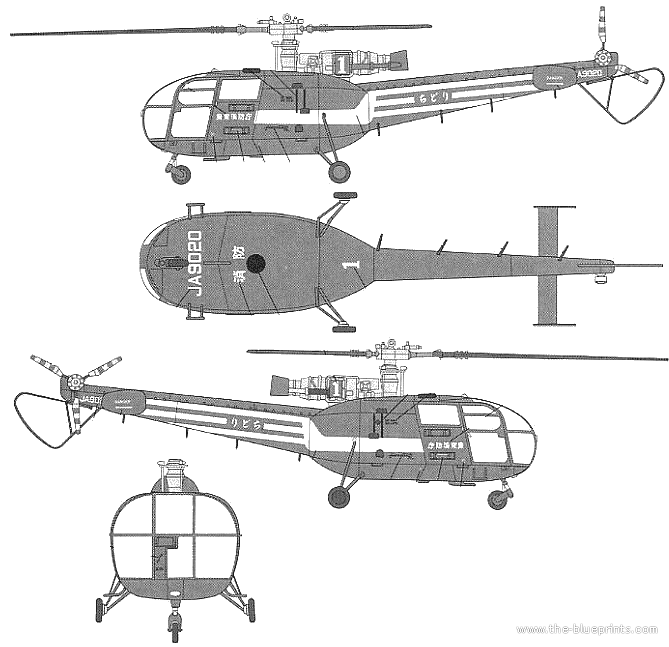

Blueprints & model
Manufacturer Website manufacturer..
