When the rotordisc changes attitude, the fuselage will follow this to some degree. The extent to which this happens is known as control power. Control power depends upon the rotorhead (type), and works in 2 ways, both of which are reliant on transferring moments from the rotordisc to the shaft. The first transfers the moments that are involved with blade flapping to the shaft. This is only the case with hingeless ('rigid') rotorheads. The second mechanism transfers moments because of a tilted rotordisc. In these circumstances, the disc imposes a moment over the arm that exists if the flapping hinge offset is not at zero. So, this mechanism is not effective with a zero offset rotorhead. Note that in such a case, the first mechanism is also not in effect.

When rotorhead types are related to control power, we can state that a zero offset head doesn't possess any control power, whereas an articulated head possesses an intermediate level thereof, and a hingeless system has strong control power.

The effect of control power is a fuselage that (tries to) follow the disc attitude. For example, a forward tilted disc will lead to a helicopter with a fuselage that is also tilted forwards. A consequence of this rotordisc following behaviour is that the rotors stay clear of the fuselage, and the blades always have sufficient room to flap up and down. Therefore, a rotorhead with a lot of control power can be equipped with a short shaft (see picture, the Westland Lynx on the left). A zero offset rotorhead (for example, a teetering rotorhead), which possesses no control power whatsoever, will need a long shaft to provide sufficient blade room for the blades to flap down (the red Robinson R44).

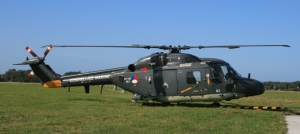

Helicopter with short shaft

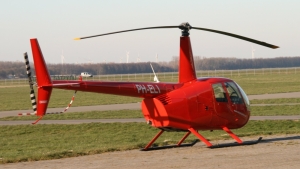

Helicopter with long shaft
